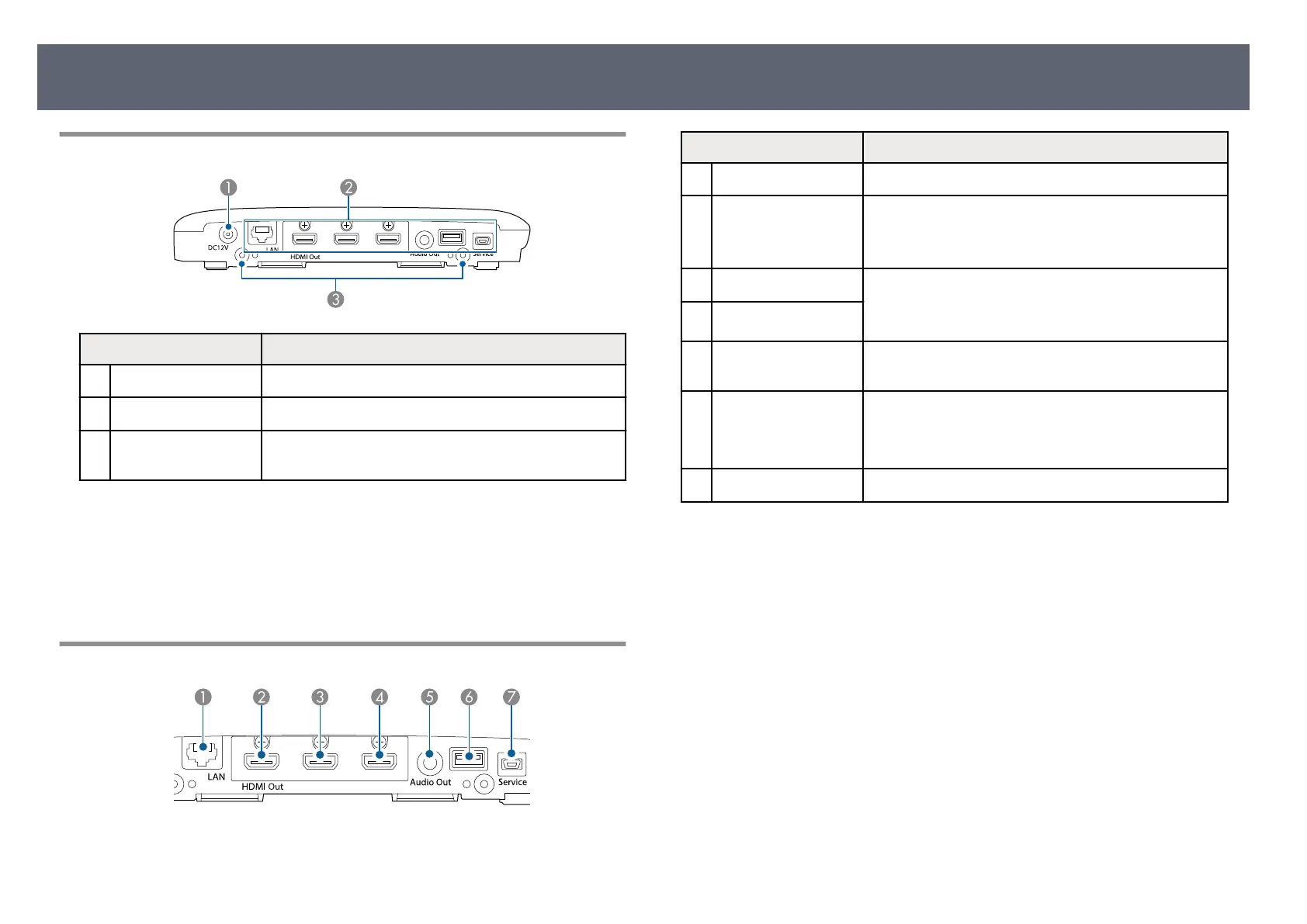

Base Unit Parts - Rear
Name Function
A
DC 12V port Connects the AC adapter.
B
Interface Connects cables for external devices.
C
Screw holes for the
mo
unt
Screw holes to x the base unit and the mount in place.
g
Related Links
•
"I
nstalling a Security Cable" p.68
•
"Base Unit Parts - Interface Ports" p.17
•
"Installing the Base Unit on a Wall" p.25
•
"Turning On the Base Unit" p.34
Base Unit Parts - Interface Ports
Name Function
A
LAN port Connects a LAN cable to connect to a network.
B
HDMI Out port Outputs video/audio signals to a projector or an external
monitor.
is port is compatible with HDCP2.3.
C
HDMI1 port Inputs video signals from HDMI compatible video
eq
uipment and computers.
is port is compatible with HDCP2.3.
D
HDMI2 port
E
Audio Out port Outputs audio from the current input source to an
exter
nal speaker.
F
USB-A port Use to connect the optional document camera.
Us
e to perform pairing for the wireless transmitter.
Use for batch settings and rmware update.
G
Service port is port is used for batch settings and rmware update.
g
Related Links
•
"C
onnecting the Base Unit to an External Display Device" p.27
•
"Connecting Input Sources to the Base Unit" p.28
•
"Sharing Computer Screen Using Wireless Transmitter" p.40
•
"Sharing Screens Using Epson iProjection (Wired Connection)" p.43
•
"Sharing Screens Using Epson iProjection (Wireless Connection)" p.46
•
"Copying Menu Settings Between Base Units (Batch Setup)" p.95
•
"Updating the Firmware" p.100
Product Parts and Functions
17
