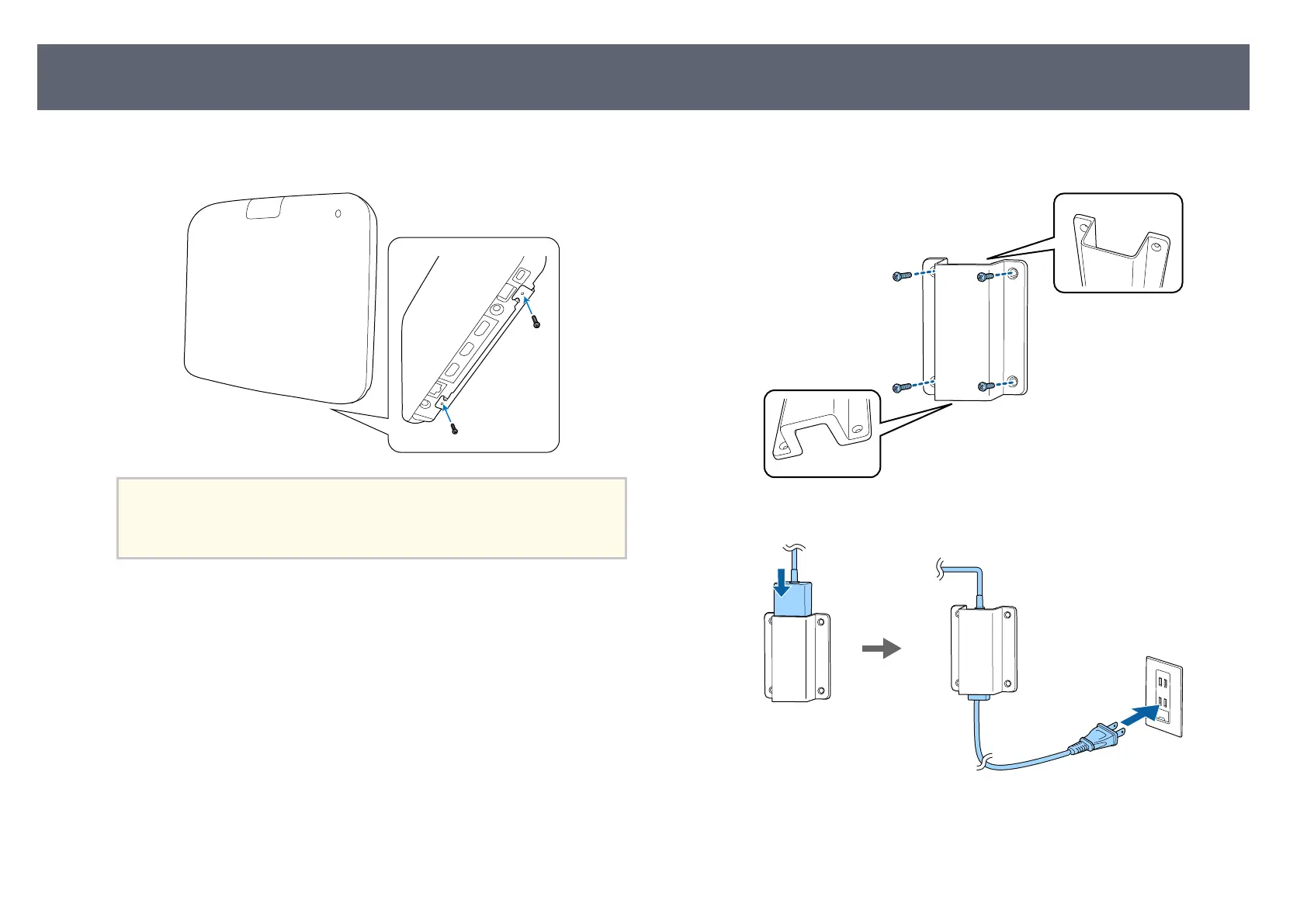

c
Tigh
ten the screws at the botto
m of the moun
t to secure the base unit to
th
e moun
t.
Att
ention
Tig
hten the scr
ews whi
le holding the base unit so that it does not
s
hi
or
become loose.
d
Sec
ure the A
C adapter h
older to the wall using commer
cially available M4
scr
ews (x4).
e
Place the A
C adapter in the holder and co
nnect it to the power o
utlet.
Base Unit Placemen
t
26
25
27
Table of Contents
Default Chapter
2
Table of Contents
2
Notations Used in this Guide
5
Using the Manual to Search for Information
7
Searching by Keyword
7
Jumping Directly from Bookmarks
7
Printing Only the Pages You Need
7
Getting the Latest Version of the Documents
8
Introducing the Product
9
Safety Instructions
10
Notes on Handling and Storage
12
Product Features
13
Easy Setup and Operation
13
Various Input Sources for the Base Unit
14
Product Parts and Functions
16
Base Unit Parts - Front/Top
16
Base Unit Parts - Base
16
Base Unit Parts - Rear
17
Base Unit Parts - Interface Ports
17
Base Unit Parts - Remote Control
18
Wireless Transmitter Parts
19
Setting up the Product
20
Pairing the Wireless Transmitter
21
Reasons for Pairing
21
Pairing Using a Base Unit
21
Pairing on a Computer
22
Pairing Using a Projector
22
Base Unit Placement
23
Base Unit Installation Examples
23
Related Links
23
Precautions on Installation
25
Installing the Base Unit on a Wall
25
Connecting the Base Unit to an External Display Device
27
Preparing an External Display Device
27
Specifications for the External Display Device
27
Connecting to External Display Device
27
Connecting Input Sources to the Base Unit
28
Connecting to a Computer
28
Connecting to Video Sources
28
Connecting to a Document Camera
29
Connecting to External Speakers
29
Connecting the Base Unit to a Wired Network
30
Installing Batteries in the Remote Control
31
Remote Control Operation
32
Using Basic Features
33
Turning on the Base Unit
34
Related Links
34
Home Screen
35
Turning off the Base Unit
36
Setting the Date and Time
37
Selecting the Language for the Menus
39
Sharing Computer Screen Using Wireless Transmitter
40
Starting Computer Screen Sharing
40
Epson Wireless Presentation System Requirements
41
Switching between Maximize Screen and Split Display
42
Ending Computer Screen Sharing
42
Sharing Screens Using Epson Iprojection (Wired Connection)
43
Selecting Wired Network Settings
43
Sharing Screens Using Epson Iprojection (Wireless Connection)
46
Wireless Network Display Connection Methods
46
Selecting Wireless Network Settings Manually
47
Selecting Wireless Network Settings in Windows
49
Selecting Wireless Network Settings in Mac
49
Setting up Wireless Network Security for Simple AP Mode
50
Setting up Wireless Network Security for Infrastructure Mode
50
Supported Client and CA Certificates
52
Using a QR Code to Connect a Mobile Device
52
Sharing Mobile Device Screen Using Screen Mirroring
53
Selecting Screen Mirroring Settings
53
Connecting Using Screen Mirroring with the Miracast Function
55
Connecting Using Screen Mirroring in Windows 10
55
Connecting Using Screen Mirroring in Windows 8.1
56
Display Order of Screens from Multiple Devices
58
Selecting an Image Source
59
Adjusting Base Unit Features
60
Displaying Multiple Images Simultaneously
61
Unsupported Input Source Combinations for Split Screen
62
Split Screen Restrictions
62
Base Unit Identification System for Multiple Device Control
64
Setting the Base Unit ID
64
Selecting the Base Unit You Want to Operate
64
Base Unit Security Features
66
Password Security Types
66
Setting a Password
66
Selecting Password Security Types
67
Entering a Password to Use the Base Unit
67
Installing a Security Cable
68
Secure HTTP
69
Importing a Web Server Certificate Using the Menus
69
Supported Web Server Certificates
70
Monitoring and Controlling the Base Unit
71
Controlling a Networked Base Unit Using a Web Browser
72
Web Control Options
73
Registering Digital Certificates from a Web Browser
76
Setting Event Schedules
78
Adjusting the Menu Settings
80
Using the Base Unit's Menus
81
Using the Displayed Keyboard
82
Available Text Using the Displayed Keyboard
82
Related Links
82
Input Signal Settings - Signal I/O Menu
83
Base Unit Installation Settings - Installation Menu
84
Base Unit Display Settings - Display Menu
85
Base Unit Feature Settings - Operation Menu
86
Base Unit Administration Settings - Management Menu
87
Base Unit Network Settings - Network Menu
88
Network Menu - Network Settings Menu
89
Network Menu - Wireless LAN Menu
90
Network Menu - Wired LAN Menu
91
Network Menu - Base Unit Control Menu
92
Network Menu - Network Projection Settings
92
Base Unit Initial Settings and Reset Options - Initial/All Settings Menu
94
Copying Menu Settings between Base Units (Batch Setup)
95
Transferring Settings from a USB Flash Drive
95
Transferring Settings from a Computer
96
Batch Setup Error Notification
97
Maintaining the Base Unit
98
Cleaning the Base Unit Case
99
Updating the Firmware
100
Updating Firmware Using a USB Storage Device
100
Updating Firmware Using a Computer and USB Cable
101
Solving Problems
103
Projection Problems
104
Base Unit Indicator Status
105
Wireless Transmitter Indicator Status
106
Solving Image or Sound Problems
107
Solutions When no Image Appears
107
Displaying from a Windows Laptop
107
Displaying from a Mac Laptop
107
Solutions When Only a Partial Image Appears
108
Solutions When the Image Contains Noise or Static
108
Solutions When the Image Brightness or Colors Are Incorrect
108
Solutions to Sound Problems
108
Solving Image or Sound Problems
108
Solving Base Unit or Remote Control Operation Problems
110
Solutions to Base Unit Power or Shut-Off Problems
110
Solutions to Problems with the Remote Control
110
Solutions to Password Problems
111
Solution When "The Battery that Saves Your Clock Settings Is Running Low" Message Appears
111
Solutions When the External Display Device Turns on Unexpectedly
111
Solving Base Unit or Remote Control Operation Problems
111
Solving Network Problems
112
Solutions When Wireless Authentication Fails
112
Solutions When You Cannot Access the Base Unit through the Web
112
Solutions When the Image Contains Static During Network Display
112
Solutions When You Cannot Connect Using Screen Mirroring
113
Solutions When You Cannot Use Two Screen Mirroring Sources
113
Solutions When the Image or Sound Contains Static During Screen Mirroring Connection
113
Solving Network Problems
113
Solving Wireless Transmitter Pairing Problems
114
Solutions When You Cannot Pair Using the Projector
114
Solutions When You Cannot Share Screens Using the Paired Wireless Transmitter
114
Solutions When HDMI Link Does Not Function
115
Appendix
116
Optional Accessories and Replacement Parts
117
For Wireless Connection
117
External Devices
117
Supported Monitor Display Resolutions
118
Product Specifications
121
Connector Specifications
121
External Dimensions
123
List of Safety Symbols and Instructions
124
Notices
126
FCC Compliance Statement
126
Indication of the Manufacturer and the Importer in Accordance with Requirements of EU Directive
127
Indication of the Manufacturer and the Importer in Accordance with Requirements of United Kingdom Directive
127
Restriction of Use
127
Operating System References
127
Trademarks
128
Copyright Notice
128
Copyright Attribution
128
