4.2.4 Removing the HP Sensor
1. Remove the printer cover, ribbon cartridge, front edge guide and front
cover. (Refer to Section 4.2.1.)
2. Disconnect the connector cable for the HP sensor.
3. Remove the HP sensor by pushing up and releasing the 2 clips at the
bottom of the HP sensor from the front paper entrance.
CHECK POINT
9
Notice the direction for mounting the HP sensor.
Refer to the following figure.
2 C lips securing the H P sensor

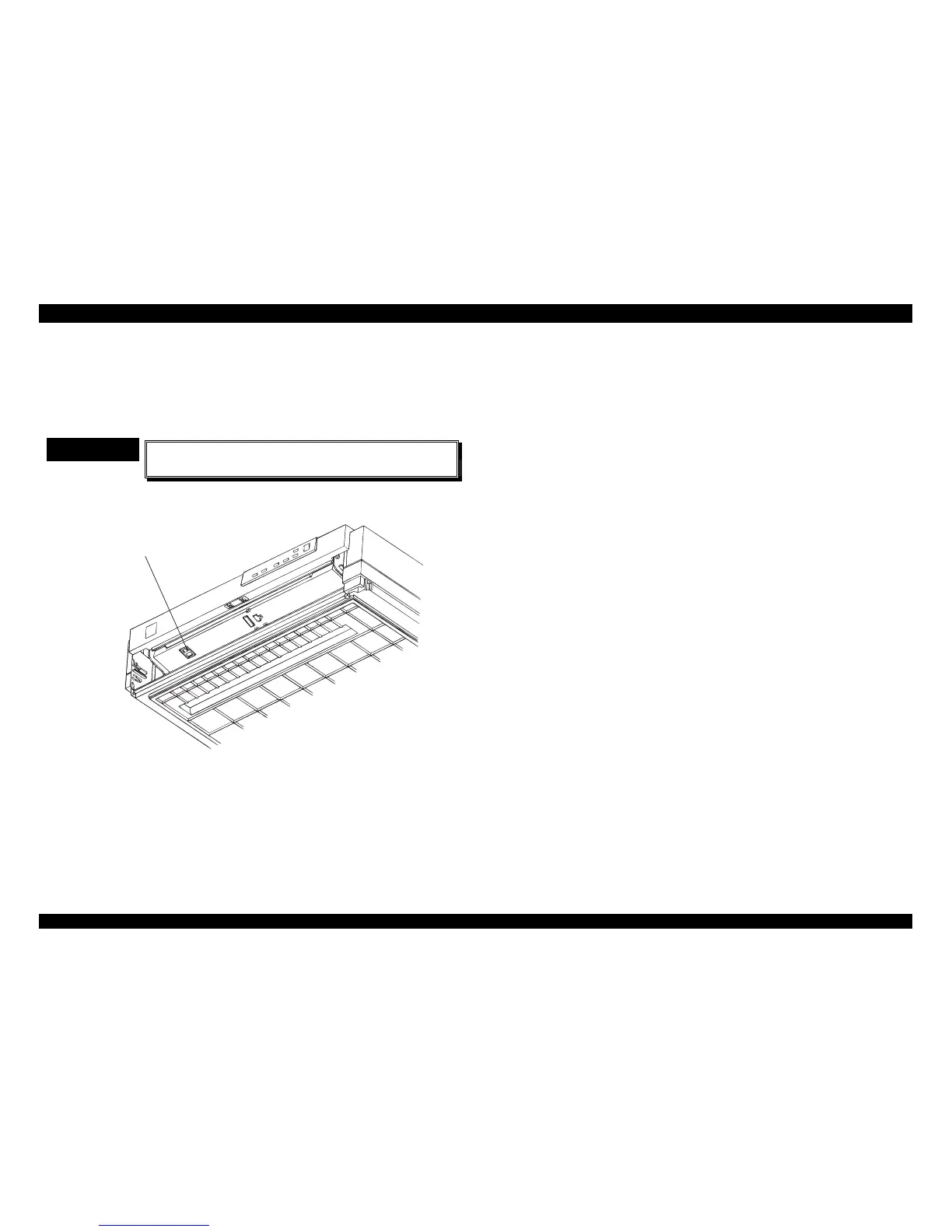

Figure 4-7. Removing the HP Sensor
