Epson FX-2180 Service Manual

FX-2180 Service Manual Disassembly and Assembly
Rev. A
4-2
4
4.2.9.9 Removing the Rear PE Sensor Assembly
1. Remove the printer cover, the rear / front edge guide assemblies, front
cover, paper eject assembly, and rear / fronts tractor units. (Refer to
Section 4.2.1.)
2. Remove the panel board assembly. (Refer to Section 4.2.2.)
3. Remove the upper housing assembly. (Refer to Section 4.2.7.)
4. Remove the printer mechanism. (Refer to Section 4.2.9.)
5. Turn the printer over, and insert a standard screwdriver bit or other
prying tool into the hole in the rear frame as shown in the following
figure;
6. Release two clips while pushing up the rear PE sensor with the
screwdriver bit or other prying tool.
7. Remove the rear PE sensor assembly after disconnecting the
connector.
C lip s
Rear PE Sensor Assem bly
R ear Fram e

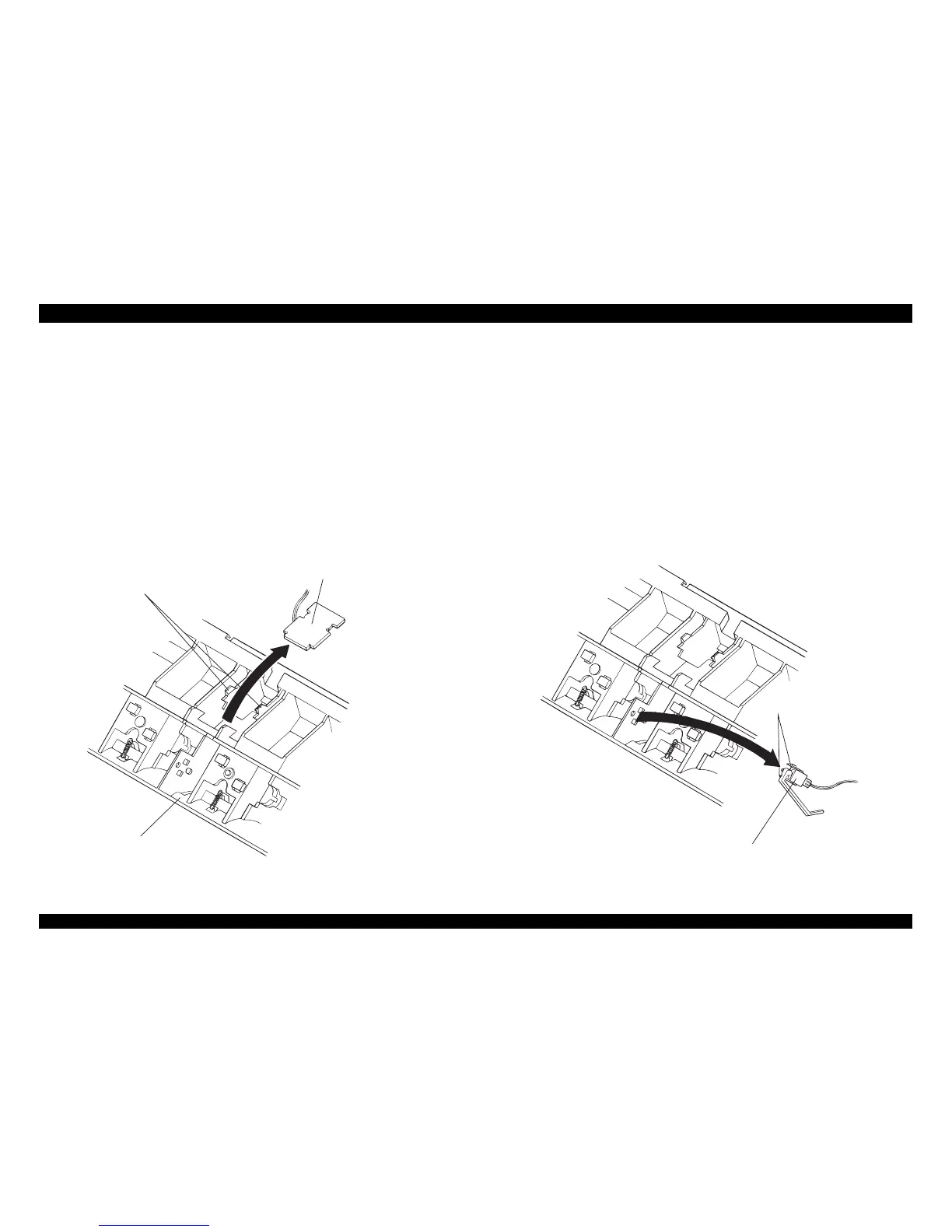

Figure 4-33. Removing the Rear PE Sensor Assembly
4.2.9.10 Removing the Front PE Sensor Assembly
1. Remove the printer cover, the rear / front edge guide assemblies, front
cover, paper eject assembly, and rear / fronts tractor units. (Refer to
Section 4.2.1.)
2. Remove the panel board assembly. (Refer to Section 4.2.2.)
3. Remove the upper housing assembly. (Refer to Section 4.2.7.)
4. Remove the printer mechanism. (Refer to Section 4.2.9.)
5. Turn the printer over, and insert a standard screwdriver bit or other
prying tool into the hole in the rear frame as shown in the following
figure;
6. Release two clips while pushing up the front PE sensor with the
screwdriver bit or other prying tool.
7. Remove the rear PE sensor assembly after disconnecting the
connector.
C lip s
Front PE Sensor A ssem bly
Figure 4-34. Removing the Front PE Sensor Assembly
