4.2.10.2 Disassembling Paper Support Block Assembly
1. Remove the CSF gear cover. (Refer to Section 4.2.10.1.)
2. Remove the stepping motor. (Refer to step2 and 3 in the Section
4.2.10.1.)
3. Remove one E-ring fixing the right edge of the paper feed shaft.

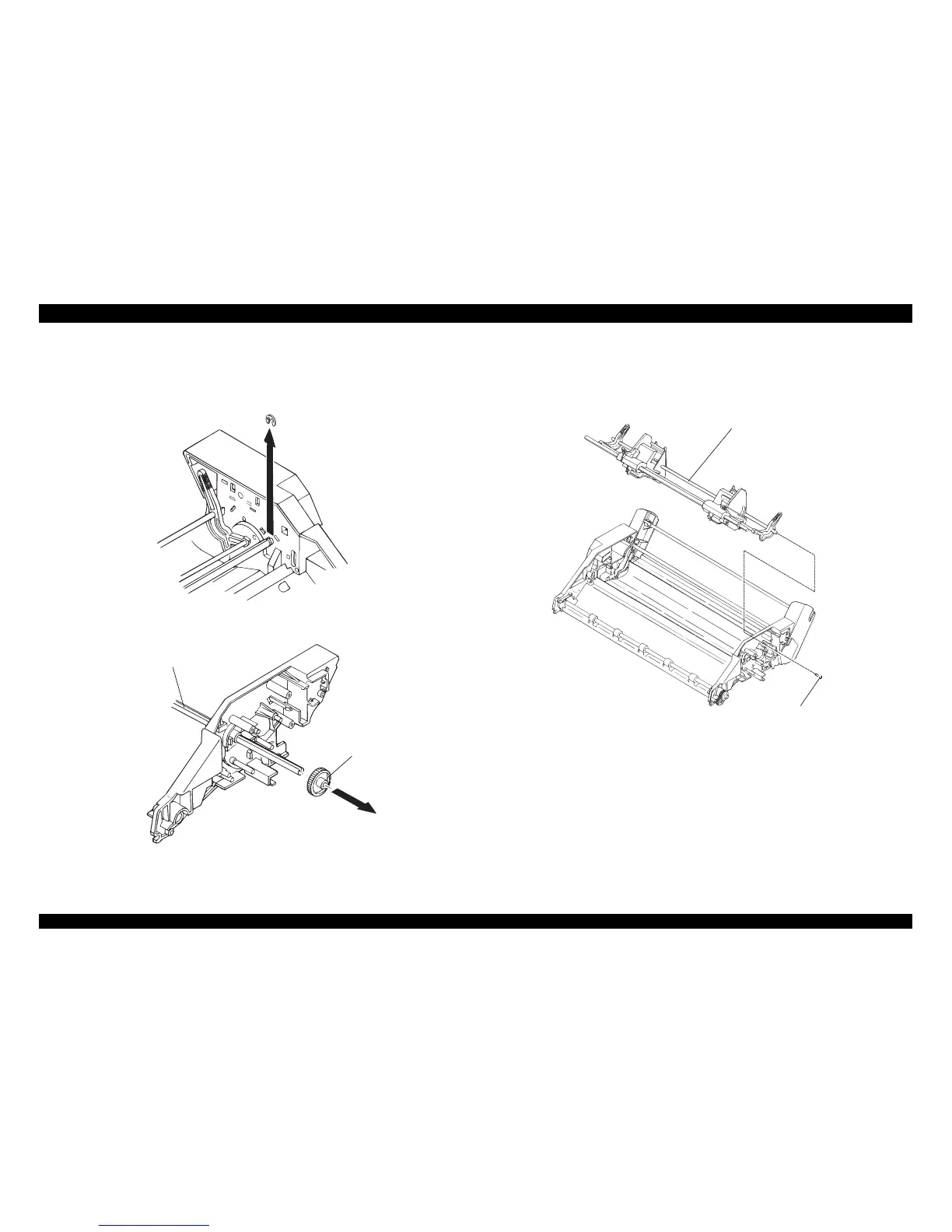

Figure 4-40. Removing the E-ring
4. Remove the gear 29 from the right edge of the paper feed shaft.
Paper Feed Shaft
G ear 29
Figure 4-41. Removing the Gear 29
5. Remove the paper feed shaft pulling it toward the right side.
6. Remove one CSF tight (3 × 8) screw securing the paper support shaft
to the right CSF frame, as shown in the following figure.
7. Remove the paper support assembly along with the paper support shaft
and paper shaft holder by pulling upward.
Paper S upport A ssem bly
CPB (3 x 8)
Figure 4-42. Removing the Paper Support Assembly
8. Remove both paper feed roller from both paper support assemblies.
9. Remove both paper loading roller cover assemblies by releasing the
clips fixing them to the paper support assembly.
