FX-2180 Service Manual Disassembly and Assembly
Rev. A
4-3
0
4.2.10.3 Removing the Paper Eject Assembly Cover
1. Remove the paper assembly cover by releasing two clips located along
both edges of the paper eject assembly cover, as shown in the
following figure.
Paper Eject A ssem bly C over

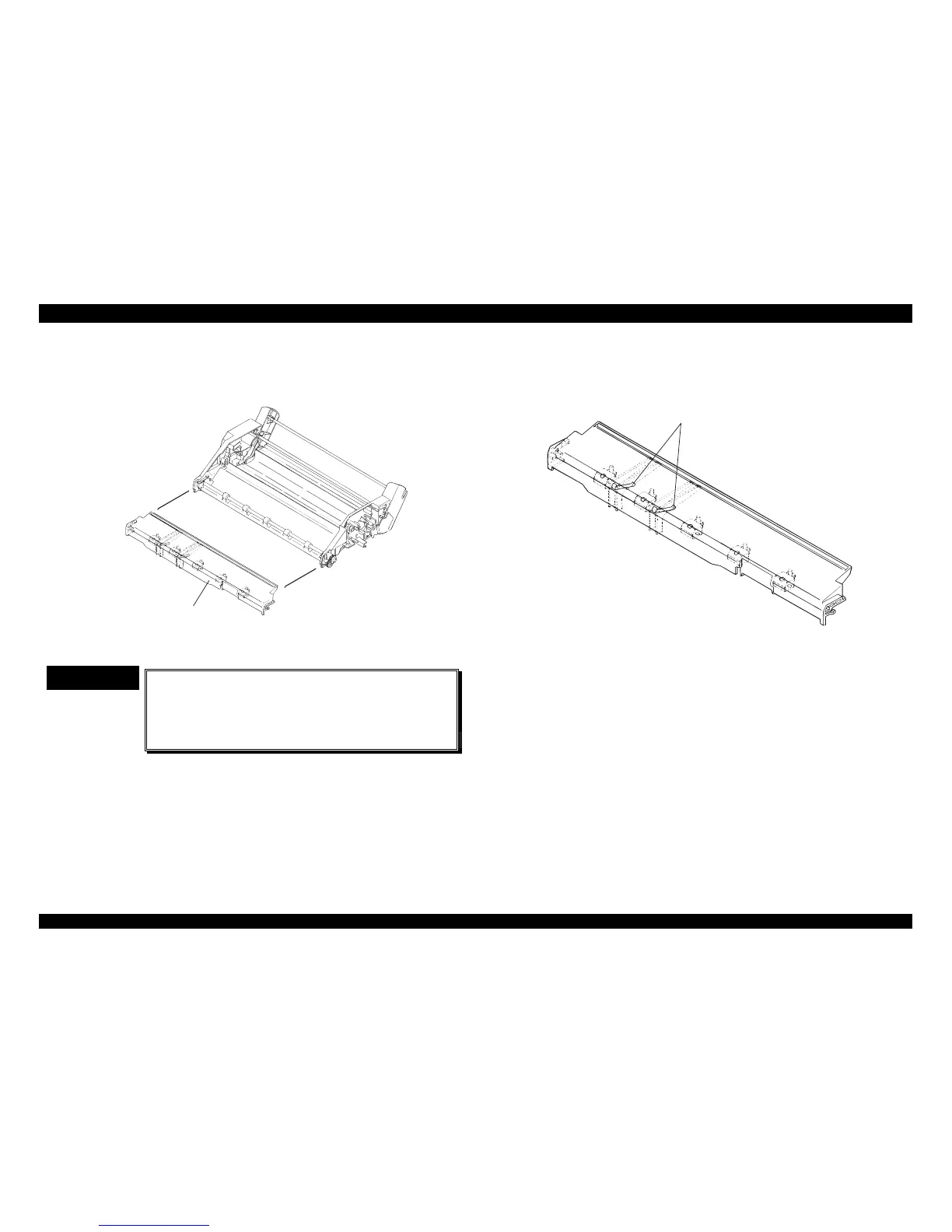

Figure 4-44. Removing the Paper Eject Assembly Cover
CHECK POINT
9
When attaching the paper eject assembly cover to
the CSF unit, pay attention to assemble the
position of 2 pieces of thin plastic film glued on
the reverse side of the paper eject assembly
cover, as shown in the following figure.
Plastic Film
Figure 4-45. Plastic Film Located Position
