REV.-A
1.3 INTERFACE OVERVIEW
The FX-850/l 050 has 8-bit parallel interface as standard.
1.3.1 8-bit Parallel Interface Specifications
Data Transmission Mode
8-bit
pallarel
Synchronization
By STROBE pulse
Handshaking
By BUSY and ACKNLG (either or both)
Logic Level
TTL compatible
Data Transmission Timing
See Figure 1-6.
Connector
57-30360 (AMPHENOL) or equivalent
(See Figure 1-7.)
‘“s’ —--J---’ 2!-,
= —r—Lrl———ttt—
NOTE: Transmission time (rising and falling time) of every input signal must be less than 0.2 ps.

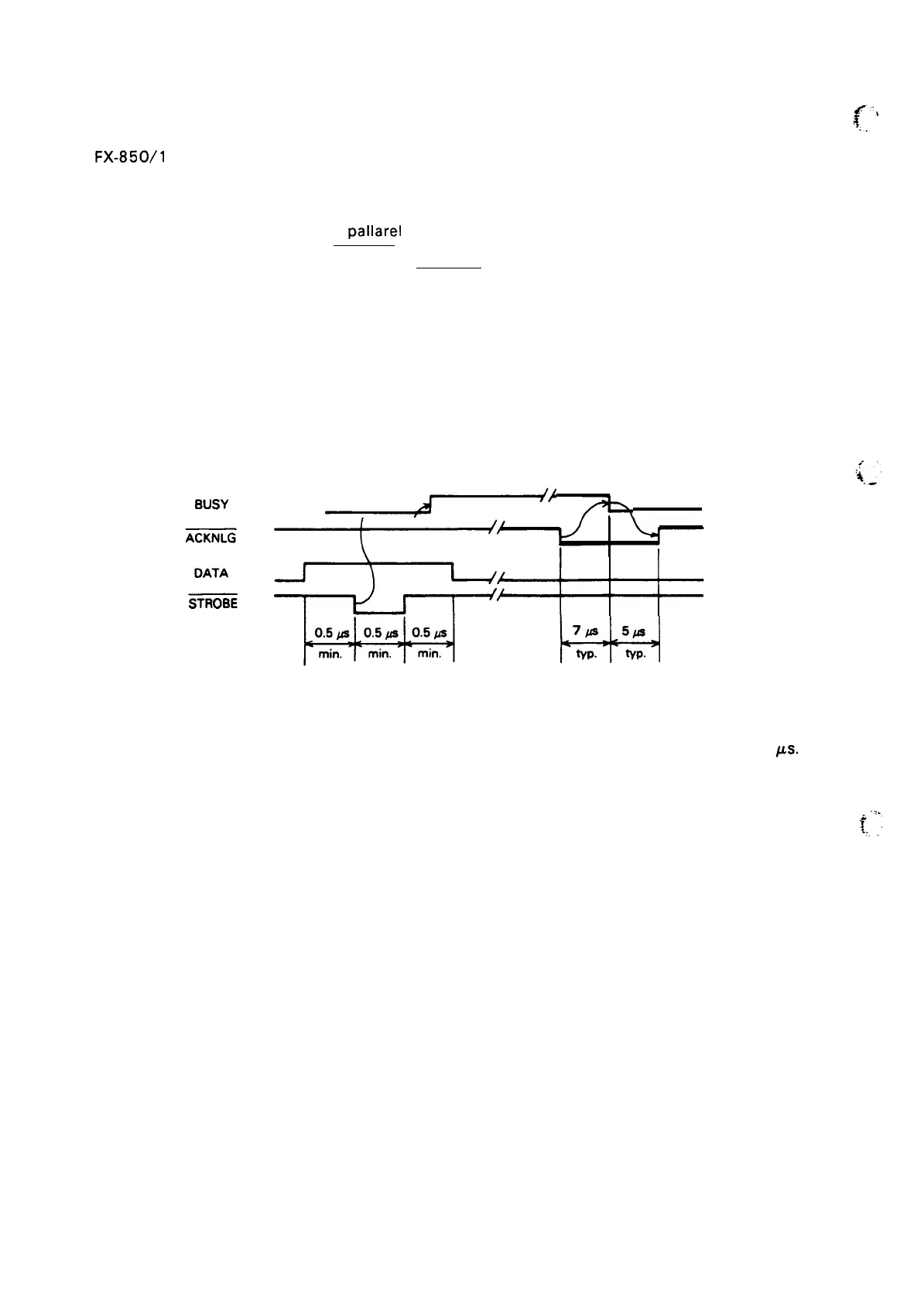

Figure 1-6. Data Transmission Timing of 8-bit Parallel Interface
.:.
t,, .
1-12
