REV.-A
4.2 DISASSEMBLY AND ASSEMBLY
Components of the FX-850\l 050 may be assembled simply by performing the disassembly operation
in reverse sequence. Assembly procedures, therefore, have been omitted.
The sequence of this disassembly in this section is grouped into three parts: (1) removal of the upper
case, (2) removal of the circuit boards, and (3) disassembly of the printer mechanism. This sequence
is shown in Figure 4-6.
I
Remove power cord,
Interface cable, and paper.
I
Remove paper tension
unit.
Remove paper guide, paper
rest, and printer cover.
I
Remove ribbon cartridge.
I
\
1
SectIon 4,2, 1
Sect Ion 4,2, 5,2
Upper
Case
Removai
Printhead
Removai
I

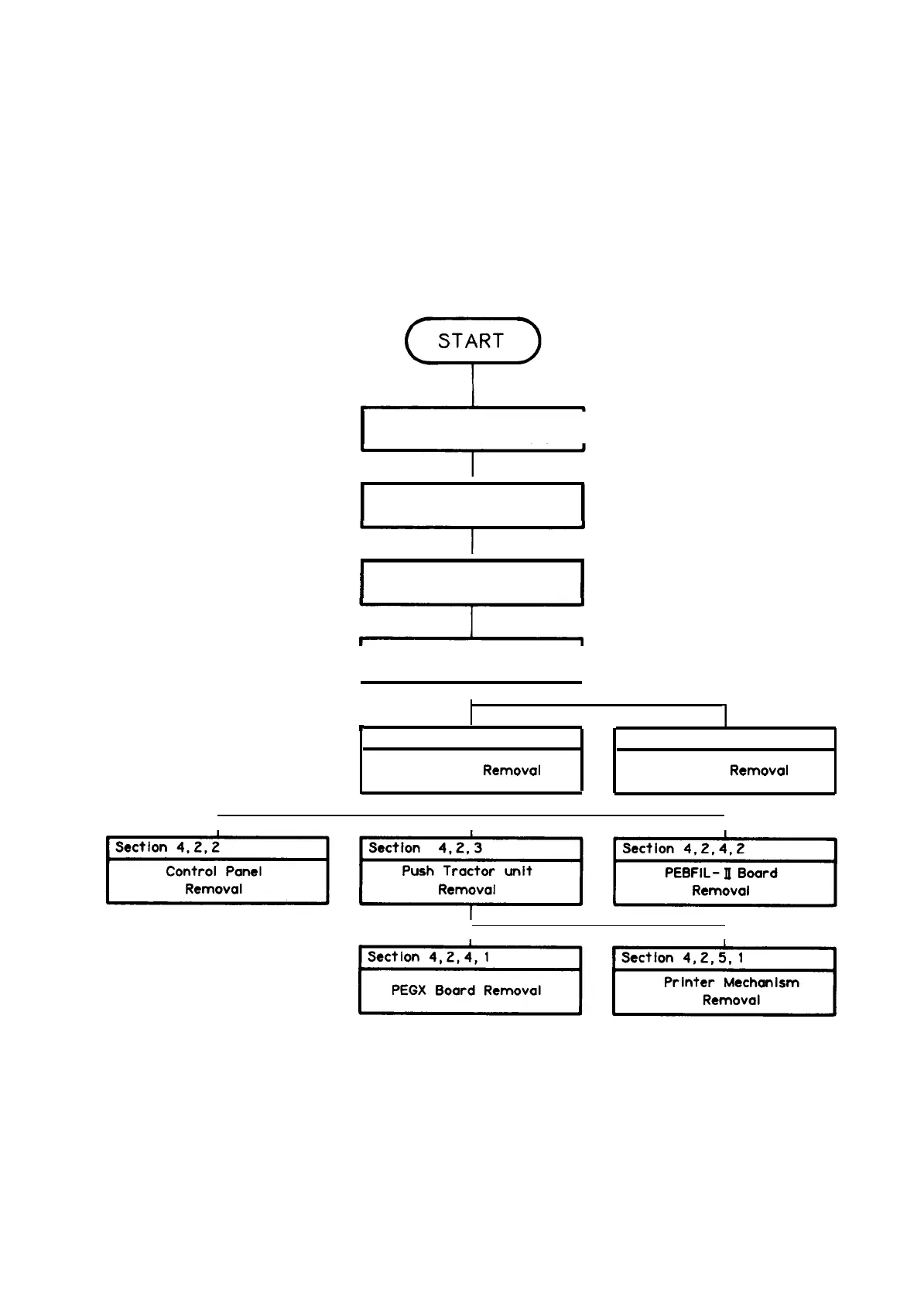

Figure 4-6. Printer Disassembly Procedures
4-5
