REV.-A

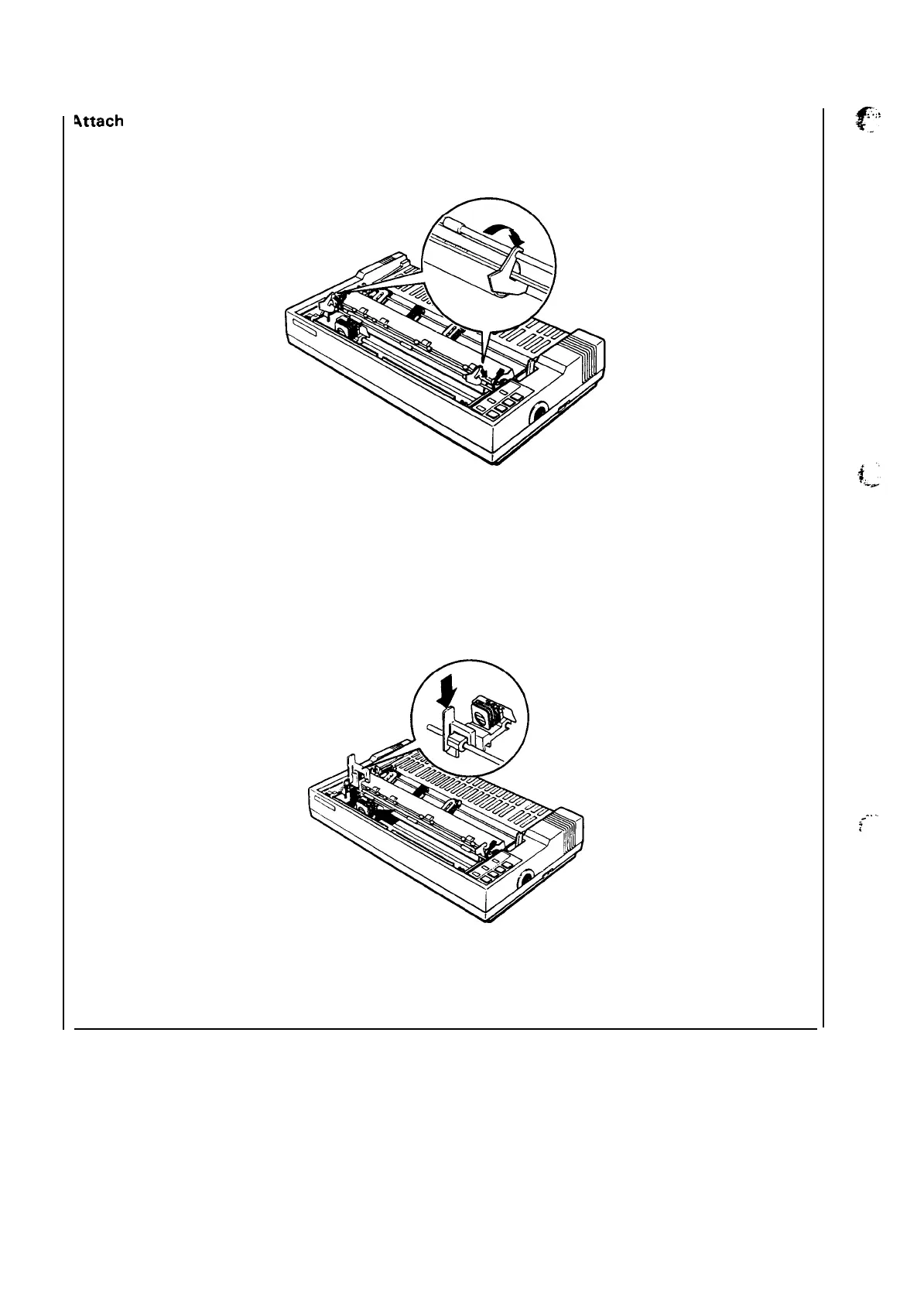

~ttach
the left and right locking tabs.
Slide the print head all the
Figure 4-4. Locking Tabs Installation
way to the left, and insert the print head
protector as shown below.
Figure 4-5. Printhead Protector Installation
4-4
