REV.-A
4.2.4.2 PEBFIL-11 Board Removal
Step 1: Remove the upper case (Refer to Section 4.2. l.).
Step 2: Disconnect connector CN 1 which connects the
PEBFIL-11 board.
Step 3: Remove grounding screw CPS (0) (3 X 6) which secures the
PEBFIL-11 board.
Step 4: Remove grounding screw
CB (0) (4 X 8) which secures the A.C ground wire.
-CN 1
-PEBFIL-11 Board
/
CB(0) (4X 8)
/w
CPS(0) (3x 6)

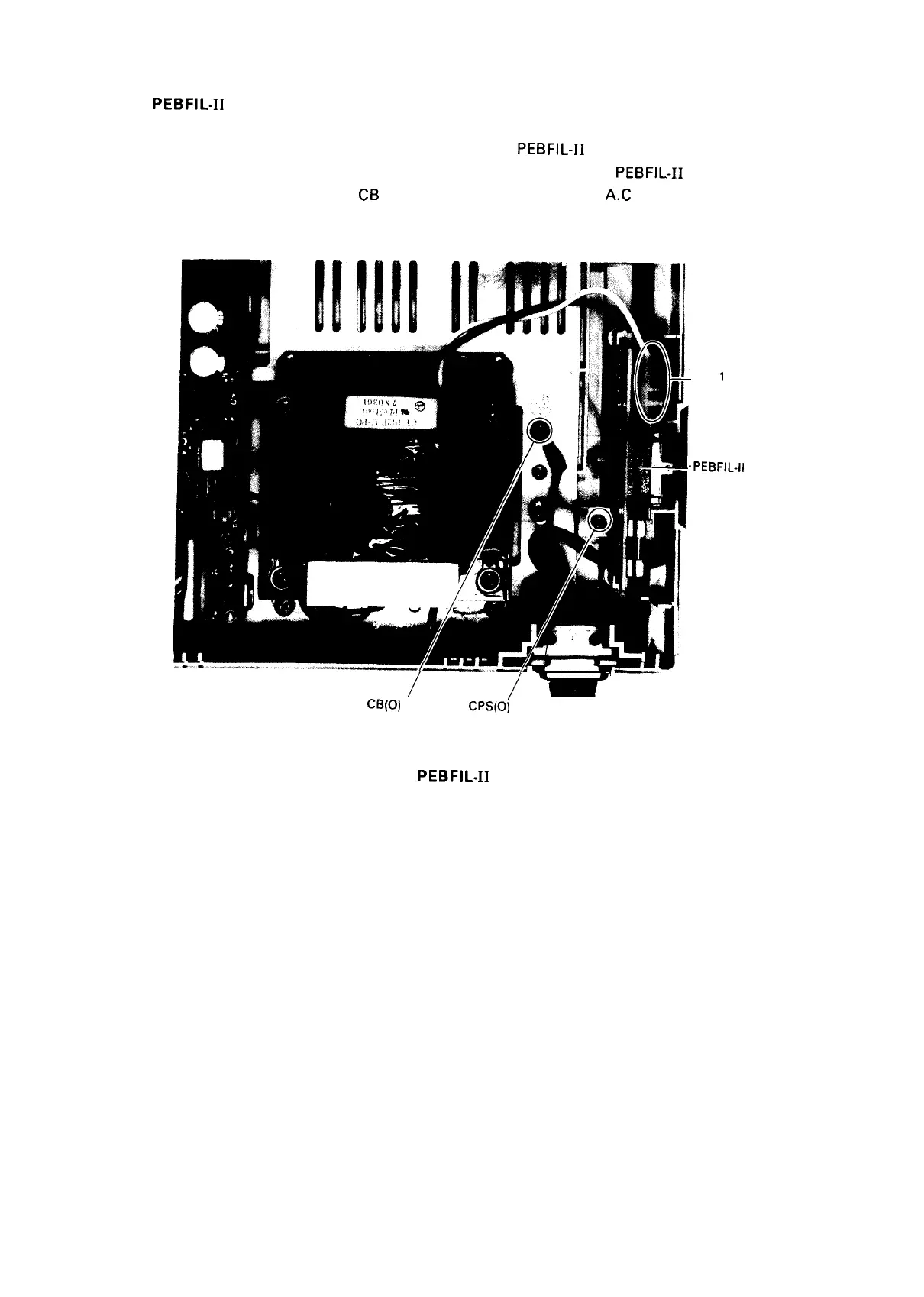

Figure 4-13. PEBFIL-11 Board Removal
4-11
