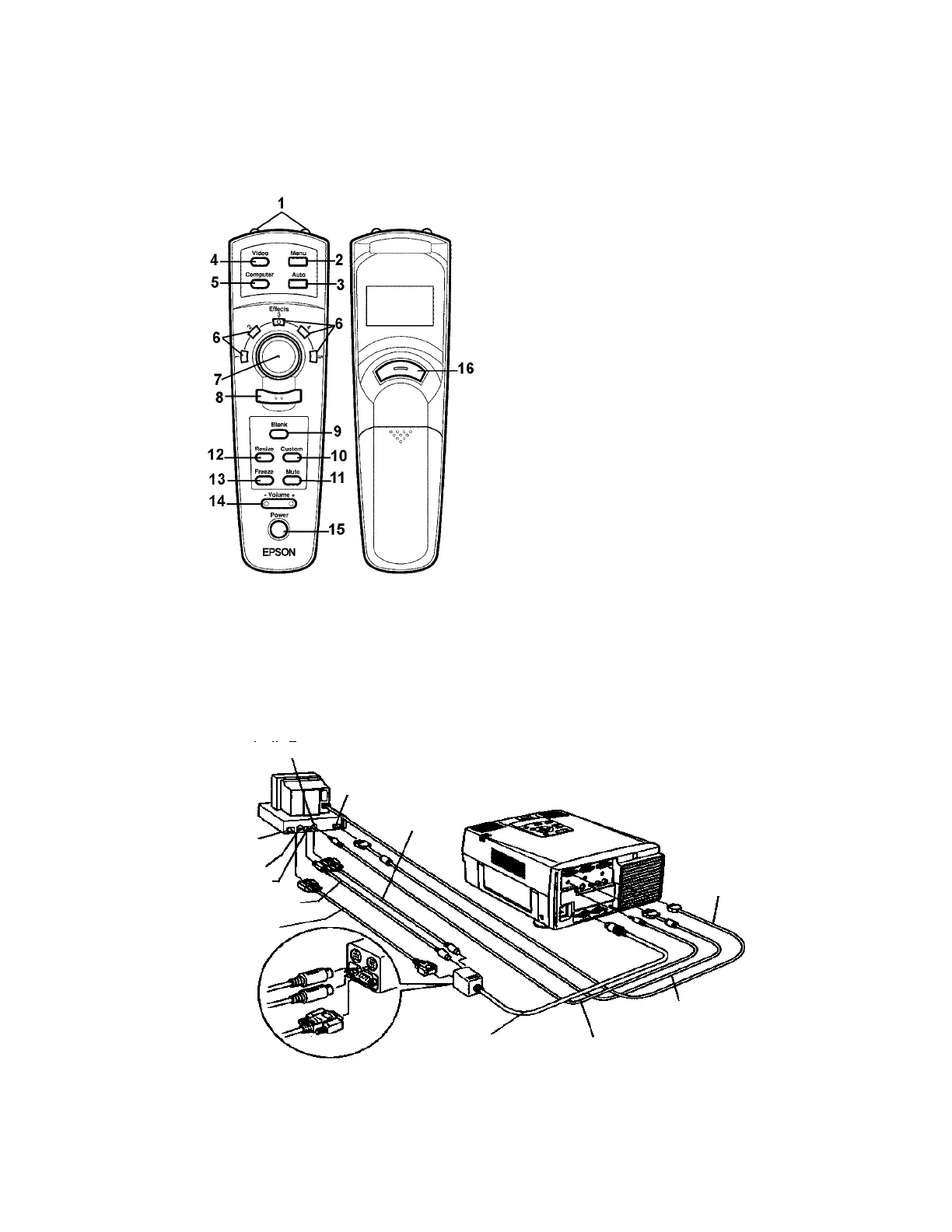

1.2.3 Exterior View of Remote Control
Figure 1-10
1.3 CONNECTIONS
1.3.1 Connecting to a PC
Desktop
Audio Port
Monitor Port
Serial Port
Serial
Mouse Cable
Mouse Port
COM Port
Mouse Cable
for PS/2
Serial Cable
Main Cable
Audio Cable
Computer Cable
Monitor Cable
1 Remote Infrared Rays
2 Menu
3 Auto
4 Video
5 Computer
6 Effects
7 Pointer
8 Right Click
9 Blank
10 Custom
11 Mute
12 Resize
13 Freeze
14 Volume
15 Power
16 Left Click
Figure 1-11
