EPSON PowerLite 5000 Service Manual
1-20

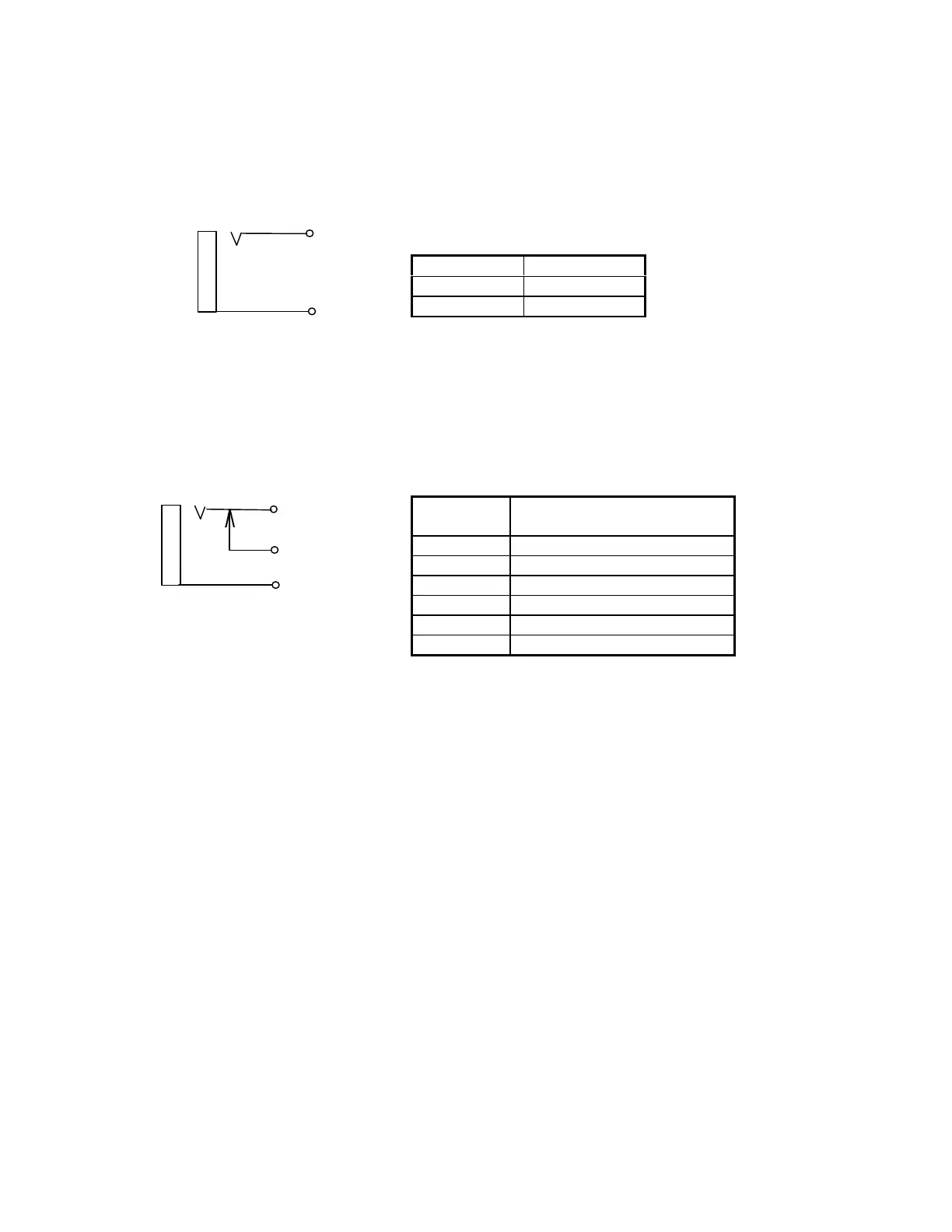

1.6.6 Video-In
RCA gold plating (only insertion part), Light angle H=15 mm
Color: yellow
Table 1-8
Pin number Signal
1 GND
2 Video input
Figure 1-37
1.6.7 Audio In L/R
RCA Gold plating (only insertion part), Light angle H = 15 mm
Color: L = white R = red
Table 1-9
Pin
number
Signal
3 GND
4 Audio R return
5 Audio input L
6 GND
7 Audio L return
8 Audio input R
2
1
3, 6
5, 8
4, 7
Figure 1-38
