EPSON PowerLite 5000 Service Manual
3-19
3.2.11 Removing the FR Board
Prerequisite conditions: 3.2.3/3.2.4/3.2.9

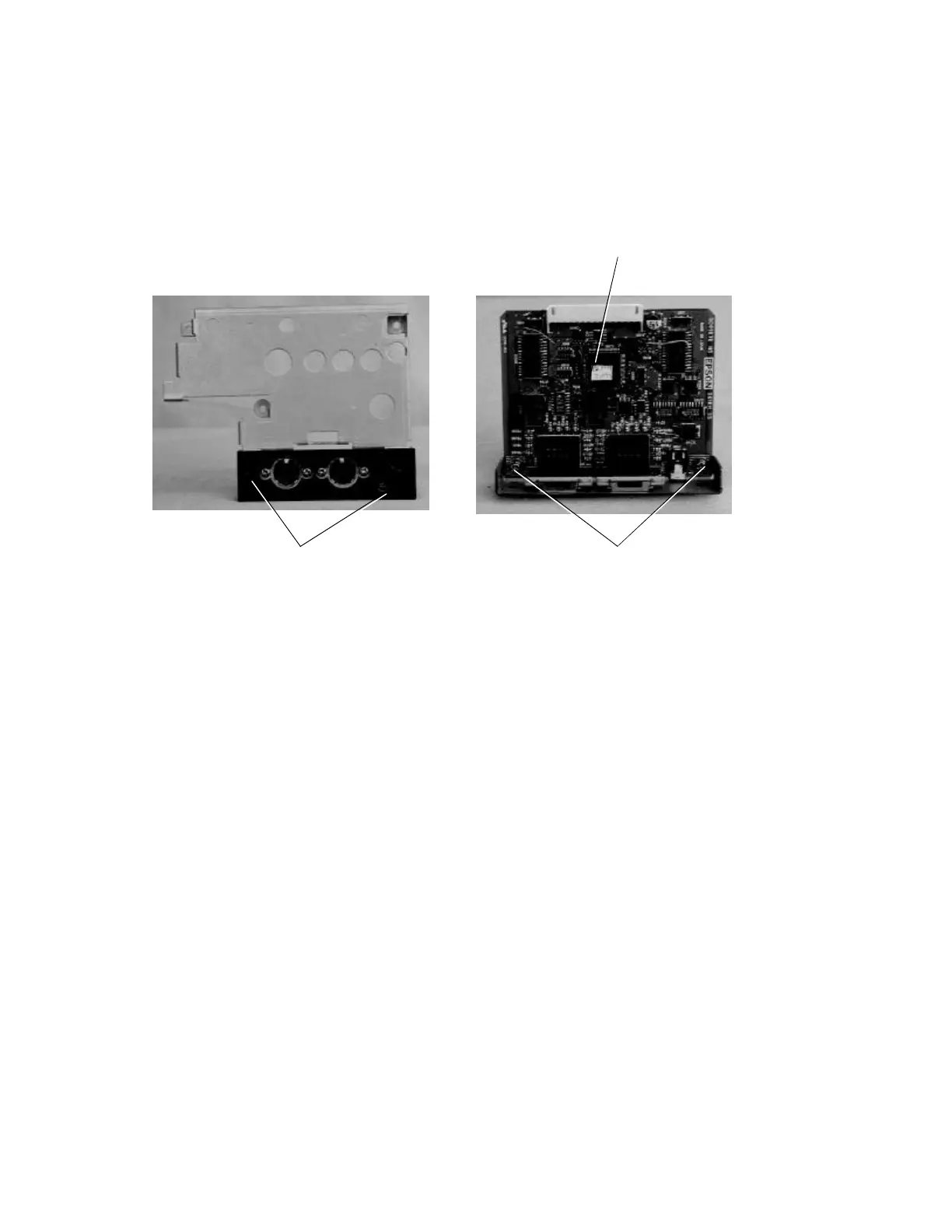

Figure 3-22 Figure 3-23
1. Pull out the FR board with the audio board shield plate from the rear case.
2. To detach the remote board cover from the audio board shield plate, remove 2 screws
from them.
Screws: +M3×4 F/ZN Bind: P/N 1021795
(mounting torque: 4.0 kg. cm = 3.5 lb. inch)
3. To separate the remote board shield plate from the FR board, remove 2 screws from
them.
Screws: +M3×8 F/ZN: P/N 1021795
(mounting torque: 4.0 kg. cm = 3.5 lb. inch)
FR Board
Screws Screws
