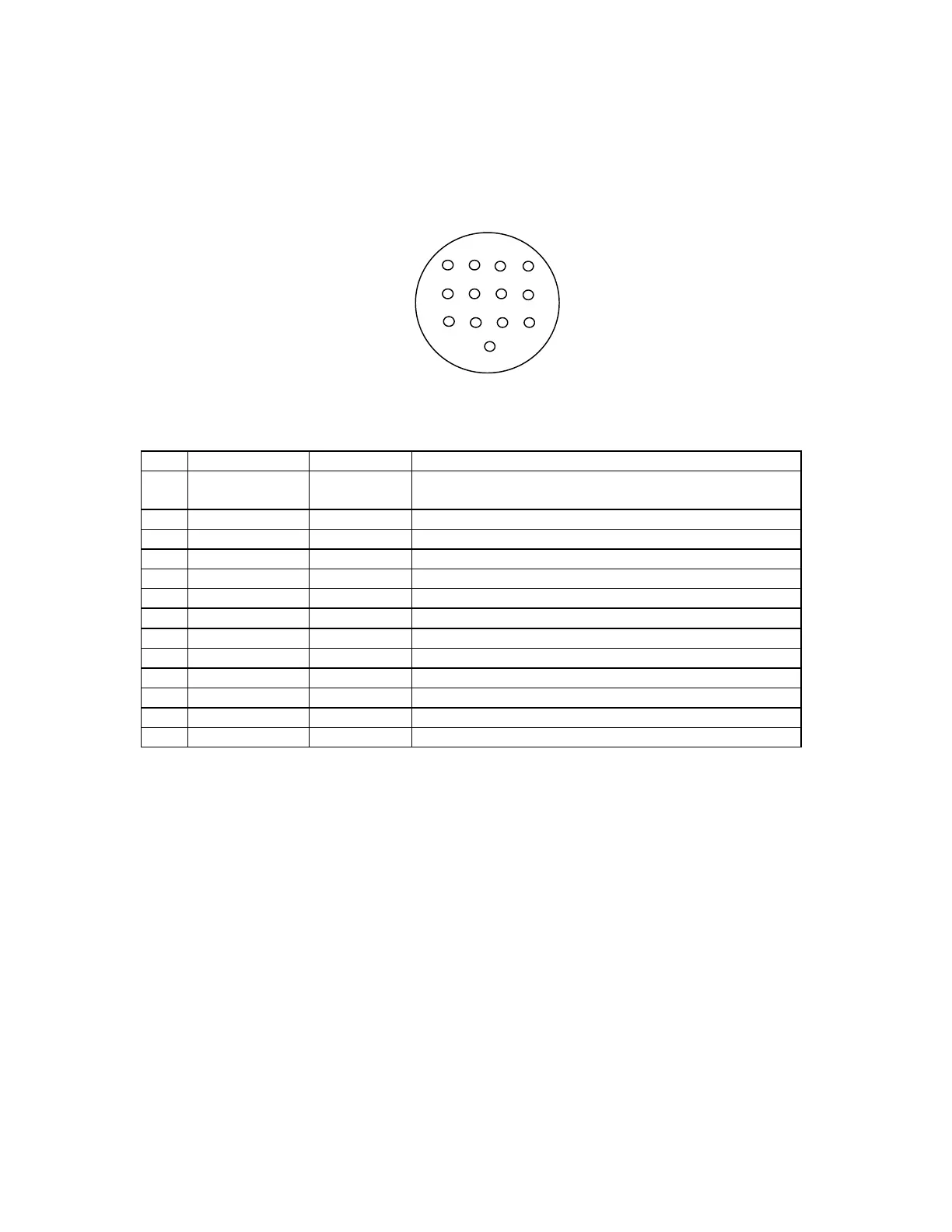

1.6.8 Mouse / Com 1/2
Multi-mouse, 13 pin jack
Figure 1-39
Table 1-10
Pin Signal Type Functions
1 XA/CLK/ADB Encoder signal/I/O data signal/Synchronous clock
signal
2 XB/DATA Encoder signal/I/O data signal
3 YA Encoder signal
4 YB Encoder signal
5 LEFT/ID0 Left button signal/Control signal
6 RIGHT/ID1 Right button signal/Control signal
7 NC Common Disabled
8 TxD Serial Transmitted signal
9 RxD Serial Received signal
10 DTR Serial LCP data terminal ready signal
11 DSR Serial PC data set ready signal
12 Common PC power ON signal
13 GHD Common Ground
4
8
12
1
5
9
13
