Epson PowerLite 5000 Service Manual

EPSON PowerLite 5000 Service Manual
1-19

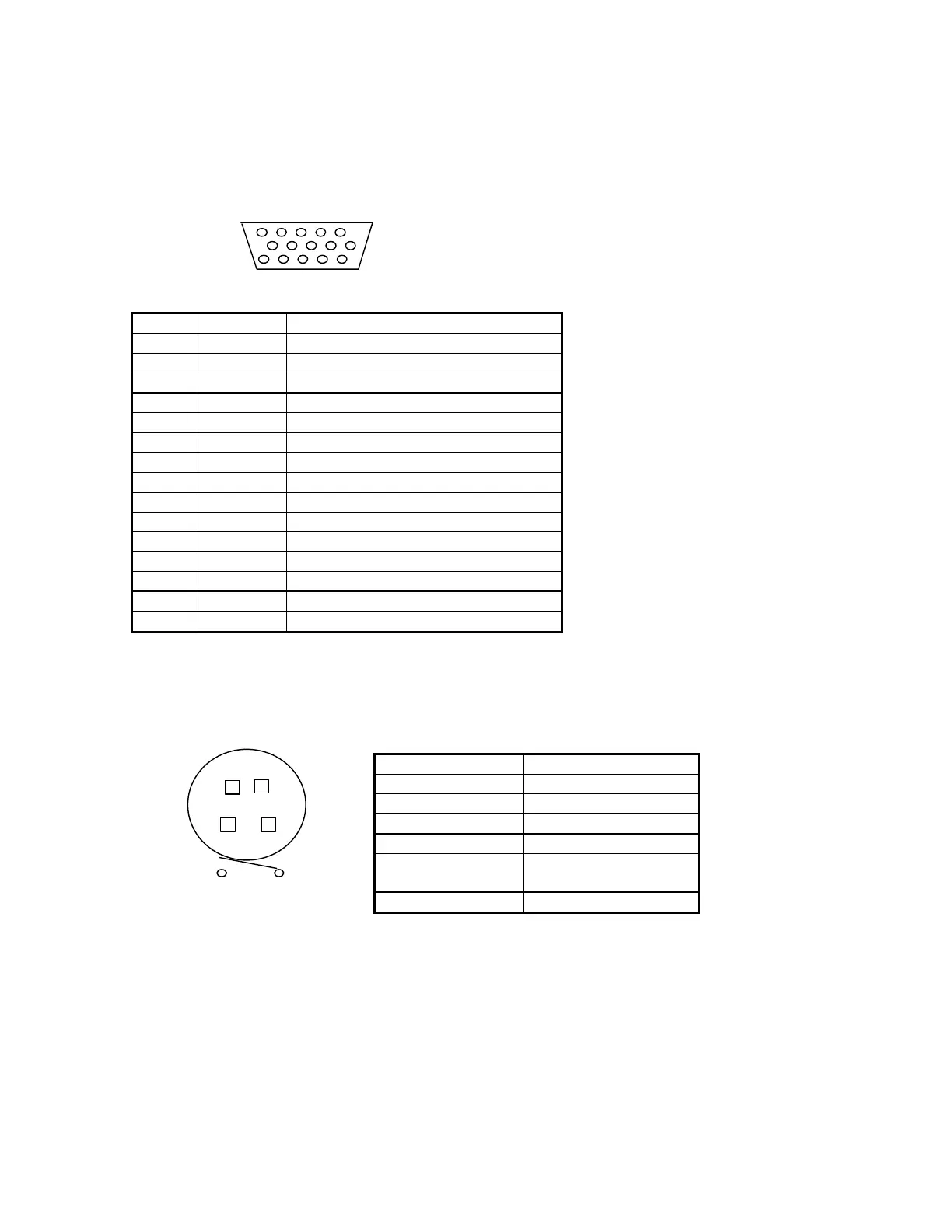

1.6.4 Monitor
Table 1-6
Pin Signal Function
1 R Out Red video
2 G Out Green video
3 B Out Blue video
4 Reserved
5 GND
6 GND
7 GND
8 GND
9 Reserved
10 GND
11 Reserved
12 Reserved
13 H sync Horizontal synchronization
14 V sync Vertical synchronization
15 V sync
1.6.5 S-Video
S-terminal input
Mini DIN 4-pin with a detection pin
Table 1-7
Pin number Signal
1 GND
2 GND
3 Y signal input
4 C signal input
5 Input detection
terminal
6 GND
4
2
3
1
5
6
5 1
10 6
15 11
Figure 1-35
Figure 1-36
