EPSON PowerLite 5000 Service Manual
3-28
3.2.21 Removing the Air Filter Flame Unit Switch (Filter Cover Switch)
Prerequisite conditions: 3.2.3/3.2.4/3.2.8/3.2.13/3.2.17

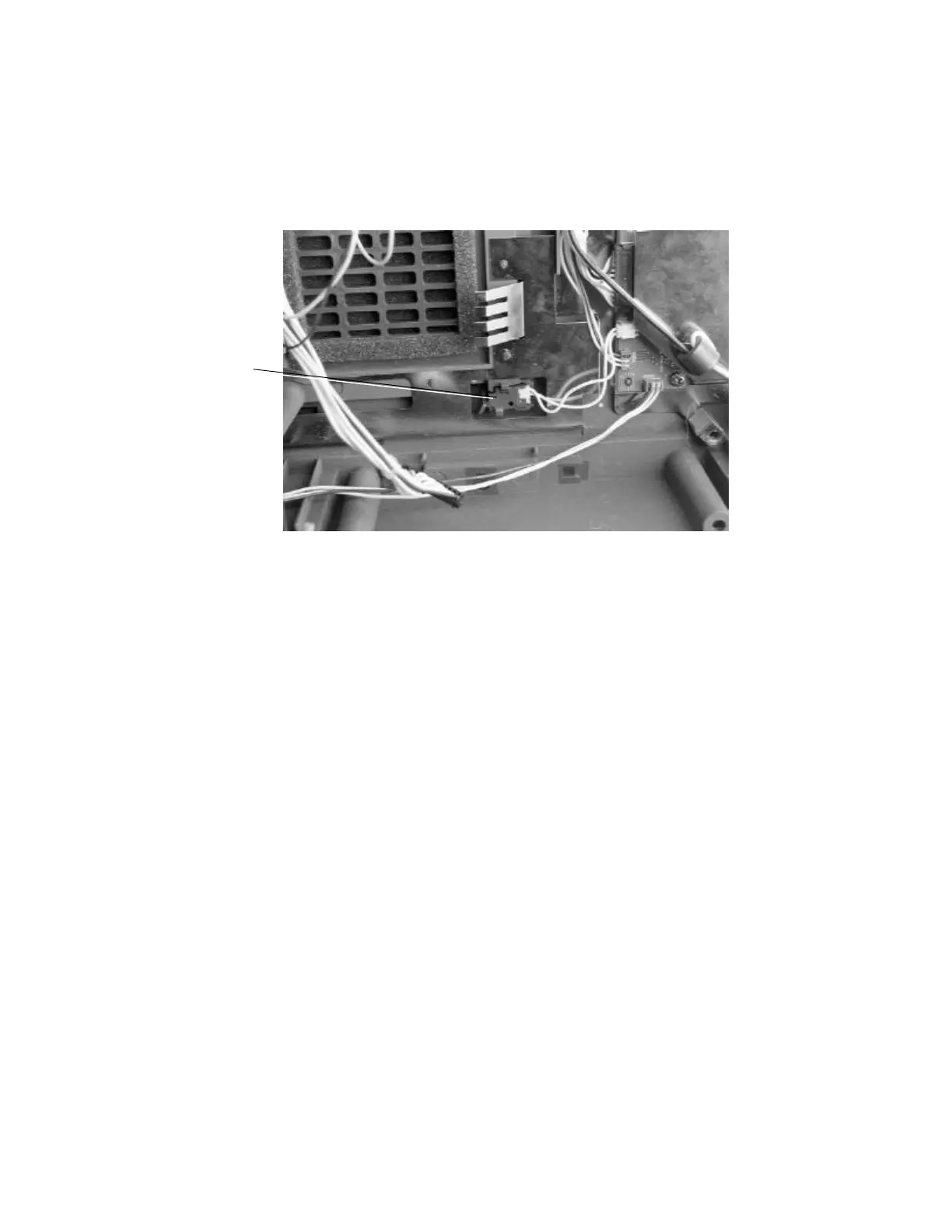

Figure 3-37
1. Disconnect the cable connector from the switch connected to CN202 on the CN board.
2. Remove the filter cover switch, pushing the latches on the lower case outward.
Caution:
Be careful not to break the latches with excessive stress. When you replace the filter cover
switch, align the hole to the boss on the lower case.
Filter Cover Switch
