Epson PowerLite 5000 Service Manual

EPSON PowerLite 5000 Service Manual
1-8
Laptop
Serial Port
Audio Port
Monitor Port
Serial
Mouse Cable
Mouse Port
COM Port
PS/2
Mouse Cable
Serial Cable
Main Cable
Audio Cable
Monitor Cable

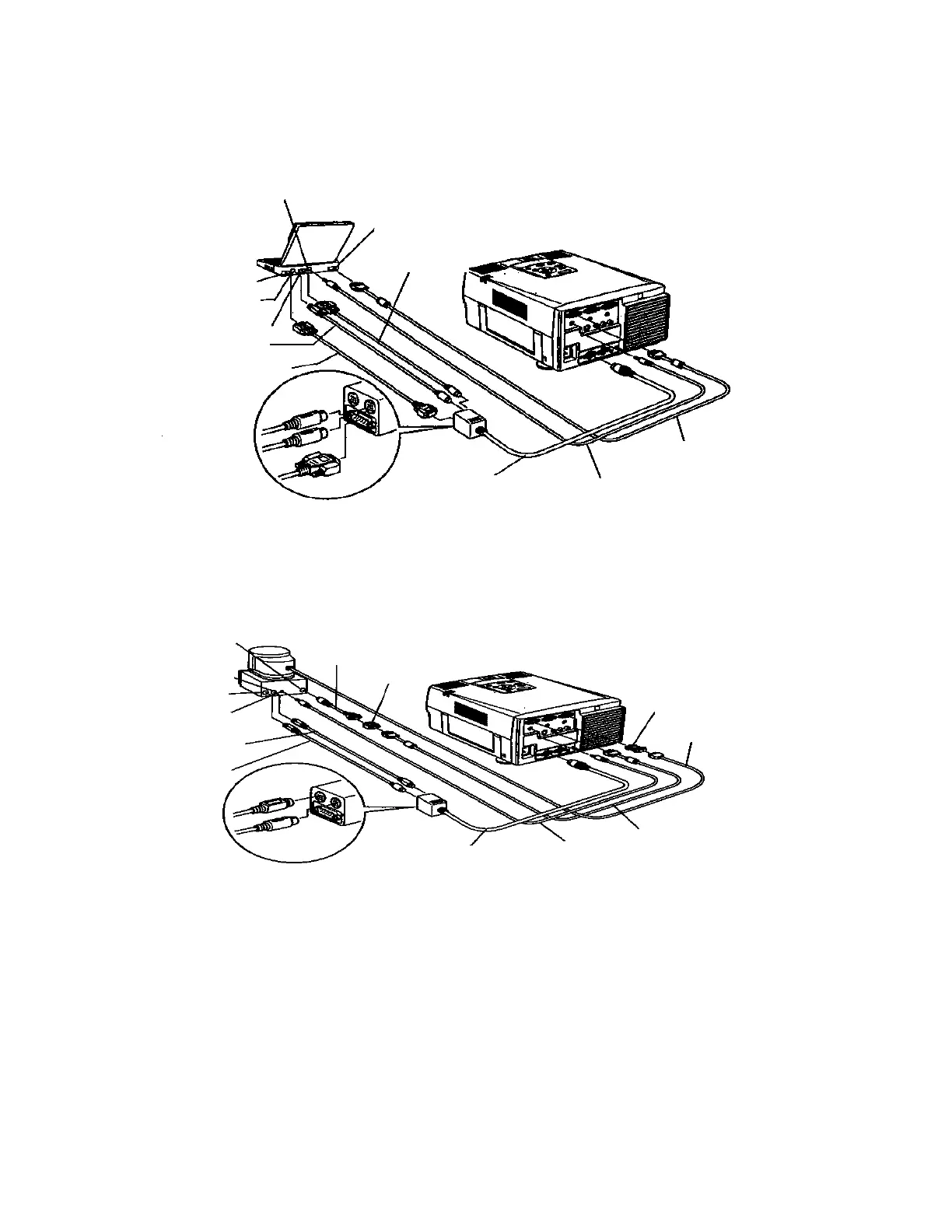

Figure 1-12
1.3.2 Connecting to a Macintosh
Desktop
Monitor Port
Video Adapter
Cable
Printer Port or
Modem Port
ADB Port
Audio Port
Mac Serial Cable
Mac Mouse
Cable
Mac Desktop
Video Adapter
Mac Monitor
Cable
Computer Cable
Main Cable
Monitor Cable
Audio Cable
Figure 1-13
Note:
Dip switch settings change according to the machine type. Refer to the following monitor adapter table for
details. (The default setting is Mac13” mode.)
