EPSON PowerLite 5000 Service Manual
3-27
3.2.20 Removing the CN Board
Prerequisite conditions: 3.2.3/3.2.4/3.2.8/3.2.13/3.2.17

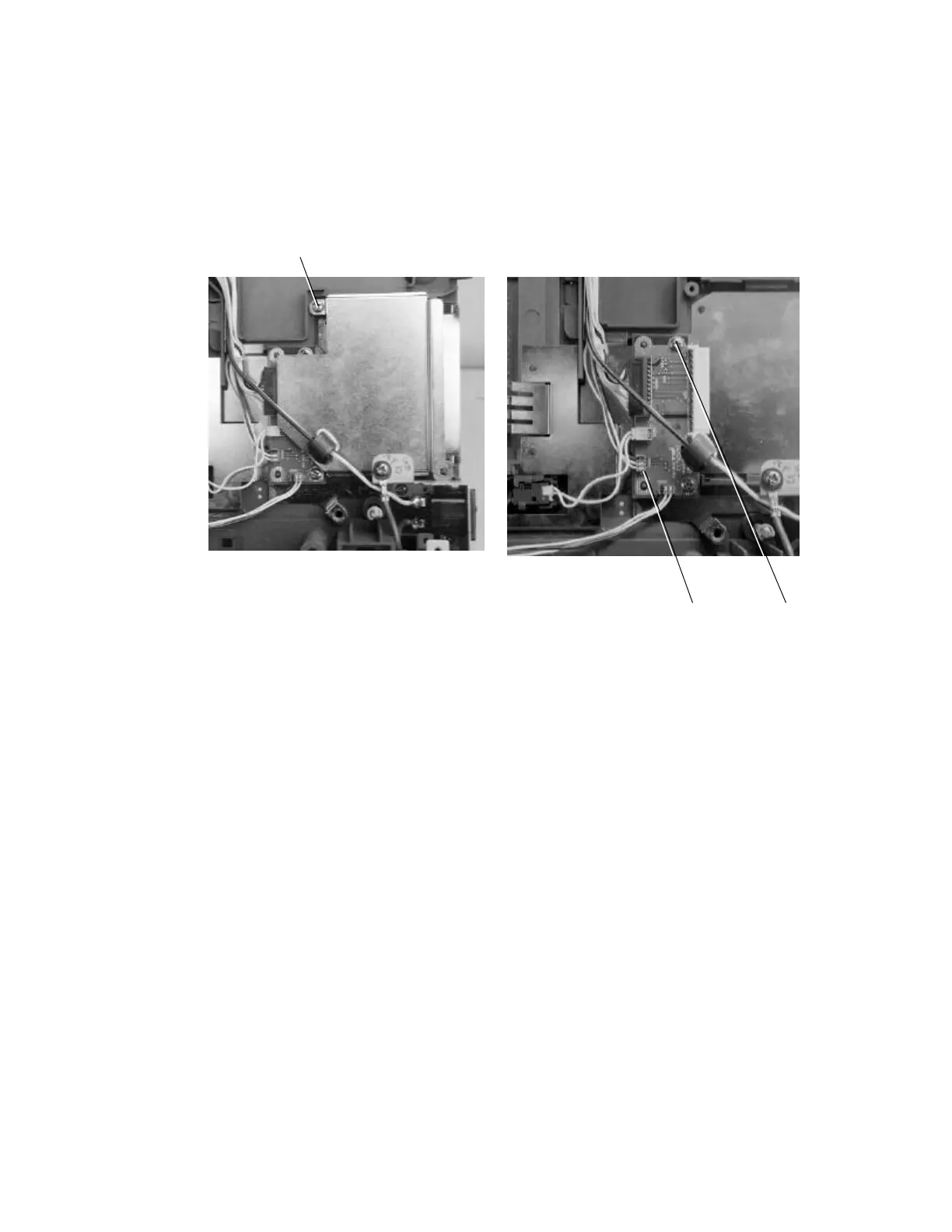

Figure 3-35 Figure 3-36
1. Remove the screw mounting the CN board shield plate B.
Screw: +M3×5 F/ZN Bind: P/N 1033703
(mounting torque: 6.0 kg. cm = 5.2 lb. inch)
2. Disconnect the cable connectors connected to CN200/202 on the CN board.
3. To detach the CN board, remove the 2 screws mounting it to the projector.
Caution:
Arrange the cables in the cable guide.
Screw
ScrewCN Board
