Epson PowerLite 5000 Service Manual

EPSON PowerLite 5000 Service Manual
2-16

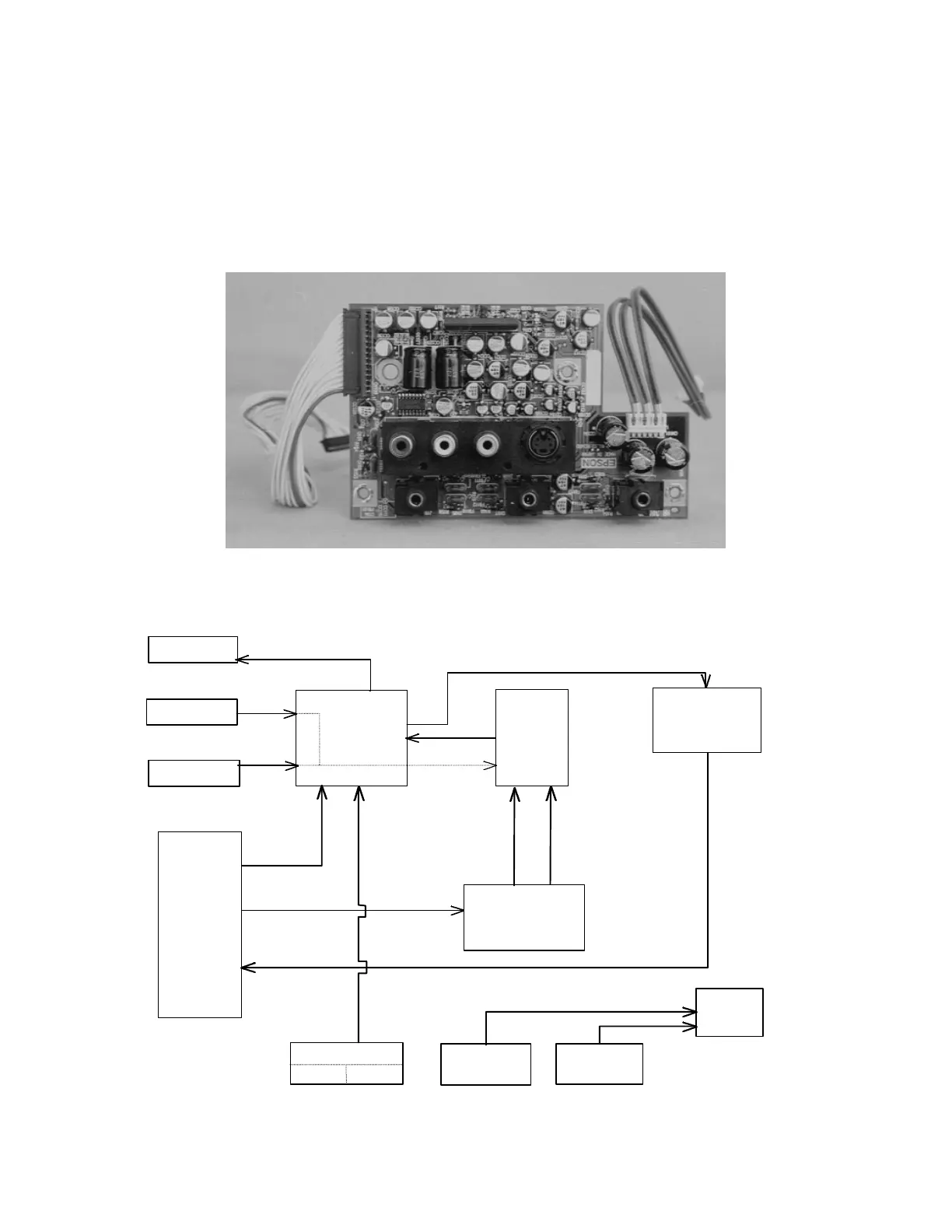

2.6 AU BOARD
The AU board includes an audio control circuit and interface connectors that receive audio
signals from a host computer or external video or other device. The interface connectors
are shown below.
Figure 2-13
AU Board Circuit Block
Audio Out
Audio In 1
Audio In 2
Sound
Controller
Sound Pre.
Amp.
Amp.
(For Internal
Speaker)
SCL/SDA
SPA C0/1
SPL/R
OUT PUT
Sound Volume
(8 Level Control)
S Video Video In
Audio In
L R
CN101
Connect to Main
Board CN300
CN100
Reference
Voltage
Mode
Computer 1
Computer 2
Figure 2-14
