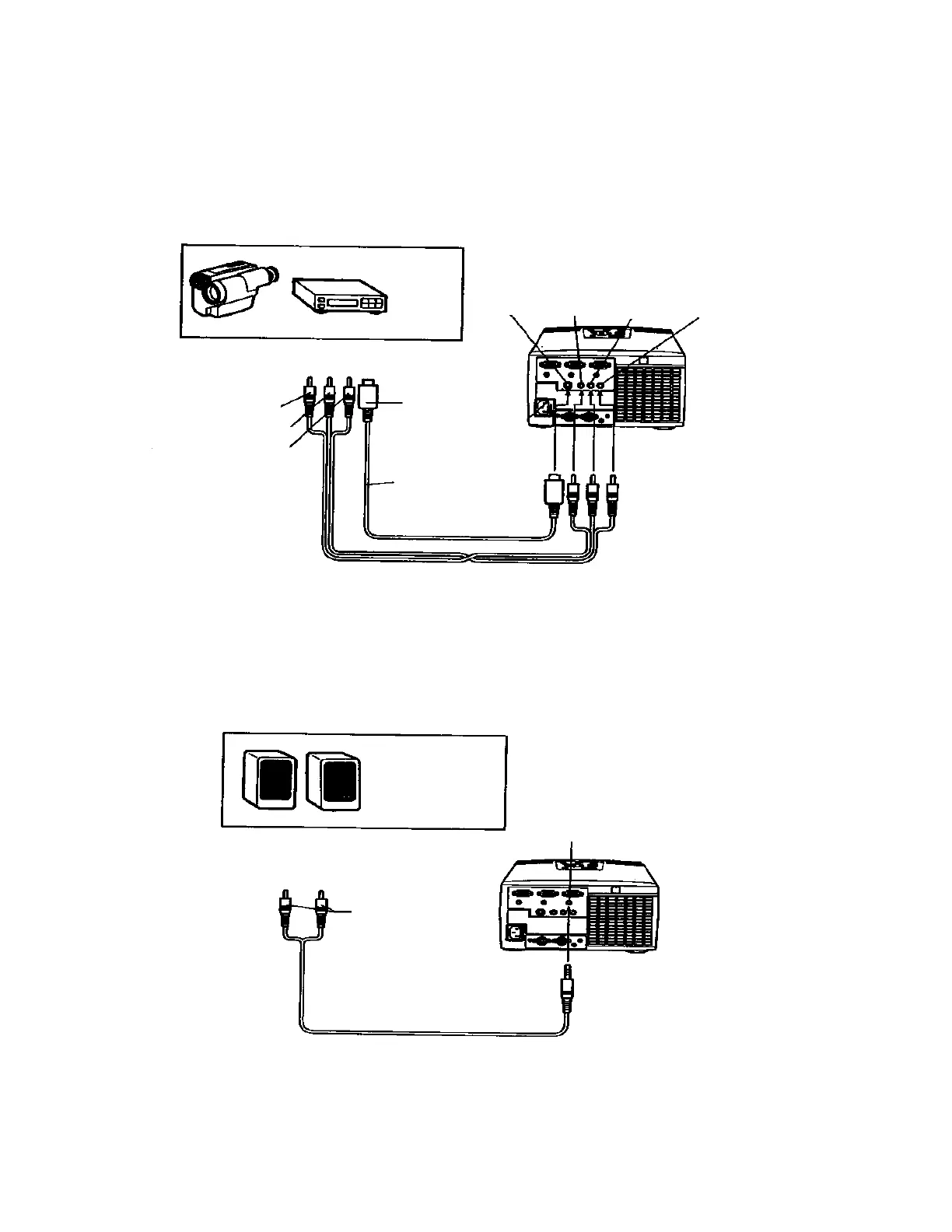

1.3.3 Connecting to a Video Source
Video Devices
S-Video
Video In
(Yellow)
Left Audio In
(White)
Right Audio In
(Red)
Video Output (Yellow)
Audio Output (White)
Audio Output (Red)
S-Video Output
S-Video Cable
Figure 1-16
1.3.4 Connecting to an Audio Source
Audio Devices
Audio Output
Audio Input
Audio Cable
Figure 1-17
