3.2.5 Removing the A/B Foot Adjuster
Prerequisite condition: 3.2.3
Foot Adjuster A

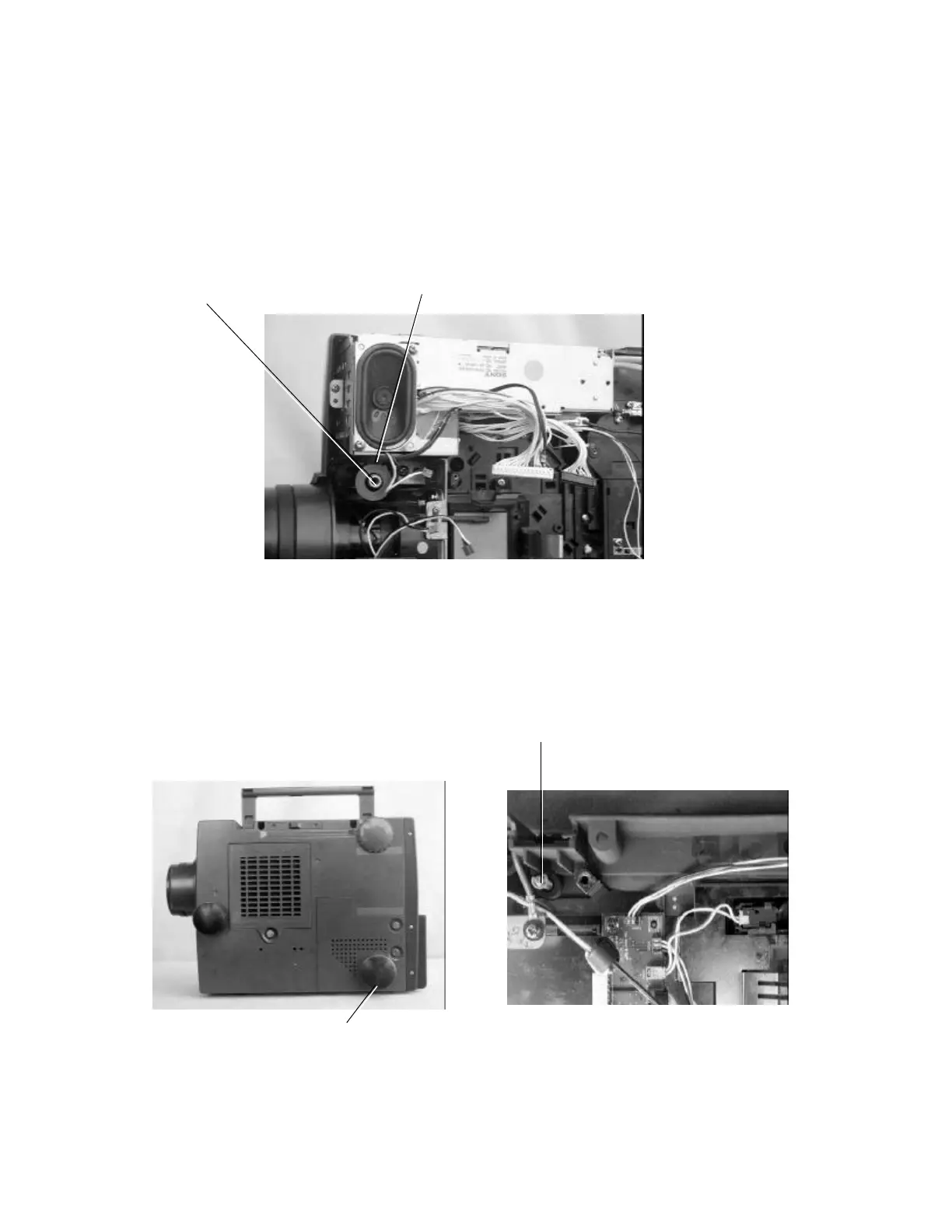

Figure 3-11
1. Push down the foot pipe and hold it; then fully lift up foot adjuster A.
2. Remove the OP ring D from the top of foot adjuster A.
3. Push down the foot pipe and remove it.
Foot Adjuster B
Figure 3-12
E Ring
Foot Adjuster A
OP Ring D
Foot Adjuster B
