3.2.12 Removing the Power Supply Unit / PBS Thermistor
Prerequisite conditions: 3.2.3/3.2.4/3.2.8/3.2.7 (right speaker)
Power Supply Unit

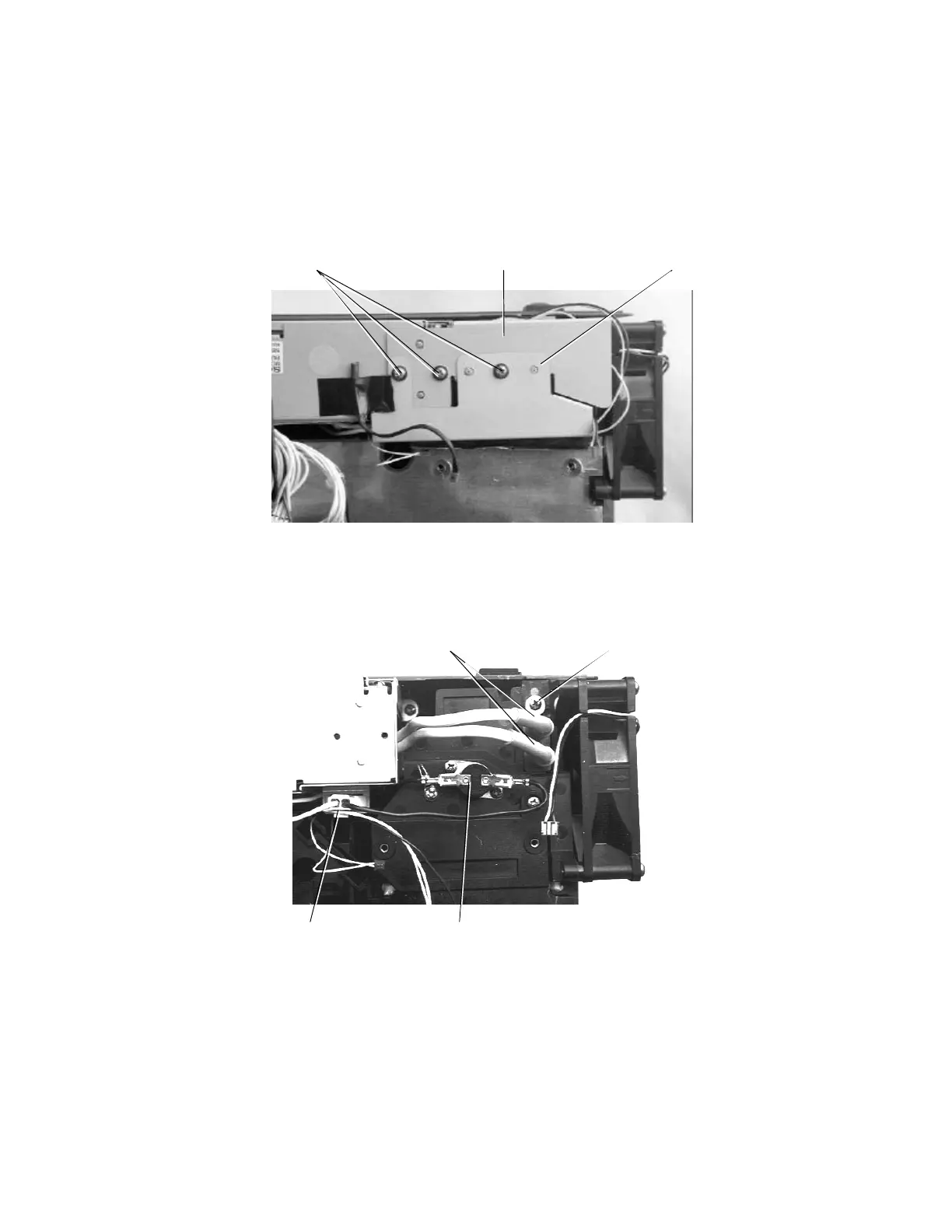

Figure 3-24
1. Remove the screw from the sensor shield plate, then pull it out.
2. Remove 2 screws from the case holding plate, then pull the case holding plate straight
up.
Figure 3-25
3. To pull out the power cable connector for the lamp, remove the screw and washer
mounting the connector.
4. Disconnect 2 wire cables connected to the safety switch.
5. Disconnect the cable connector (black/white) connected to the power supply unit.
Sensor Shield PlateCase Holding PlateScrews
Power Cables Screw
Cable Connector Safety Switch
