EPSON PowerLite 5000 Service Manual
3-9
(Continued from the previous page)

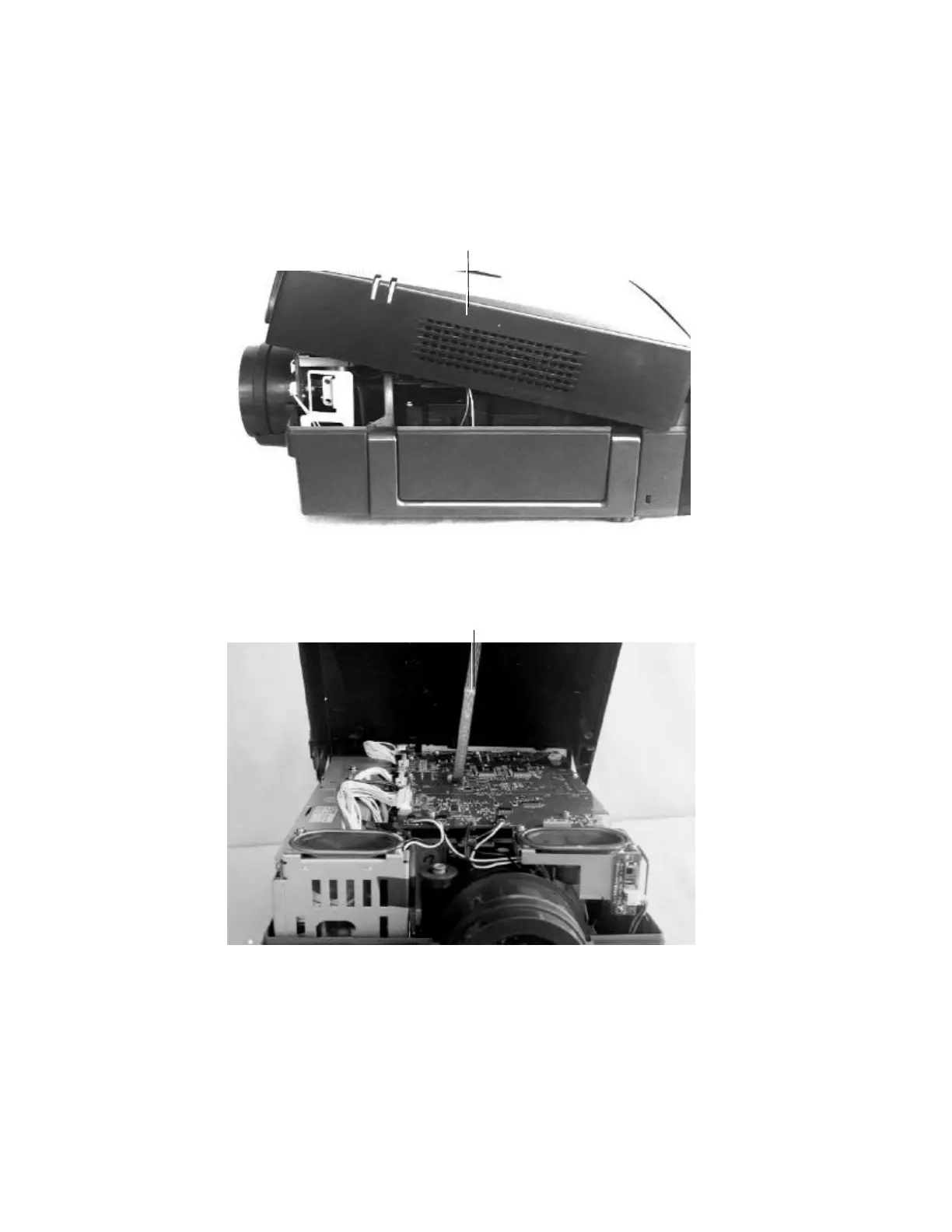

4. Hold the left and right sides of the upper case and lightly pull it partially up.
Figure 3-7
Figure 3-8
5. Disconnect the control panel cable from CN600 on the main board.
6. Remove the upper case.
7. Remove the handle from the lower case unit.
Upper case
Switch panel cable
