EPSON PowerLite 5000 Service Manual
3-13
3.2.7 Removing the Right and Left Speakers
Prerequisite condition: 3.2.3

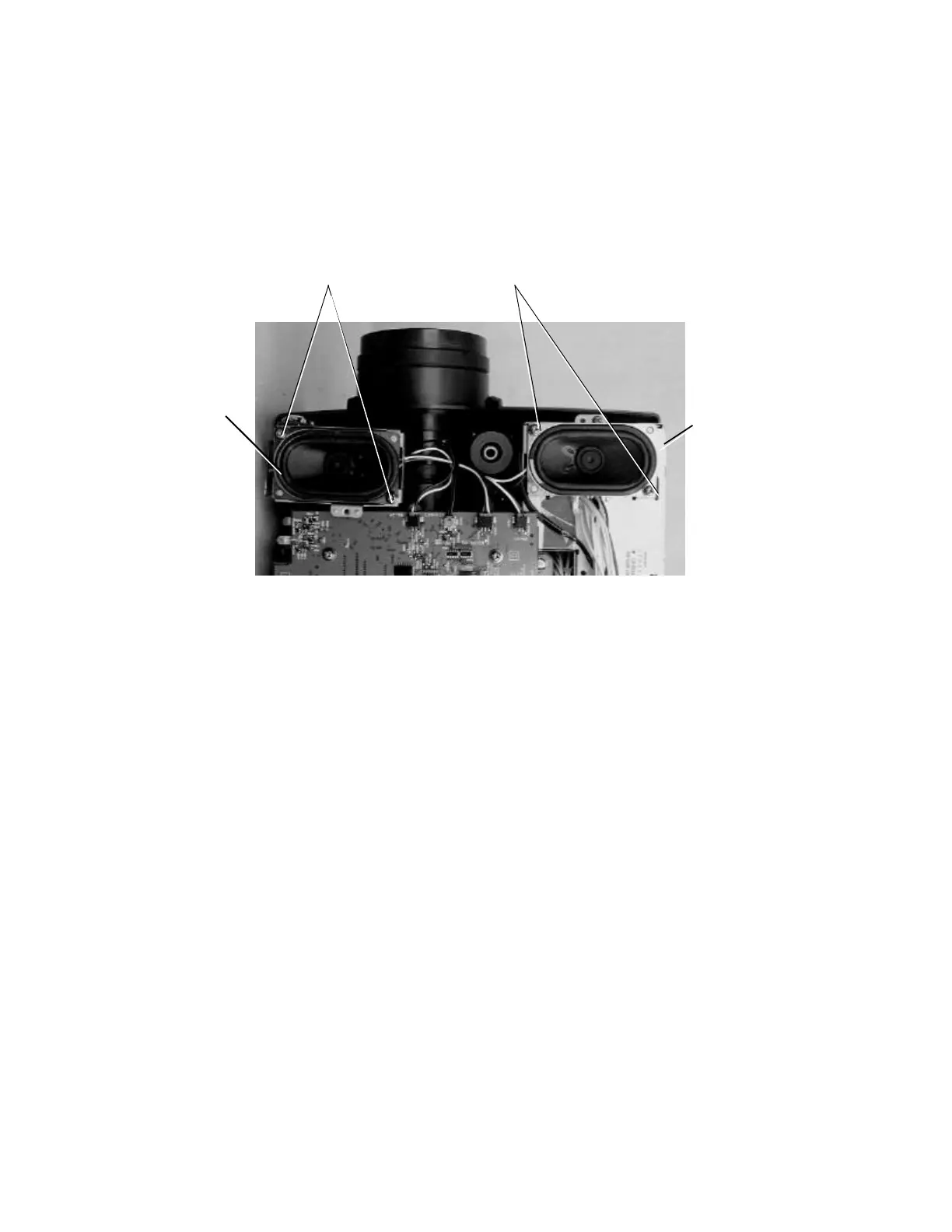

Screws Screws
Figure 3-15
Right Speaker
1. Remove 2 screws mounting the right speaker unit.
Screws: +M3×4 F/ZN: P/N1021795
(mounting torque: 4.0 kg. cm = 3.5 lb. inch)
2. Disconnect the speaker cable from CN602 on the main board.
Left Speaker Unit
1. Remove 2 screws mounting the left speaker unit.
Screw: +M3×4 F/ZN: P/N1021795
(mounting torque: 4.0 kg. cm = 3.5 lb. inch)
2. Disconnect the speaker cable from CN601 on the main board.
Caution:
1) The speaker unit has a permanent magnet. Keep it away from electromagnetic media
such as floppy disks and magnetic cards.
2) When mounting a speaker, align the 2 speaker holes with those of the frame, then
secure them with same tightening torque.
Left Speaker Right Speaker
