3.4.2.20 CARTRIDGE COVER SENSOR
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
6. Remove the FRONT COVER. (p86)
7. Remove the RIGHT LOWER COVER. (p96)
8. Remove the IH COVER. (p89)
9. Release the cable from the four clamps.
10. Disconnect the cable from the Relay Connector (No.1), and remove the
CARTRIDGE COVER SENSOR.

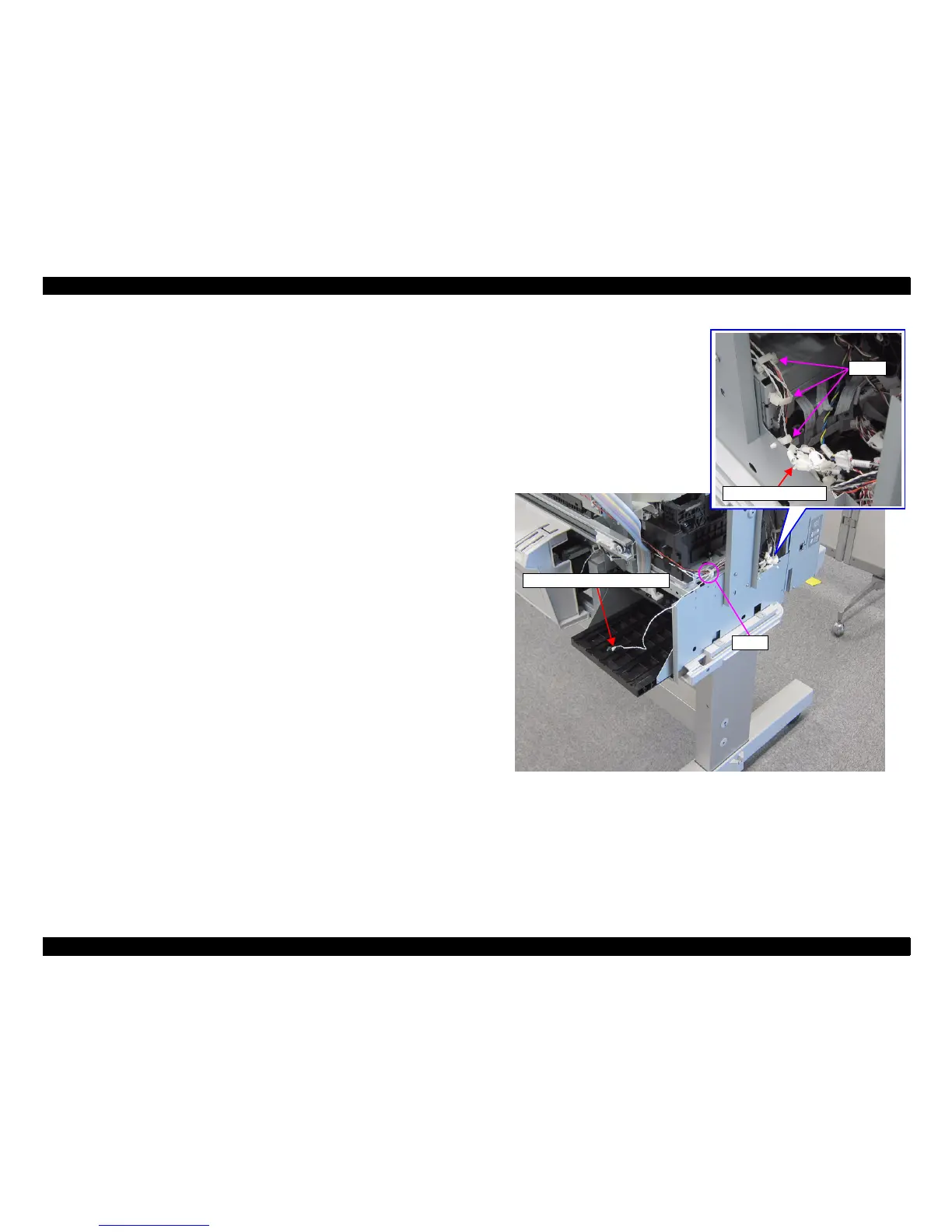

Figure 3-33. Removing the CARTRIDGE COVER SENSOR
Clamps
Relay Connector (No.1)
CARTRIDGE COVER SENSOR
Clamp
