SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Parts Diagram 71
Confidential
3.2 Parts Diagram

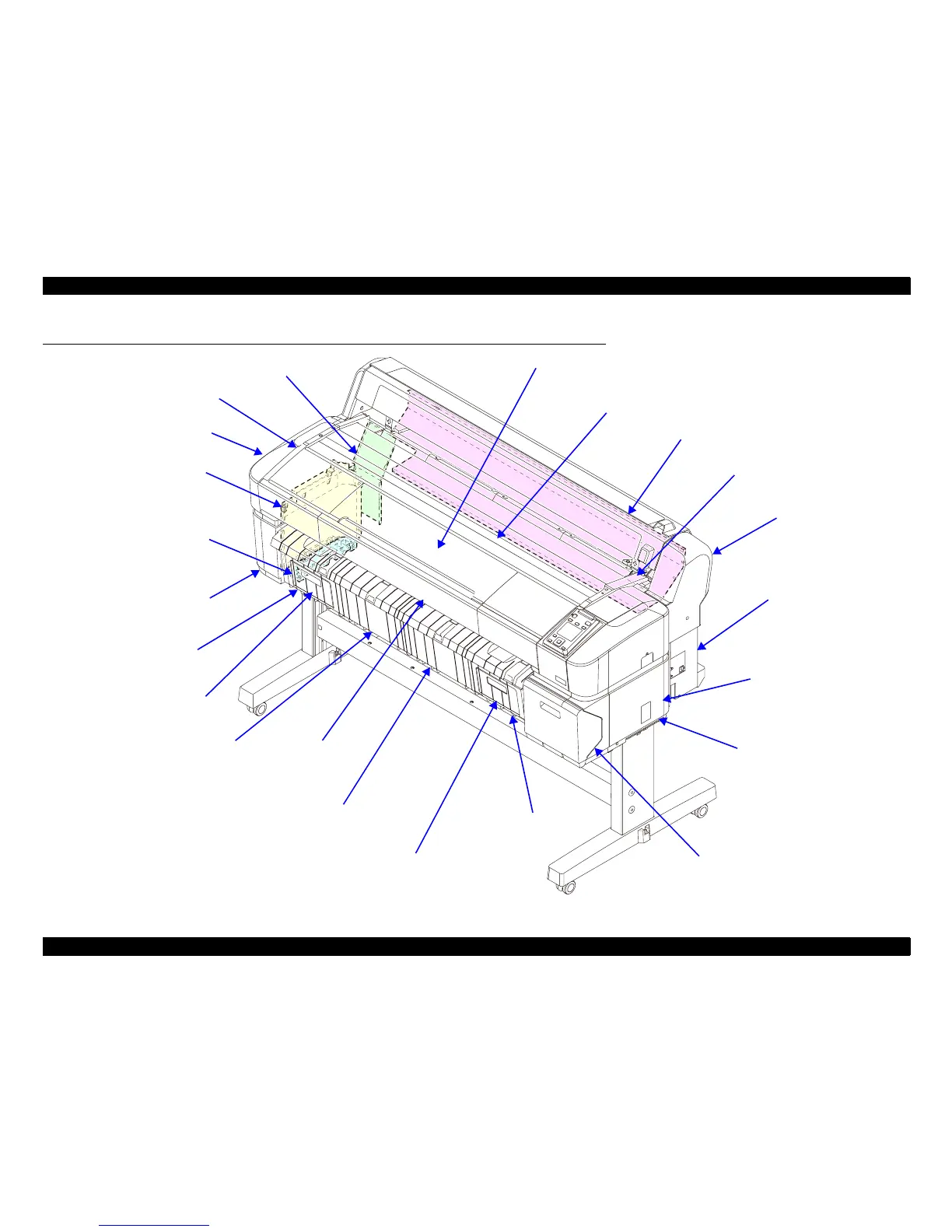

Figure 3-2. Housing
RIGHT UPPER COVER
& RIGHT ROLL
COVER (p. 95)
REAR ROLL COVER FRAME (p. 105)
REAR RIGHT LOWER
COVER (p. 99)
RIGHT LOWER COVER
(p. 96)
RIGHT BASE COVER (p. 97)
IH COVER (p. 89)
LOWER PAPER GUIDE
(p. 87)
LOWER PAPER GUIDE
(p. 87)
LOWER PAPER GUIDE B
(p. 88)
LOWER PAPER GUIDE B
(p. 88)
FRONT LEFT LOWER COVER
(p. 103)
LEFT LOWER COVER
(p. 98)
REAR LEFT LOWER
COVER (p. 104)
LEFT BASE COVER (p. 102)
FRONT COVER
(p. 86)
UPPER LEFT COVER
(p. 100)
LEFT UPPER COVER & LEFT
ROLL COVER (p. 101)
UPPER SUPPORT R COVER (p. 94)
TOP COVER (p. 85)
PRINTER COVER (p. 93)
WASTE INK TANK COVER
(p. 92)
WASTE INK TANK COVER
(p. 92)
