Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 109
Confidential
3.4.2.23 INTERLOCK SWITCH
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the RIGHT UPPER COVER & RIGHT ROLL COVER. (p95)
6. Remove the REAR RIGHT LOWER COVER. (p99)
7. Remove the RIGHT LOWER COVER. (p96)
8. Remove the FRONT COVER. (p86)
9. Remove the screw, and remove the INTERLOCK SWITCH.
A) Silver M3x8 S-tite screw with built-in washer: 1 pcs
10. Release the cable from the four clamps at front side.

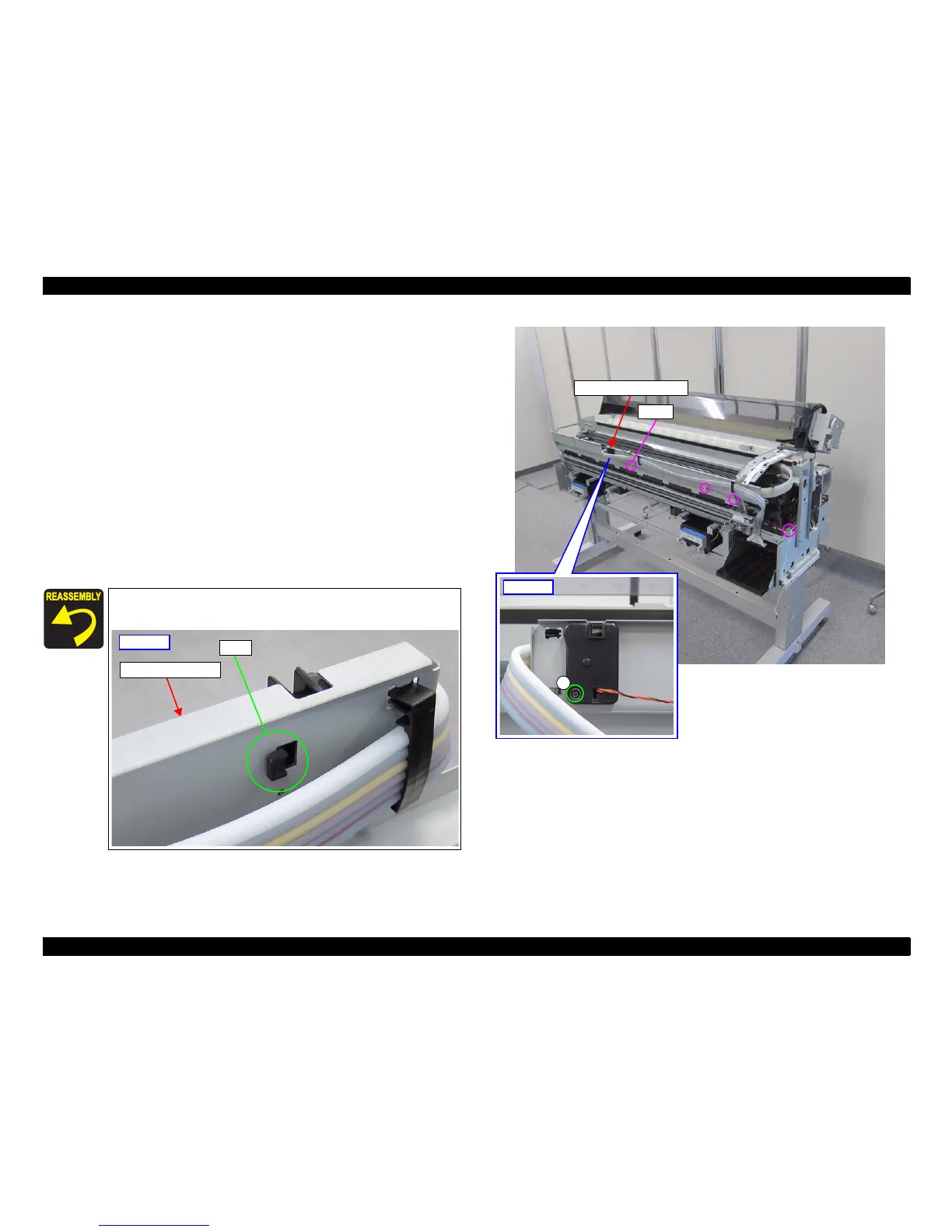

Figure 3-36. Removing the INTERLOCK SWITCH
Insert the hook of the INTERLOCK SWITCH to the hole on the
Front Support Frame.
Hook
Front Support Frame
Back side
INTERLOCK SWITCH
Clamp
Front side
A
