Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 86
Confidential
3.4.2.2 FRONT COVER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Open the PRINTER COVER.
5. Remove the seven screws, and remove the FRONT COVER.
A) Silver M3x8 S-tite screw with built-in washer: 7 pcs

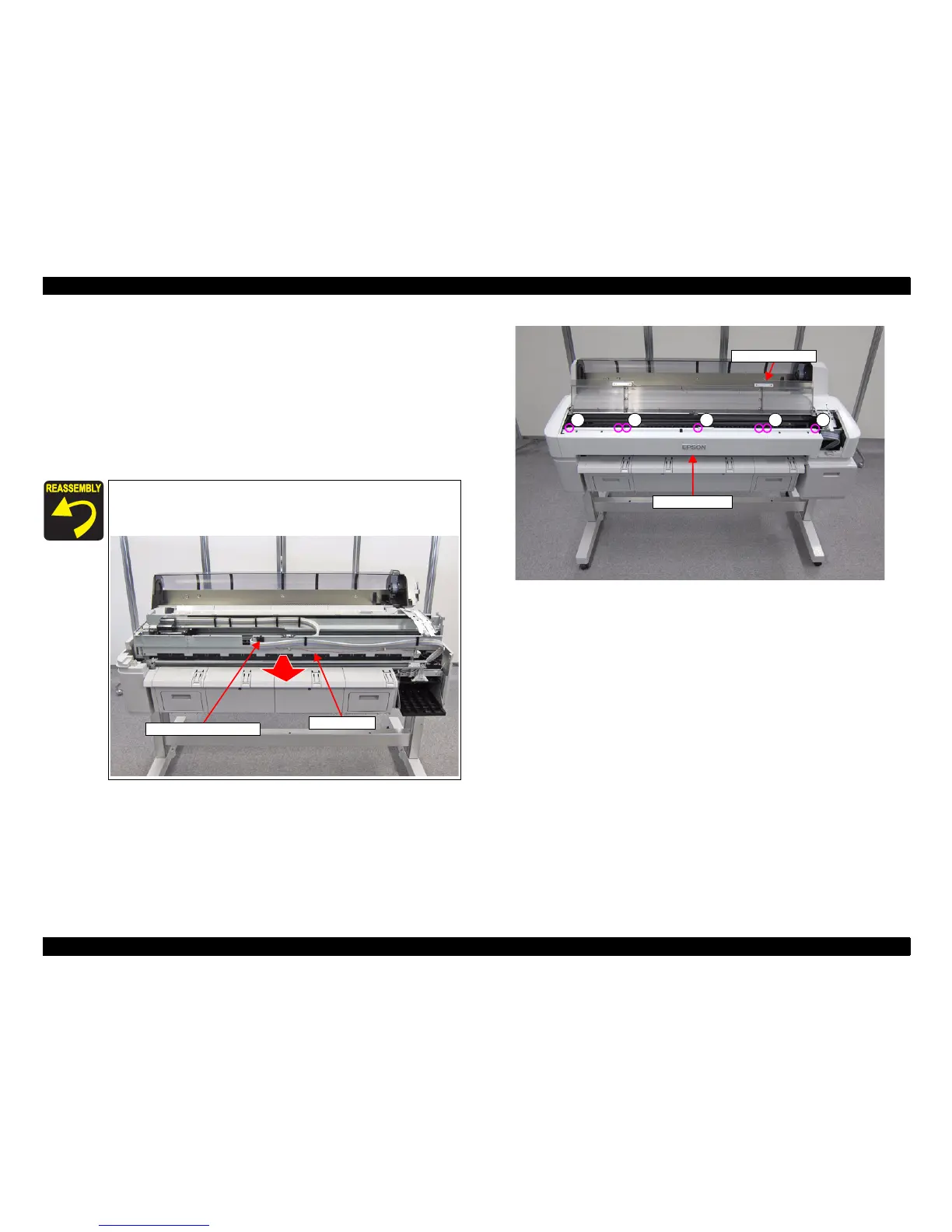

Figure 3-12. Removing the FRONT COVER
To ensure the INTERLOCK SWITCH can detect the flag of
PRINTER COVE, tighten the screws which secure the FRONT
COVER while pulling the Front Frame toward you.
Front Frame
INTERLOCK SWITCH
FRONT COVER
A A A A A
PRINTER COVER
