Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 166
Confidential
3.4.5.3 PF ENCODER
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the REAR LEFT LOWER COVER. (p104)
8. Remove the LEFT LOWER COVER. (p98)
9. Remove the screw that secures the PF Encoder Assy.
A) Silver M3x8 S-tite screw with built-in washer: 1 pcs
10. Disengage the two hooks of the PF Encoder Assy, and remove the PF Encoder
Assy.

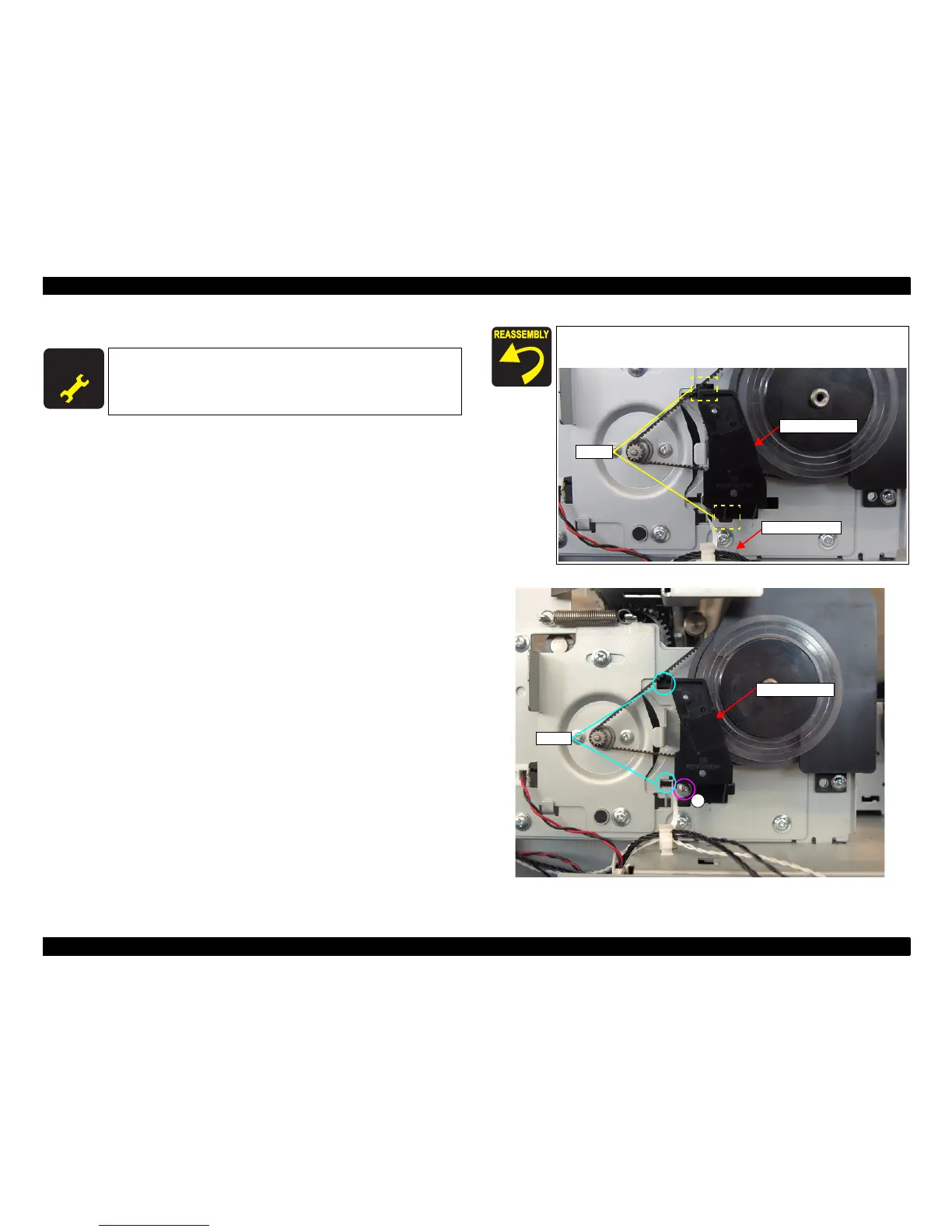

Figure 3-119. Removing the PF Encoder Assy
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p199) and make sure to
perform the specified operations including required adjustment.
Engage the two hooks on the PF Encoder Assy under the PF Roller
Frame by sliding the assy.
PF Encoder Assy
Hooks
PF Roller Frame
A
Hooks
PF Encoder Assy
