Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
ADJUSTMENT Head Related Checks and Adjustments 257
Confidential
4.11.6.2 Head Slant Manual Adjustment (PF direction)
1. Turn the printer ON.
2. Load the paper into the printer.
3. Start the Service Program and select Head slant manual adjustment (PF
direction).
4. Click [Run].
The adjustment pattern will be printed.

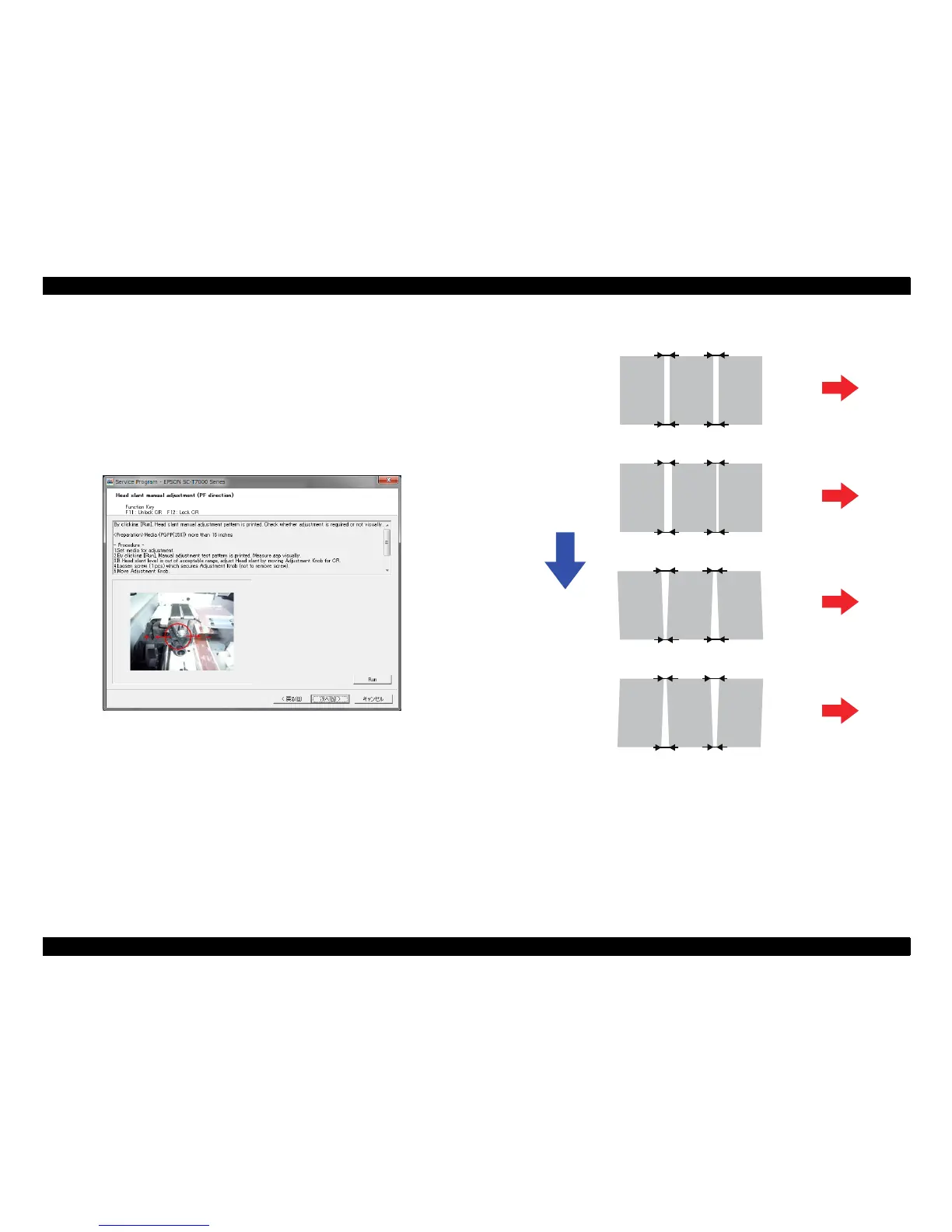

Figure 4-50. [Head slant manual adjustment (PF direction)] Screen
5. Examine the printed pattern visually.
See if the gaps between the squares are parallel. If so, no adjustment is required. If
not, make the adjustment referring to 4.11.6.3Correcting Head Slant (PF direction)
(Page 258).
Figure 4-51. Judgement
OK
A
B
C
D
A
B
C
D
A
B
C
D
A
B
C
D
A = B
C = D
OK
A = B
C = D
Paper feed direction
NG
A ≠ B
C ≠ D
NG
A ≠ B
C ≠ D
It does not matter if the gap widths
(the width of A-B and that of C-D)
differ.
