Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
ADJUSTMENT CR Related Adjustments 245
Confidential
4.10.9 PG Adjustment
REQUIRED TOOLS
Thickness Gauge
STANDARD VALUE
 2.5 go
 2.8 no-go
EXECUTION MODE
Normal mode
PROCEDURE
1. Remove the following parts in advance.
 RIGHT UPPER COVER (P. 95)
2. Turn the printer ON.
3. When any paper is loaded, remove it.
4. Check that the mark on the top of the APG cam is "--".
5. Unlock the CR UNIT. (P. 83)
6. Open the PRINTER COVER.

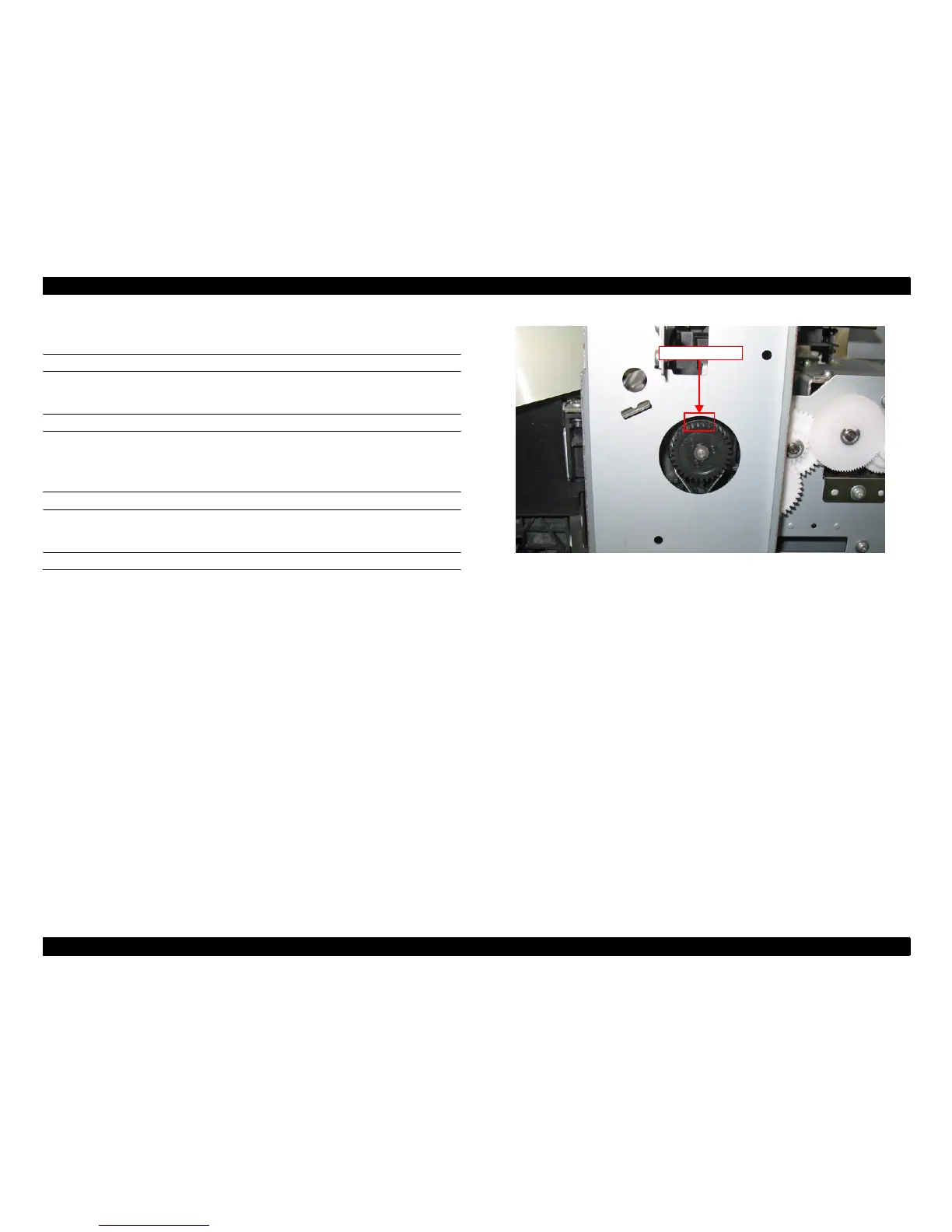

Figure 4-31. APG cam position checking point
T
y
p
-
-
+
+
+
Mark on the top
-
