Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 163
Confidential
3.4.5 Paper Feed Mechanism
3.4.5.1 PF MOTOR
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the REAR LEFT LOWER COVER. (p104)
8. Remove the LEFT LOWER COVER. (p98)
9. Remove the Tension Spring.
10. Remove the two screws, and remove the PF Motor Mounting Plate.
A) Silver M4x8 S-tite screw with built-in washer: 2 pcs

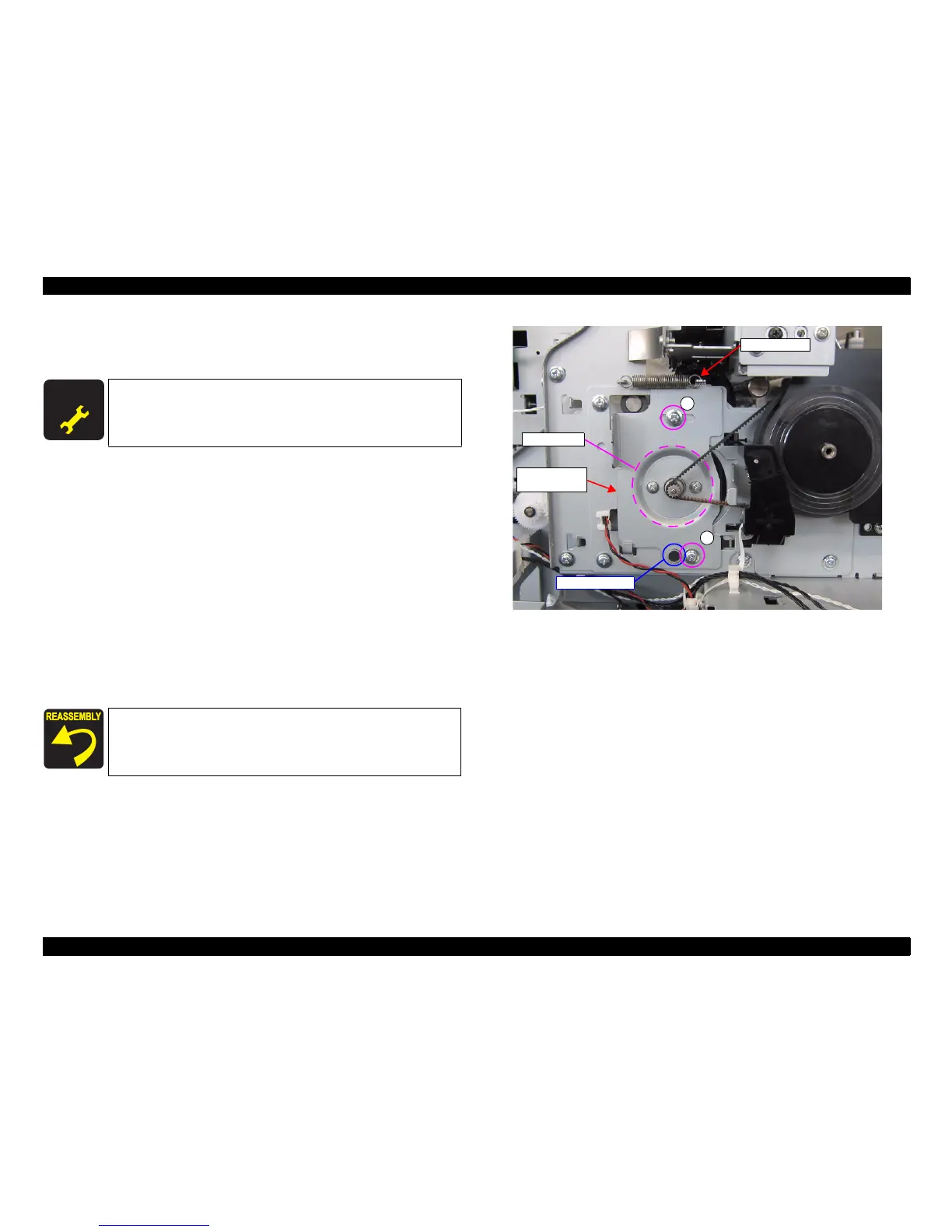

Figure 3-115. Removing the PF Motor Mounting Plate
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p199) and make sure to
perform the specified operations including required adjustment.
Pay attention to the positioning point (See Figure 3-115).
PF Motor
Mounting Plate
Tension Spring
PF MOTOR
A
A
Positioning point
