Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 185
Confidential
3.4.8 Auto Take-up Reel
3.4.8.1 TAKE-UP REEL COVER
1. Remove the two screws that secure the Auto Take-up Reel.
A) Silver, Phillips, Pan S-tite with S.W & P.W. M4x10: 2 pcs
2. Hold up the Auto Take-up Reel to disengage the hook, and remove the Auto Take-
up Reel.
3. Remove the four screws that secure the TAKE-UP REEL COVER, and remove
the TAKE-UP REEL COVER from the Auto Take-up Reel.
B) Black, Phillips, Pan P-tite M3x10: 4 pcs
4. Disengage the six hooks that secure the Panel Cover from inside, and remove the
Panel Cover from the TAKE-UP REEL COVER.

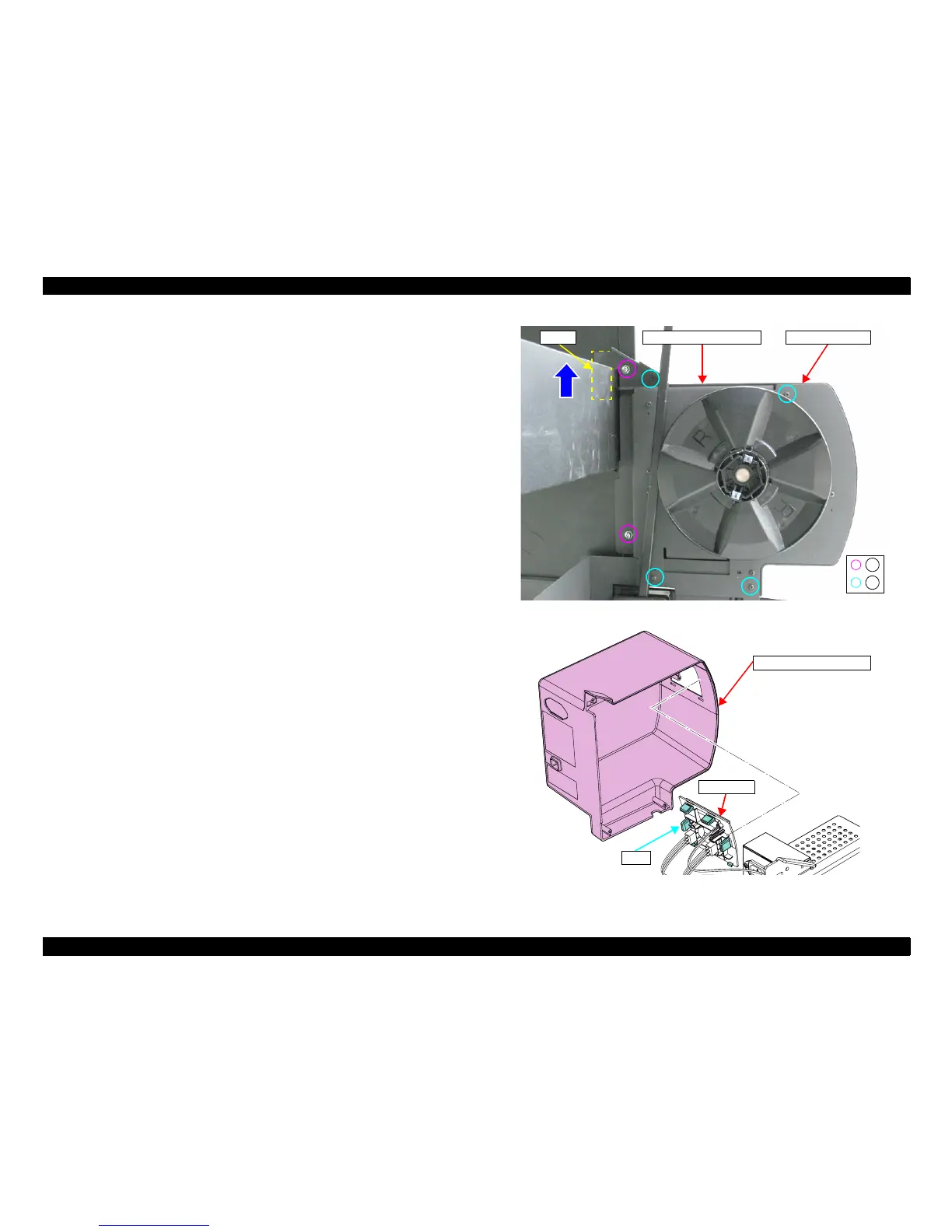

Figure 3-149. Removing the Auto Take-up Reel
Figure 3-150. Removing the TAKE-UP REEL COVER
Auto Take-up Reel
A
TAKE-UP REEL COVER
B
Hook
Panel Cover
TAKE-UP REEL COVER
Hook
