SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 187
Confidential
3.4.8.3 TAKE-UP REEL LED
1. Remove the Flange from the Auto Take-up Reel.
2. Remove the TAKE-UP REEL COVER.
(p185)
3. Disconnect the connector (CN1) on the TAKE-UP REEL MAIN BOARD.
4. Remove the four screws that secure the Power Supply Unit, and remove the Power
Supply Unit.
A) Black, Phillips, Bind S-tite M3x6: four pieces: 4 pcs
5. Disconnect the connector (CN23) on the TAKE-UP REEL MAIN BOARD.
6. Release the harness from the cable guide, and remove the TAKE-UP REEL LED.

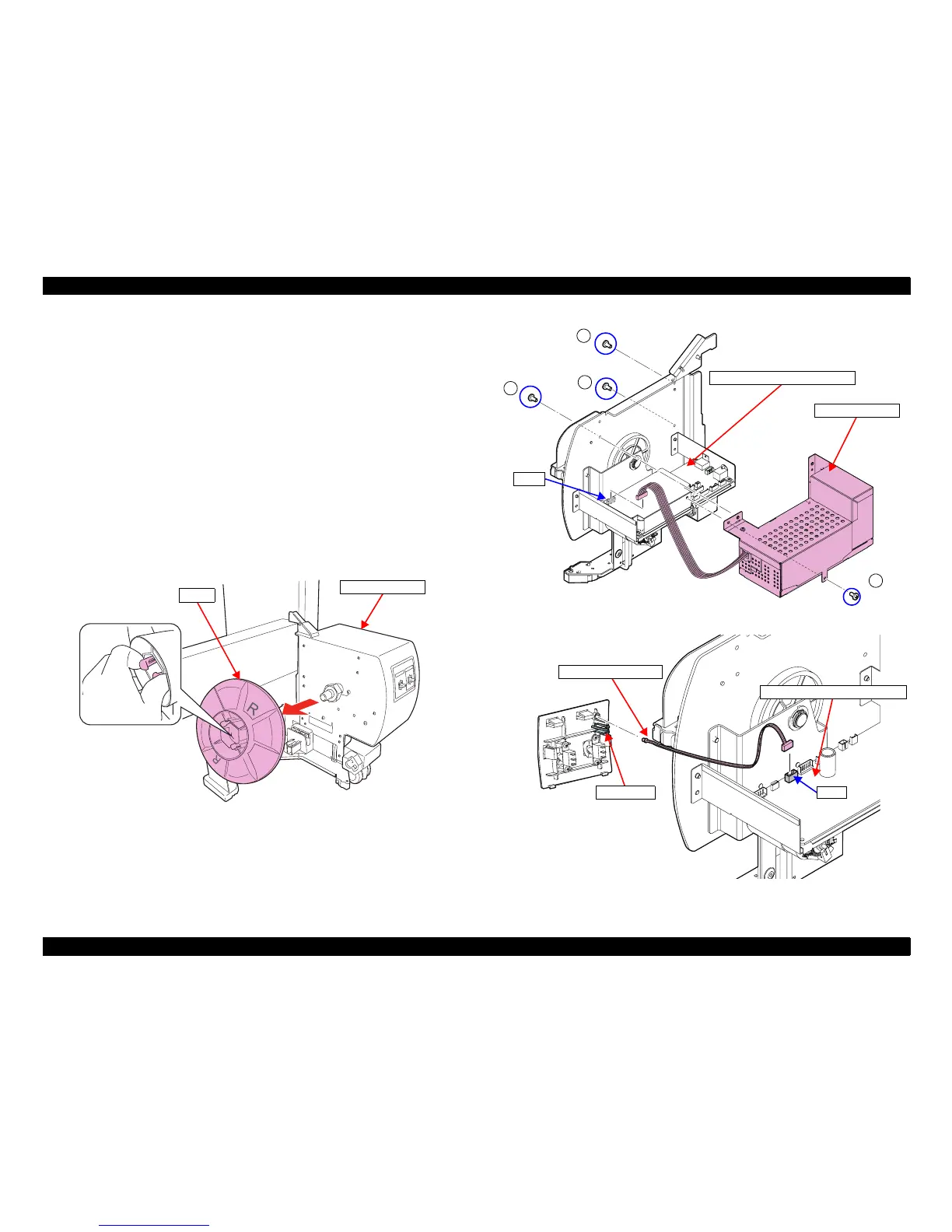

Figure 3-152. Removing the Flange
Figure 3-153. Removing the Power Supply Unit
Figure 3-154. Removing the TAKE-UP REEL LED
Flange
Auto Take-up Reel
CN1
Power Supply Unit
A
A
A
A
TAKE-UP REEL MAIN BOARD
TAKE-UP REEL LED
Cable guide
TAKE-UP REEL MAIN BOARD
CN23
