SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
ADJUSTMENT Media Feed Related Checks and Adjustments 269
Confidential
4.13.6 Rear AD Adjustment
REQUIRED TOOLS
Standard Sheet (JETRAS JP-D300S)
EXECUTION MODE
Serviceman Mode
STANDARD VALUE
83 to 129
PROCEDURE
1. Turn the printer ON in the Serviceman Mode. Turn the power ON while pressing
[Menu] + [Back] + [OK].
2. Select Mecha Adjustment → Rear AD.
3. Press [OK] while [Enter] Start is displayed. Confirm that the control panel
displays Retry AD Adjust.
4. Press [Back] several times to return to the top menu.
5. Select Rear AD again, and press [Paper Set] to release the paper presser when
[Enter] Start is displayed.
6. Set the standard sheet and press [Paper Set].
7. Select Mecha Adjustment → Rear AD and press [OK] when [Enter] Start is
displayed. Check that the triple-digit displayed on the control panel is within the
standard. When Retry AD Adjust is displayed, check that the standard sheet has
no abnormality (such as, breaks dirt, and wrinkles), and acquire the AD values
again.
8. Press [Back] several times to return to the top menu.
9. Press [Paper Set], and release the paper presser.
10. Remove the standard sheet and turn the printer OFF.

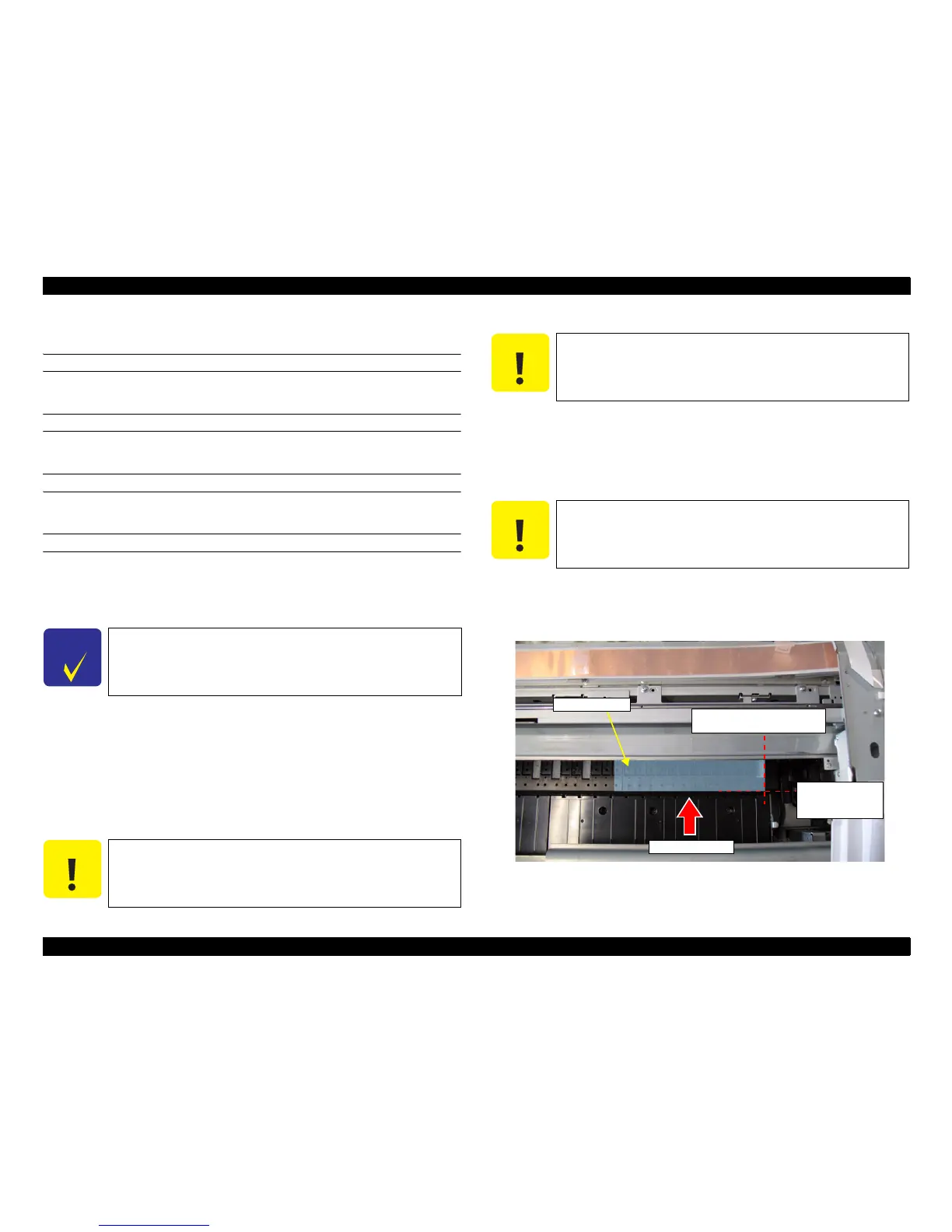

Figure 4-68. Setting Position of the Standard Sheet
C H E C K
P O I N T
The following procedure must be done without the standard sheet.
C A U T I O N
Set the standard sheet with its matte surface up.
C A U T I O N
When the following procedure is conducted, make sure not to
remove the exterior parts to acquire correct AD values.
C A U T I O N
When the Retry AD Adjust is displayed again, the PE SENSOR is
broken. Replace the PE SENSOR with a new one and carry out the
adjustment again.
Standard sheet
Setting direction
Align this end with
the stepped end of
the platen.
Align the right end with the 1st
row of the pressure roller
To Next Page
