SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 168
Confidential
3.4.5.4 PF TIMING BELT
1. Remove the UPPER LEFT COVER. (p100)
2. Remove the UPPER SUPPORT R COVER. (p94)
3. Remove the PANEL BOARD. (p120)
4. Remove the TOP COVER. (p85)
5. Remove the FRONT COVER. (p86)
6. Remove the LEFT UPPER COVER & LEFT ROLL COVER. (p101)
7. Remove the REAR LEFT LOWER COVER. (p104)
8. Remove the LEFT LOWER COVER. (p98)
9. Remove the PF ENCODER. (p166)
10. Remove the Tension Spring. (p163)
11. Remove the PF TIMING BELT from the pinion gear of the PF MOTOR.
12. Remove the screw, and remove the PF Shade Cover.
A) Silver M3x8 S-tite screw with built-in washer: 1 pcs

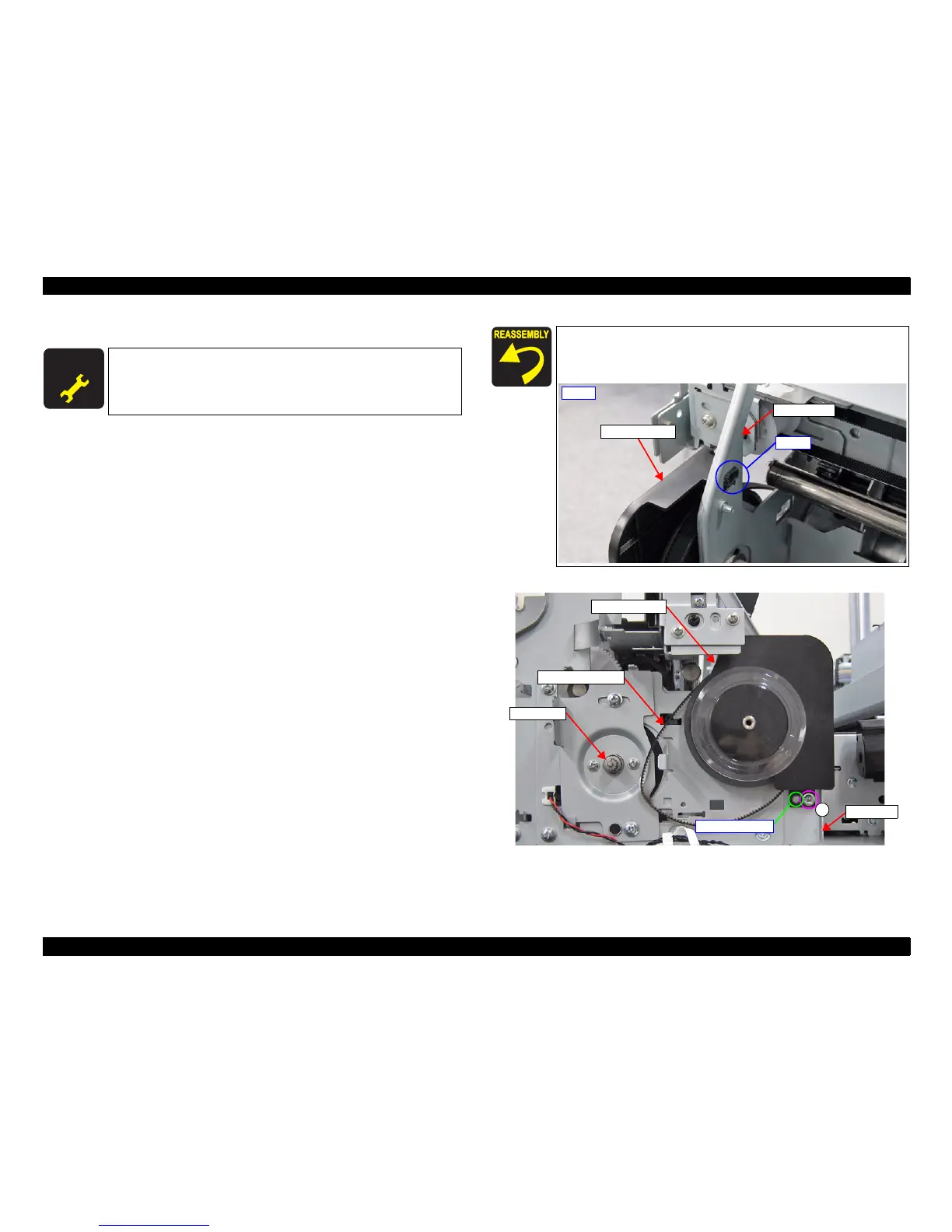

Figure 3-121. Removing the PF Shade Cover
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p199) and make sure to
perform the specified operations including required adjustment.
Pay attention to the positioning point (See Figure 3-121).
Engage the hook on the PF Shade Cover into the hole on the
Left Frame.
PF Shade Cover
Inside
Left Frame
Hook
PF TIMING BELT
A
Pinion gear
PF Shade Cover
Left Frame
Positioning point
To Next Page
