Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 164
Confidential
11. Remove the two screws, and remove the PF MOTOR from the PF Motor
Mounting Plate.
A) Silver M3x5 Machine screw: 2 pcs
12. Release the cable from the Edging Saddle.

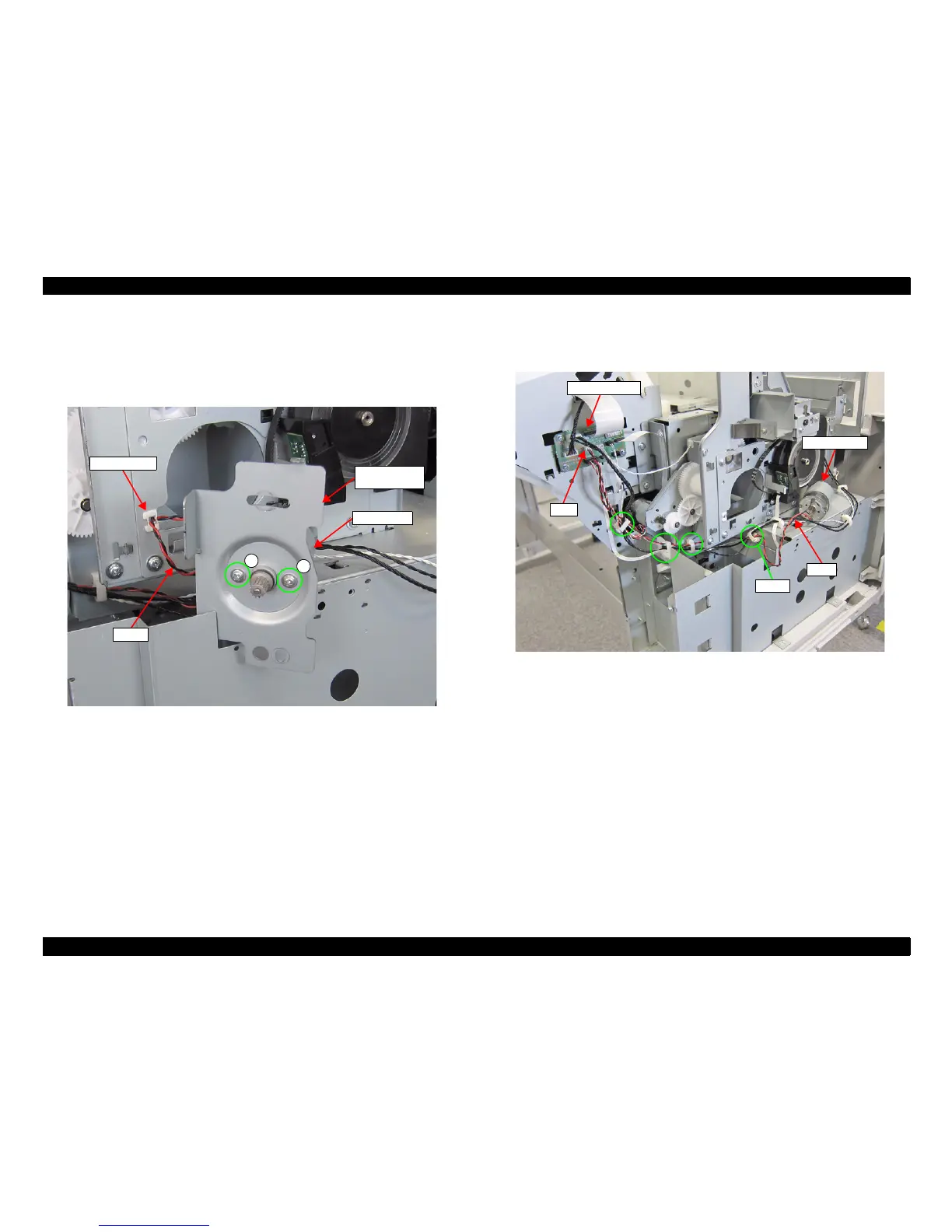

Figure 3-116. Removing the PF MOTOR
13. Disconnect the cable from the connector (CN1) of the SUB-B BOARD.
14. Release the cable from the four clamps, and remove the PF MOTOR.
Figure 3-117. Releasing the Cable
PF Motor
Mounting Plate
B
PF MOTOR
B
Edging Saddle
Cable
PF MOTOR
SUB-B BOARD
Clamp
Cable
CN1
