Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 162
Confidential
20. Disconnect the FFC from the PW SENSOR, and remove the PW SENSOR.

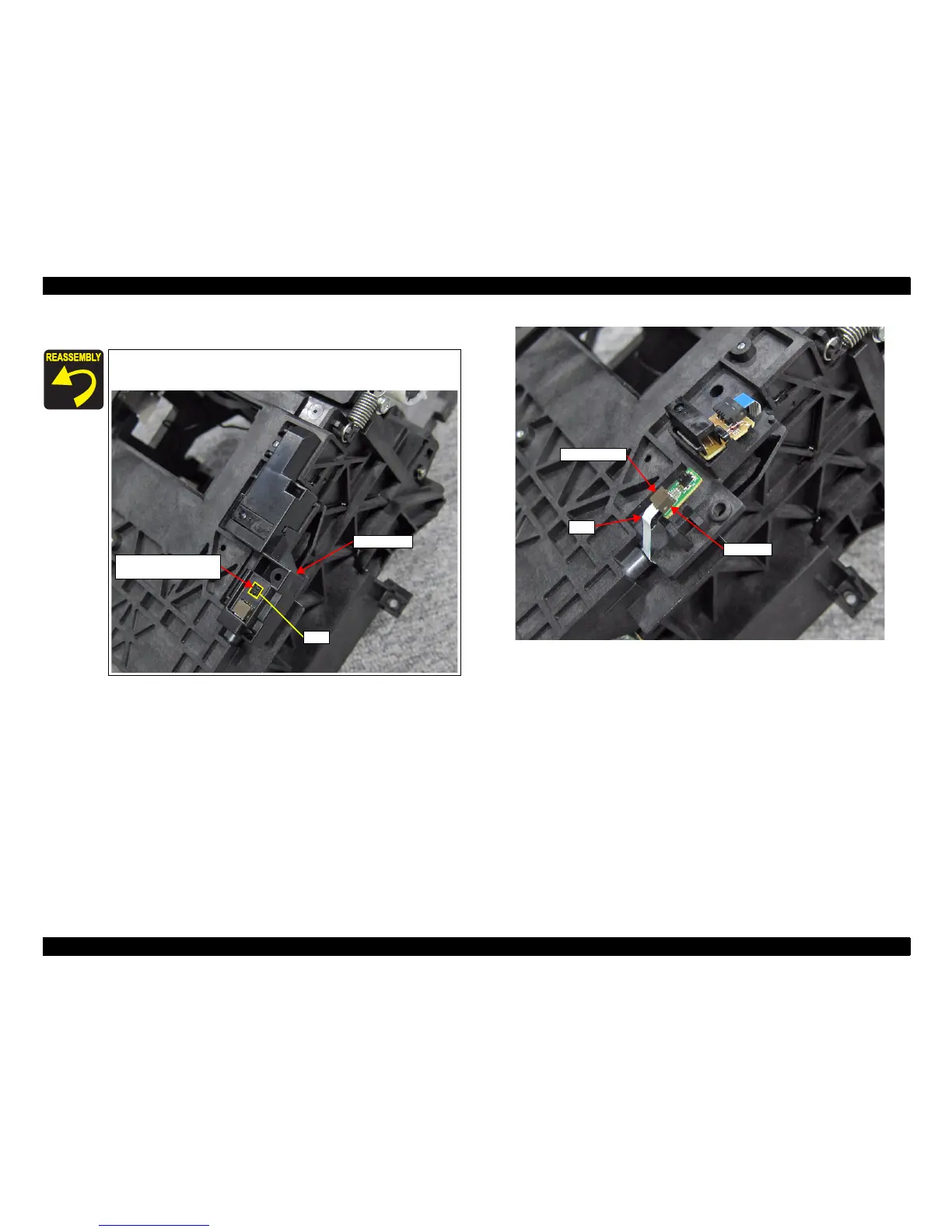

Figure 3-114. Removing the PW SENSOR
Make sure that you can see the light emitter/receiver of the PW
SENSOR through the hole on the Sensor Cover.
Sensor Cover
Hole
PW SENSOR
(Light emitter/receiver)
Connector
FFC
PW SENSOR
