Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 110
Confidential
11. Disconnect the cable from the connector (CN20) of the MAIN BOARD.
12. Release the cable of the INTERLOCK SWITCH from 12 clamps.

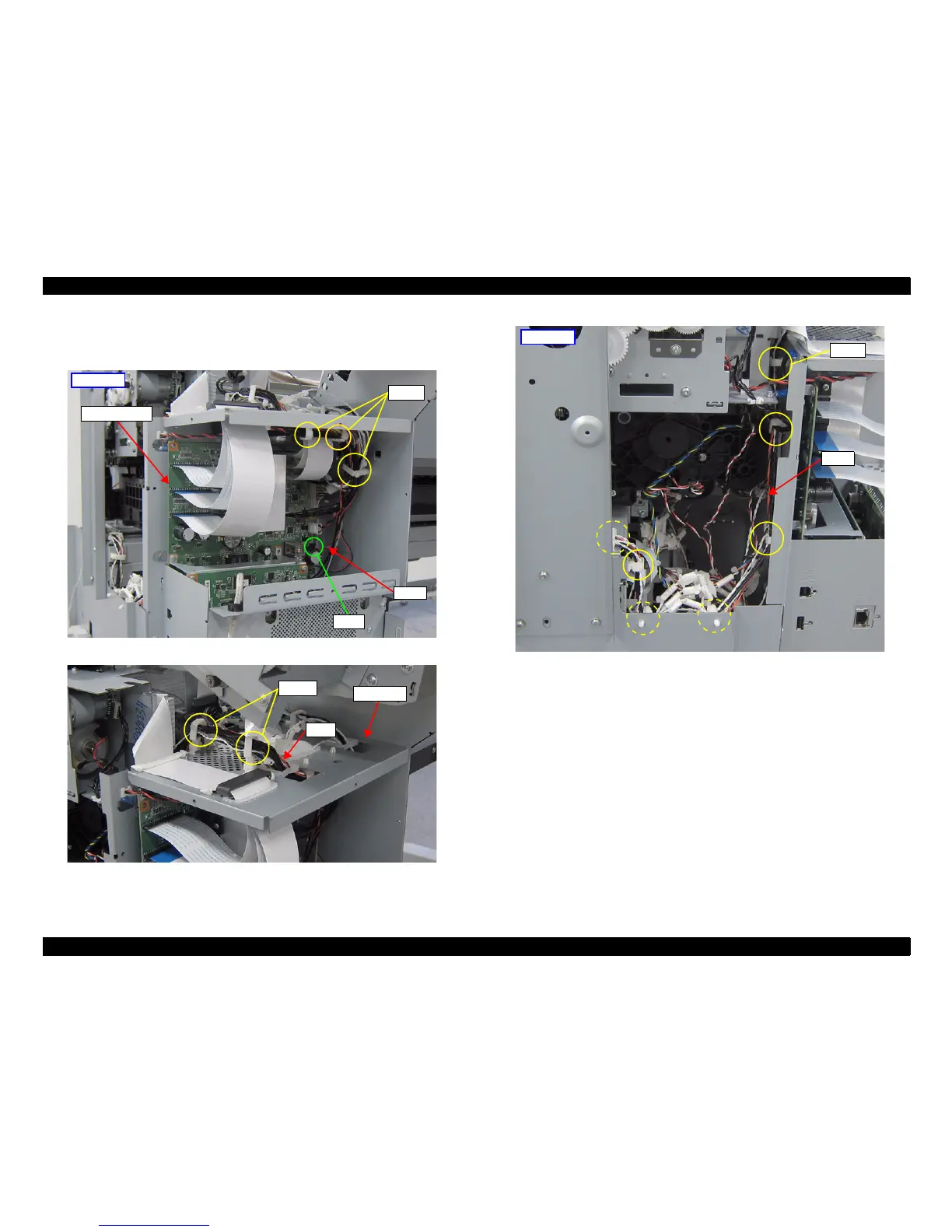

Figure 3-37. Releasing the Cable (MAIN BOARD)
Figure 3-38. Releasing the Cable (Top of the Board Box)
Figure 3-39. Releasing the Cable (Right side)
MAIN BOARD
CN20
Clamps
Cable
Back side
Clamps
Board Box
Cable
Clamp
Cable
Right side
