11. Disconnect all cables and FFCs from the MAIN BOARD.
12. Remove the seven screws, and remove the MAIN BOARD.
C) Silver M3x6 screw: 6 pcs
D) Silver M2.5x6 Bind machine screw: 1 pcs

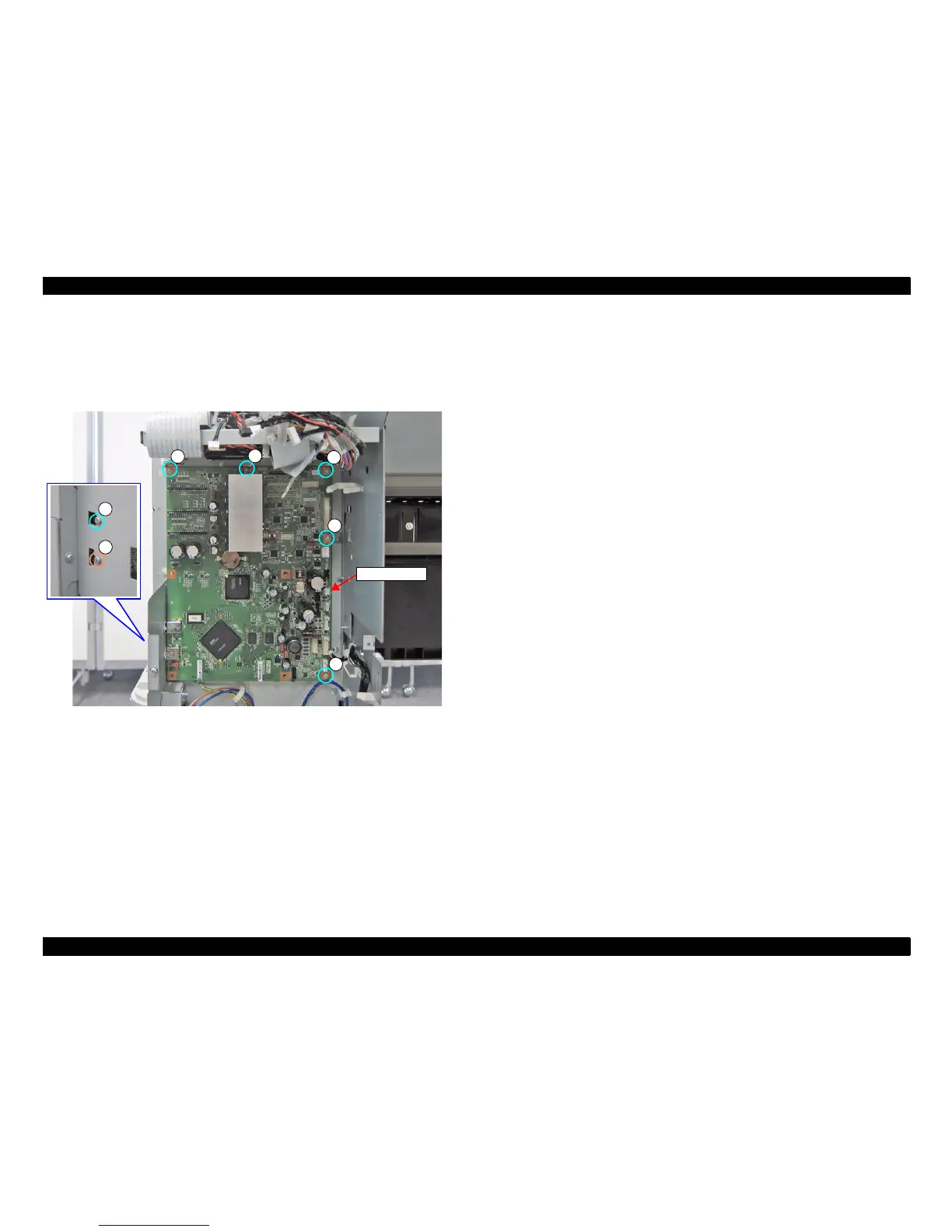

Figure 3-41. Removing the MAIN BOARD
C
C
C
C
C
C
D
MAIN BOARD
To Next Page
