Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 116
Confidential

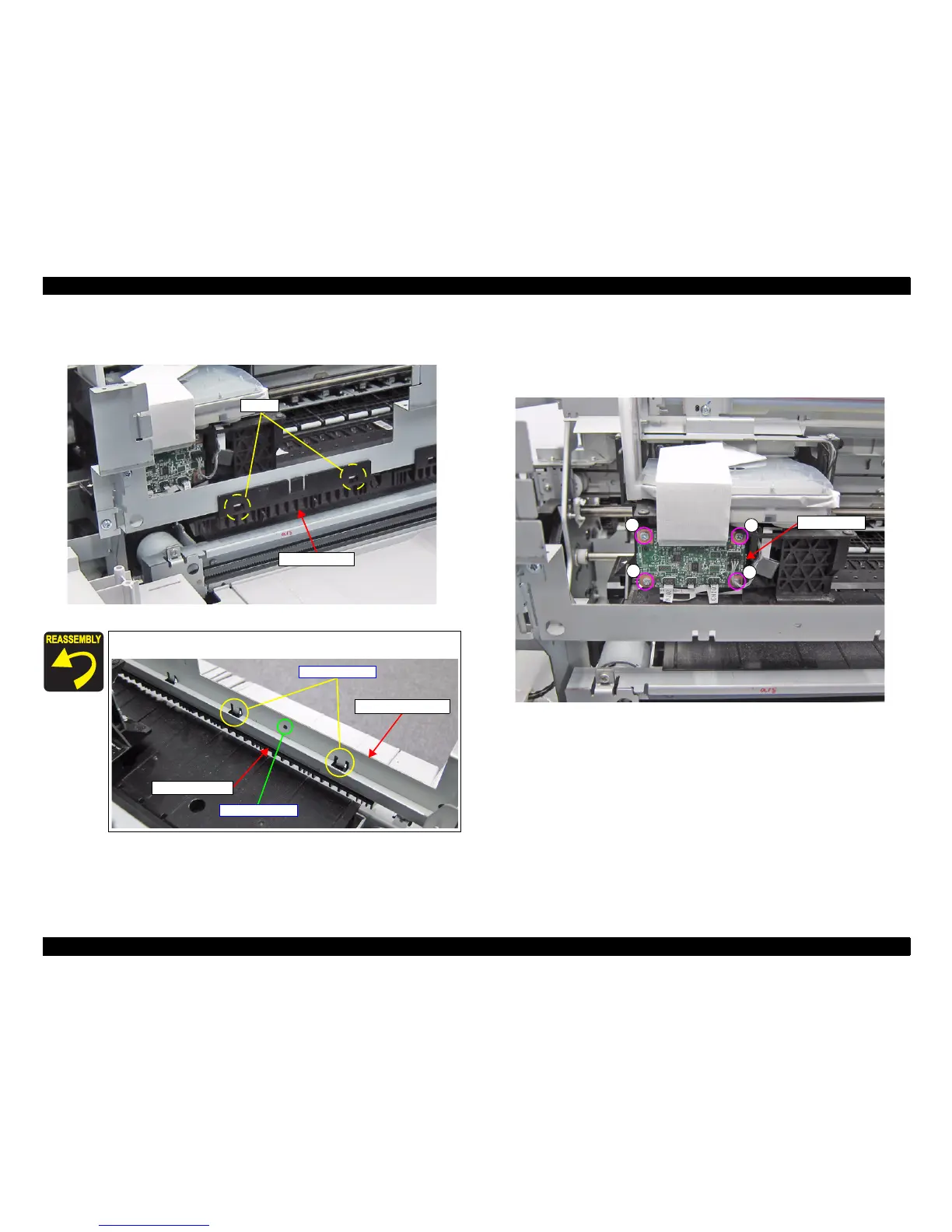

12. Disengage the two hooks of the Upper EJ Holder, and remove the Upper EJ
Holder.
Figure 3-45. Removing the Upper EJ Holder
13. Disconnect all cables and FFCs connected to the SUB BOARD.
14. Remove the four screws, and remove the SUB BOARD.
B) Silver M3x8 P-tite screw: 4 pcs
Figure 3-46. Removing the SUB BOARD
Pay attention to the positioning points (See below figure).
Hooks
Upper EJ Holder
Upper Support Frame
Upper EJ Holder
Positioning points
Positioning point
A
A
A
A
SUB BOARD
