Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 119
Confidential
10. Remove the two screws that secure the PS Plate, and pull the PS Plate slightly
toward you.
C) Silver M3x6 screw: 2 pcs
11. Disconnect the cables from the connectors (CN1, CN51) of the PSH BOARD, and
remove the PS Plate.

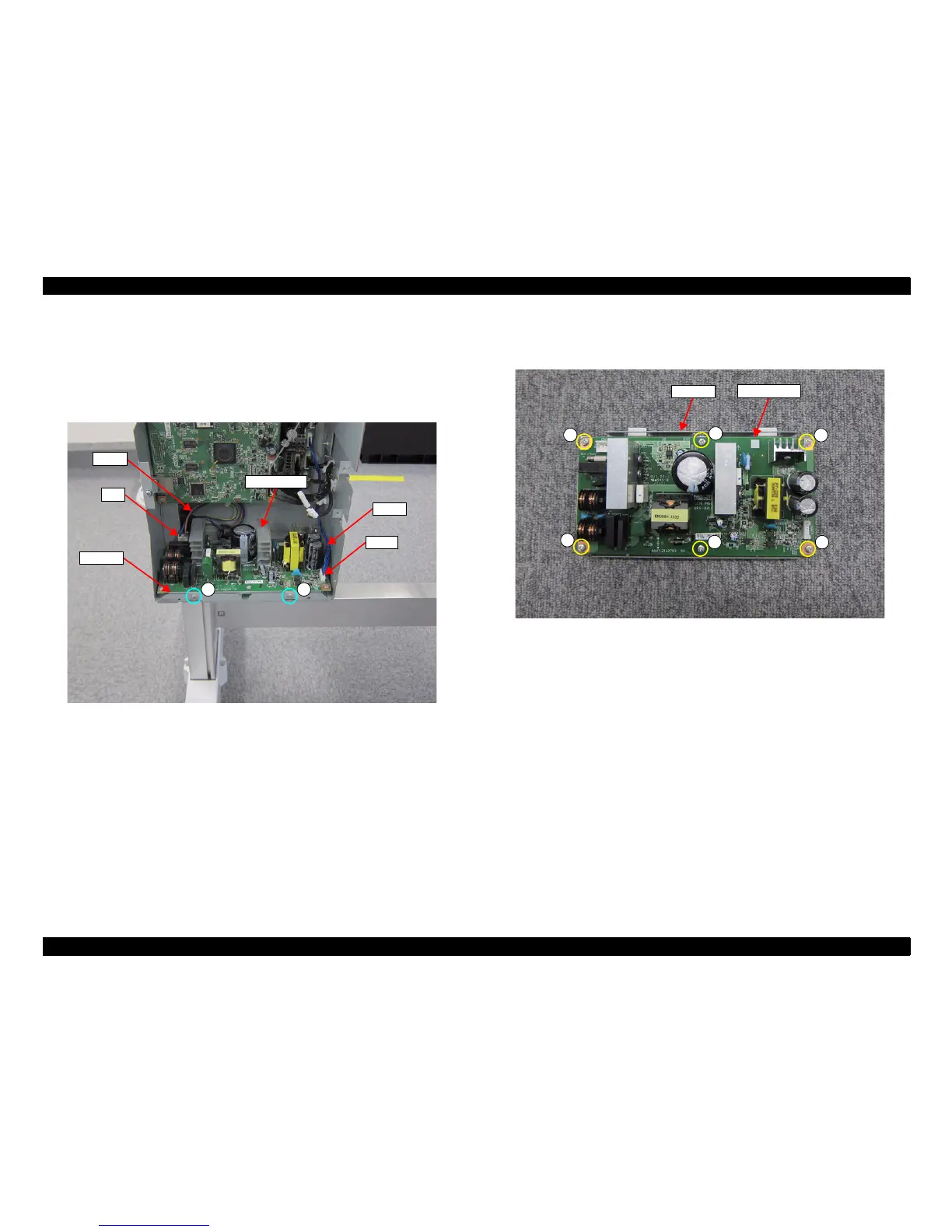

Figure 3-49. Removing the PS Plate
12. Remove the six screws, and remove the PSH BOARD from the PS Plate.
D) Silver M3x6 screw: 6 pcs
Figure 3-50. Removing the PSH BOARD
PSH BOARD
CC
CN51
CN1
PS Plate
Cable
Cable
PSH BOARD
D
D
D
D
D
D
PS Plate
