SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 121
Confidential
4. Disconnect the FFC from the connector (CN3) of the PANEL BOARD.
5. Remove the six screws that secure the PANEL BOARD.
B) Silver M3x8 P-tite screw: 6 pcs
6. Disengage the two hooks of the Panel Housing, and remove the PANEL BOARD.

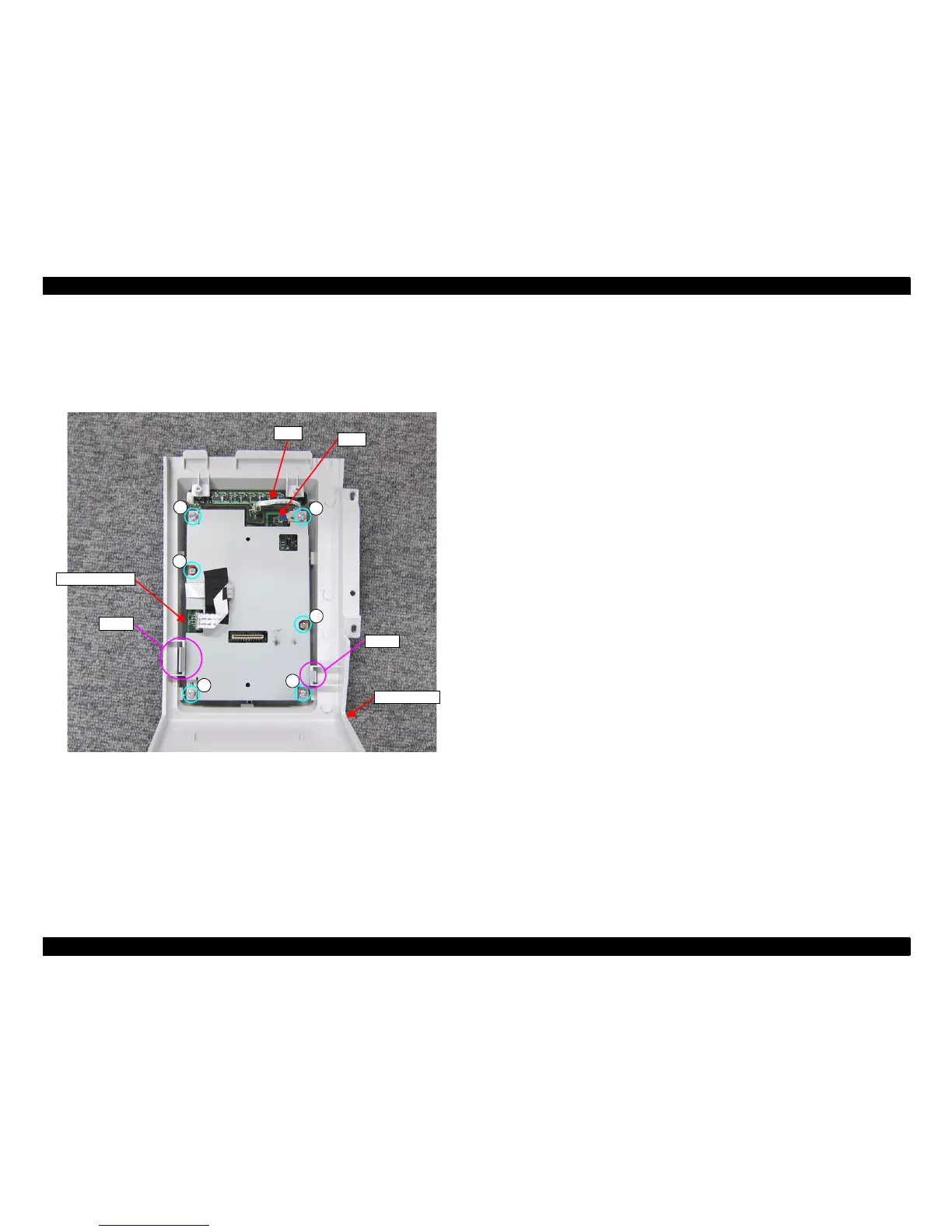

Figure 3-52. Removing the PANEL BOARD
B
B
B
B
B
B
FFC
CN3
Hook
Hook
PANEL BOARD
Panel Housing
To Next Page
