SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 130
Confidential

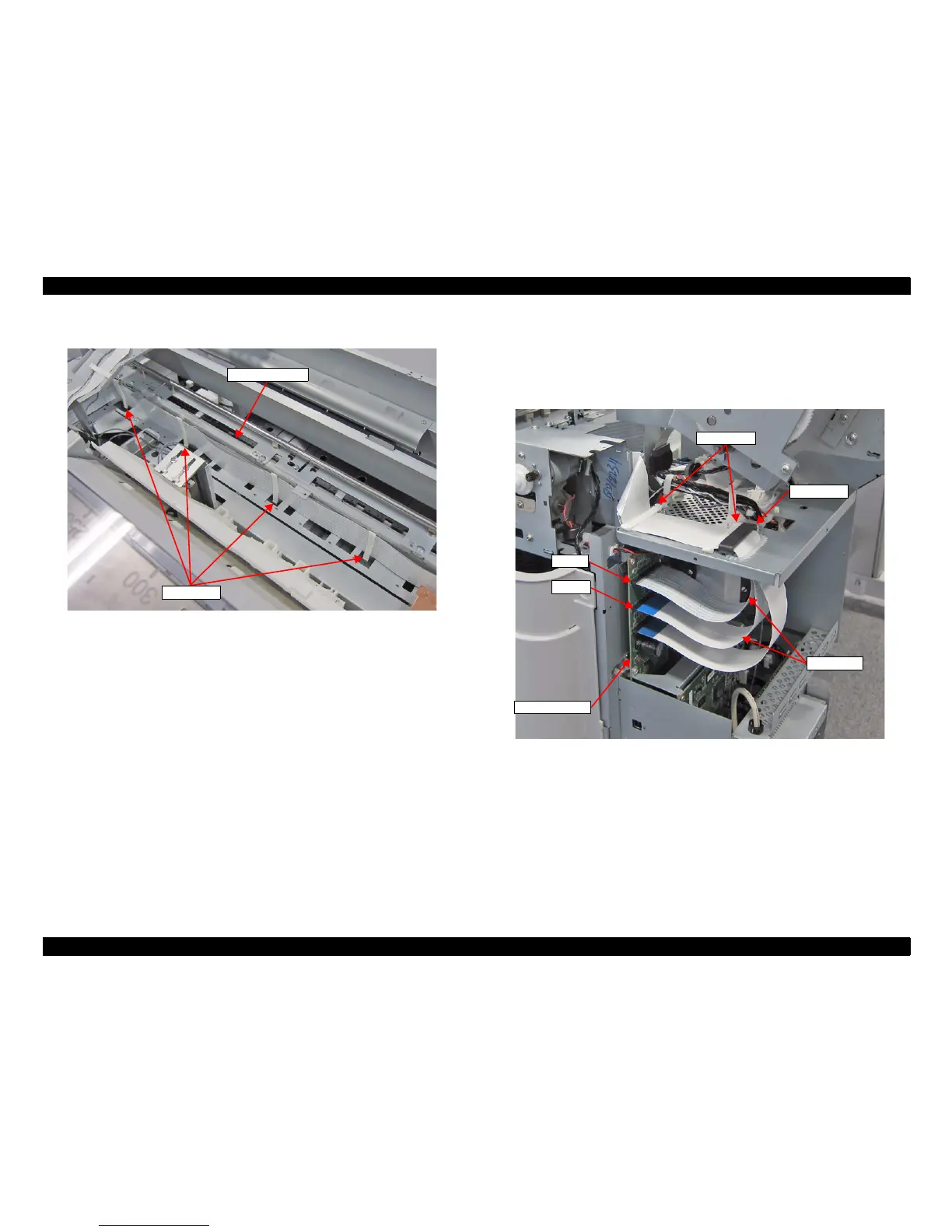

22. Remove the four FFC clamps on the side of the Rear Main Frame.
Figure 3-66. Releasing the FFC (2)
23. Remove the two FFC clamps from the top of the Board Box.
24. Disconnect the HAED FFC from the connectors (CN101, CN102) of the MAIN
BOARD, and pull them from the hole of the Board Box.
25. Pull out the HEAD FFC from the Ferrite Core on the Board Box.
Figure 3-67. Removing the HEAD FFC (Around the Board Box)
Rear Main Frame
FFC Clamps
MAIN BOARD
CN101
Ferrite Core
FFC Clamps
HEAD FFC
CN102
