SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 140
Confidential
20. Remove the CR TIMING BELT from the Belt Holder on the back side of the CR
UNIT.

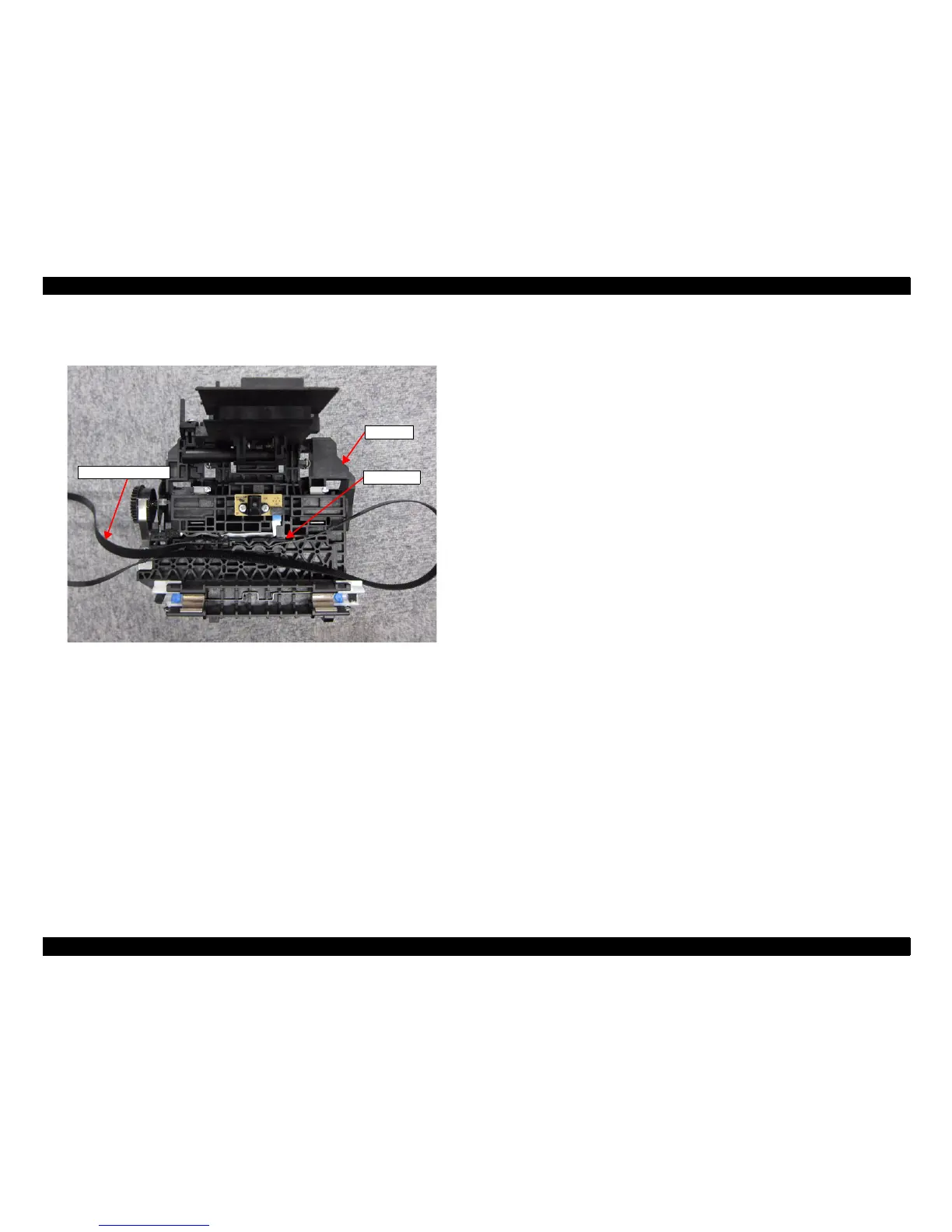

Figure 3-84. Removing the CR TIMING BELT
CR TIMING BELT
CR UNIT
Belt Holder
