Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 142
Confidential
15. Disconnect the cable of the CR MOTOR from the connector (CN19) of the MAIN
BOARD.
16. Release the cable from five clamps.

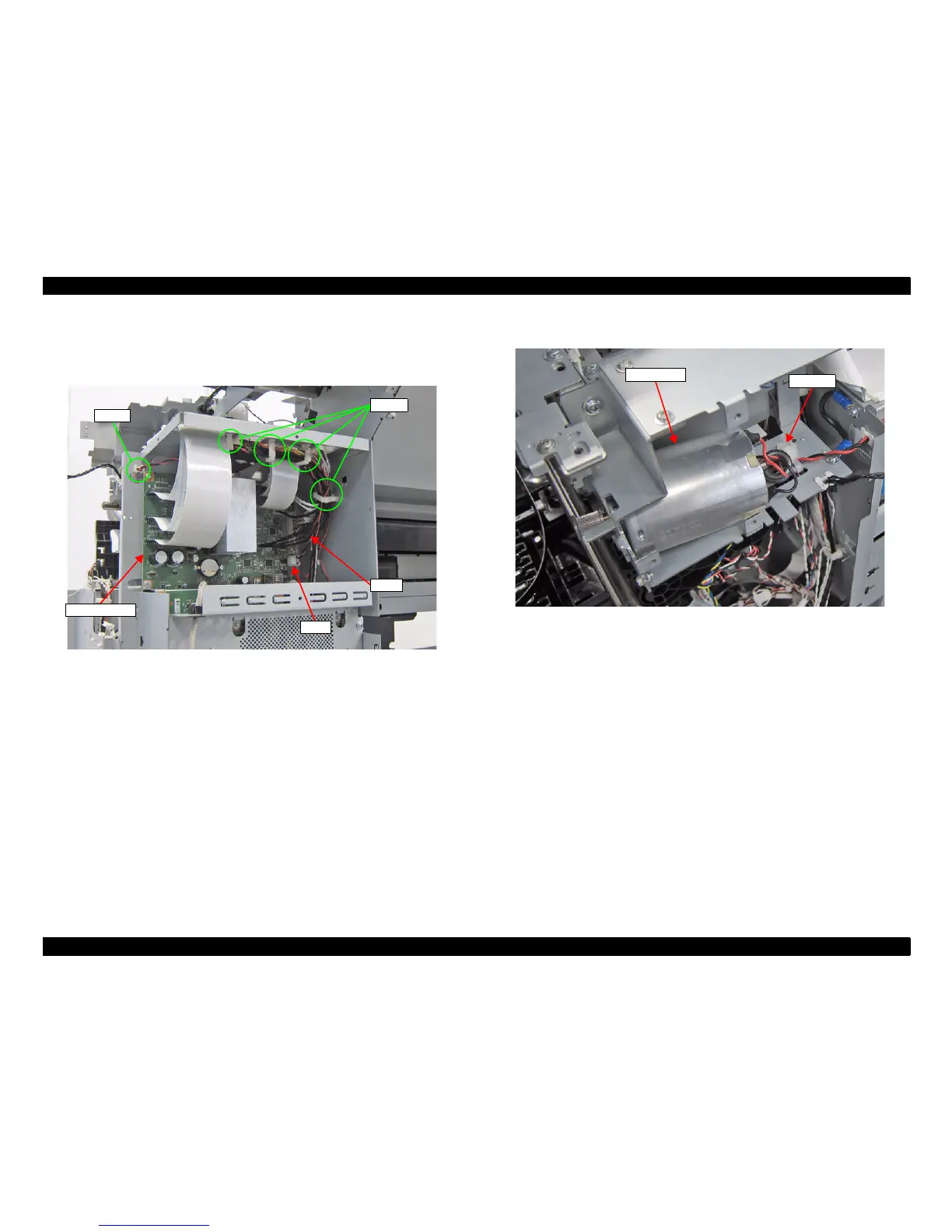

Figure 3-87. Releasing the Cable
17. Cut the cable tie that secures the cable, and remove the CR MOTOR.
Figure 3-88. Removing the CR MOTOR
MAIN BOARD
CN19
Cable
Clamp
Clamps
CR MOTOR
Cable tie
