Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 145
Confidential

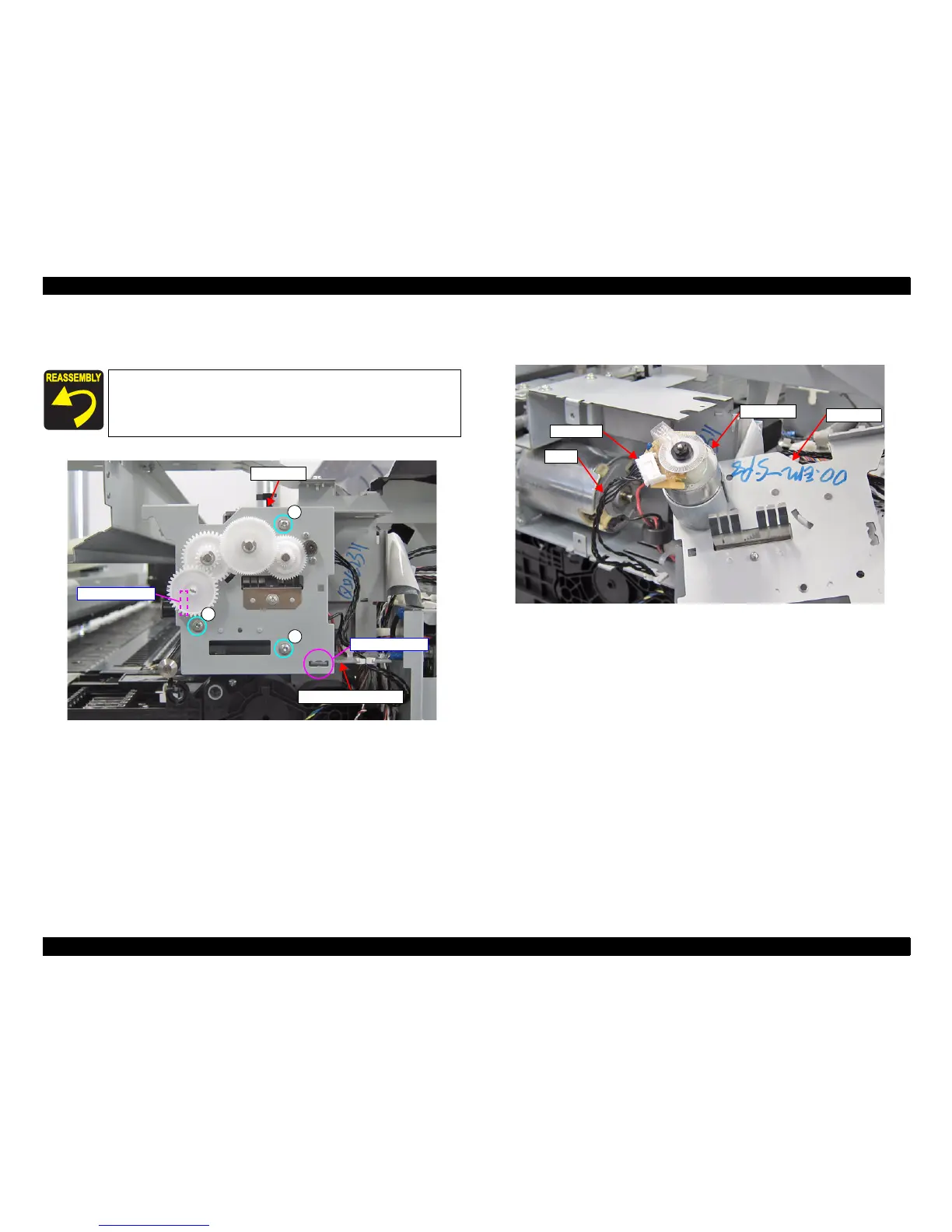

8. Remove the three screws that secure the APG UNIT.
C) Silver M3x6 S-tite screw with built-in washer: 3 pcs
Figure 3-91. Removing the APG UNIT
9. Disconnect the cable from the connector of the APG Motor, and remove the APG
UNIT.
Figure 3-92. Removing the Cable
Pay attention to the positioning points (See Figure 3-91).
APG UNIT
C
C
C
CR MOTOR HOLDER
Positioning point
Positioning point
Connector
Cable
APG Motor
APG UNIT
