13. Remove the screw that secures the Rear Cover.
A) Silver M3x8 S-tite screw with built-in washer: 1 pcs
14. Disengage the boss of the Rear Cover, and remove the Rear Cover.

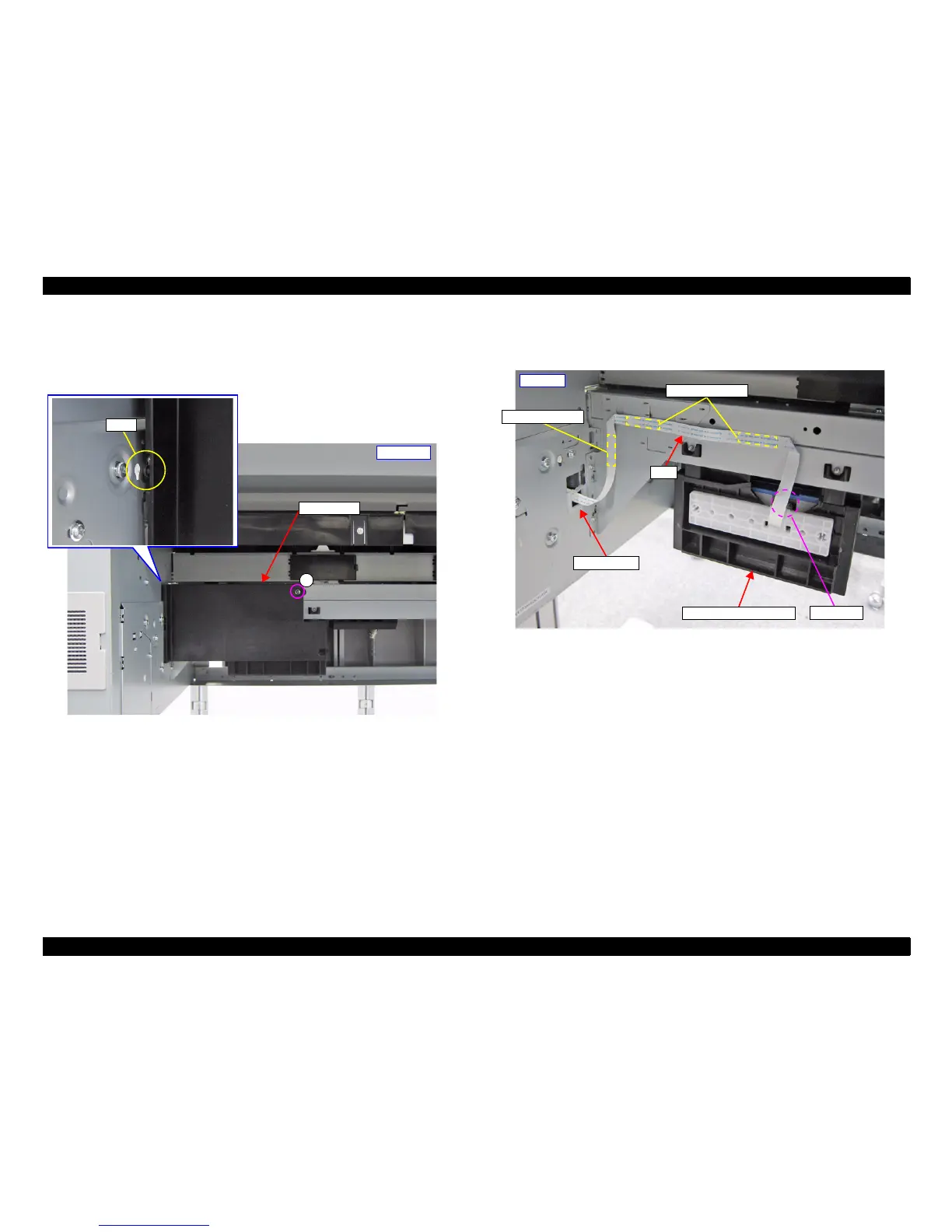

Figure 3-97. Removing the Rear Cover
15. Disconnect the FFC from the connector of the Maintenance Box Holder.
16. Peel of the FFC from the frame and insert it into the edging saddle.
Figure 3-98. Releasing the FFC
Boss
Rear Cover
A
Back side
Maintenance Box Holder
FFC
Edging saddle
Connector
Back side
Double-sided tape
Double-sided tape
