Epson SC-T7000 series

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 160
Confidential
20. Disconnect the FFC from the IM SENSOR, and remove the IM SENSOR.

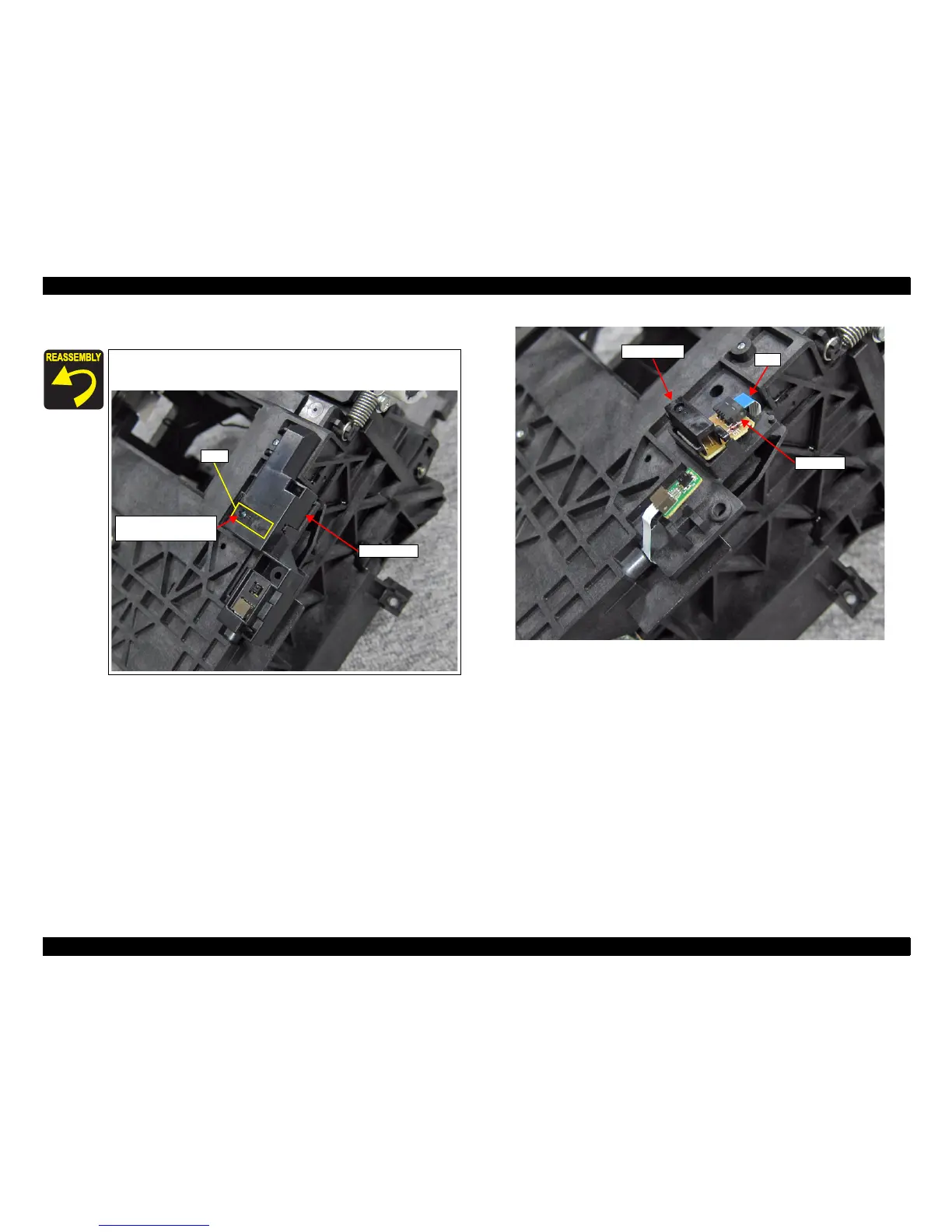

Figure 3-112. Removing the IM SENSOR
Make sure that you can see the light emitter/receiver of the IM
SENSOR through the hole on the Sensor Cover.
Sensor Cover
IM SENSOR
(Light emitter/receiver)
Hole
IM SENSOR
FFC
Connector
