Epson SC-T7000 series User Manual

SC-T7000 series/SC-T5000 series/SC-T3000 series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 174
Confidential
11. Remove the Plastic washer of the Combination gear 29, 59.2, and pull the
Combination gear 29, 59.2 slightly toward you.
12. Loosen the screw that secures the Spur gear 43, and pull the Spur gear 43 slightly
toward you.

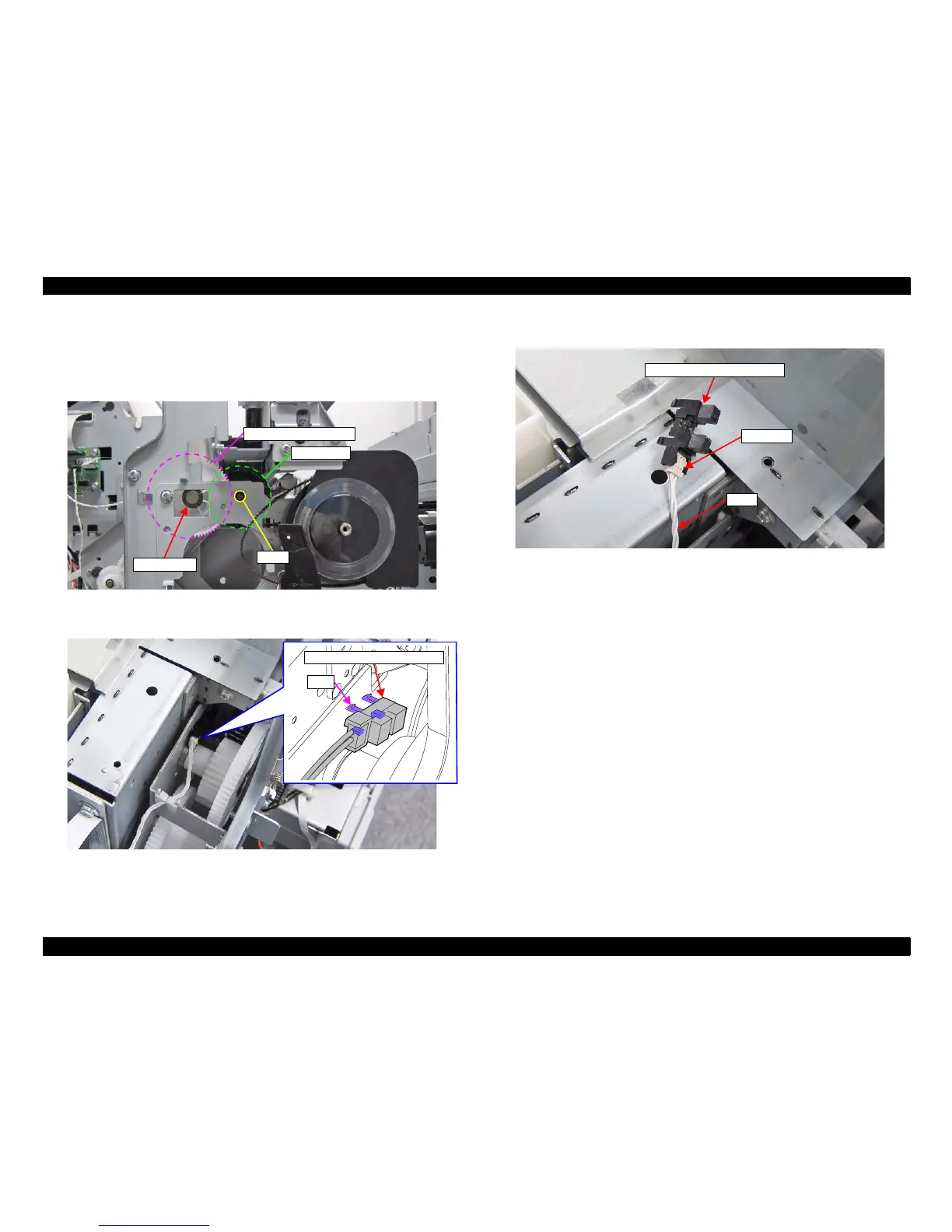

Figure 3-130. Removing the PRESSURE ROLLER SENSOR (1)
13. Disengage the hooks, and remove the PRESSURE ROLLER SENSOR.
Figure 3-131. Removing the PRESSURE ROLLER SENSOR (2)
14. Disconnect the cable from the PRESSURE ROLLER SENSOR.
Figure 3-132. Removing the PRESSURE ROLLER SENSOR (3)
Combination gear 29, 59.2
Spur gear 43
Plastic washer
Screw
PRESSURE ROLLER SENSOR
Hook
PRESSURE ROLLER SENSOR
Cable
Connector
